Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 618UL /Rotax 618 Ul Engine Ducati Magneto - Generator 12V 200W | Starting Pulley Parts
Main Image

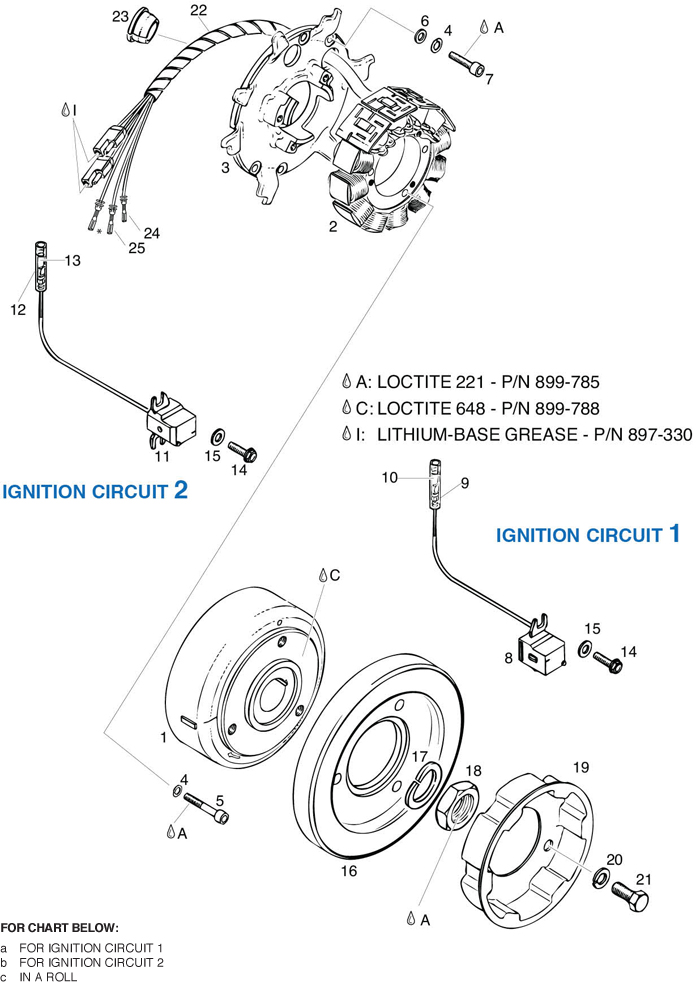

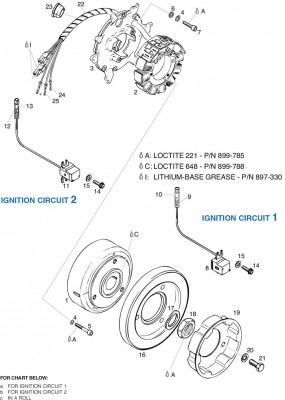

Rotax 618 Ul Engine Ducati Magneto - Generator 12V 200W | Starting Pulley Parts

1 Review 0 Answered Questions
From $0.13 to $567.00
Prices below incude GST
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Status Part Number Description Qty PN Price Buy
1N.A.996-827MAGNETO FLYWHEEL P12W2001
15-04419
$623.70
Quantity
4945-750LOCK WASHER A55
07-00435
$2.05
Quantity
5N.A.841-506ALLEN SCREW M5X353
15-01185
$0.94
Quantity
6927-571WASHER 5,32
15-02995
$0.14
Quantity
7N.A.840-515ALLEN SCREW M5X182
15-01123
$0.68
Quantity
9, 12964-072INSULATION SHEATH1
15-03812
$1.56
Quantity
10, 13964-067FASTON CONNECTOR 3,961
15-03811
$1.56
Quantity
14941-925TAPTITE SCREW M5X164
15-03287
$0.87
Quantity
15827-800WASHER A 5,5 DIN 69024
15-00860
$0.30
Quantity
17945-759LOCK WASHER 221
15-03367
$1.21
Quantity
18842-239HEX. NUT M22X1,51
15-01245
$9.24
Quantity
19852-410STARTING PULLEY1
15-01589
$30.57
Quantity
21940-591HEX.SCREW M8X203
15-03205
$0.83
Quantity
23960-289CABLE GROMMET 20,5/131
15-03643
$6.82
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Rotax 618 ul engine Ducati magneto-generator 12v 200w, starting pulley parts.

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes







THIS ITEM CAN USE 11-12316(SOLD PER FOOT)
No.
Status
Part No.
 Descriptions
QTY
PRICE
22
SPIRAL HOSE 70 MM
1
*
