Home / Rotax Engines & Parts / Parts / 912/914 Series / Crankcase, Camshaft /Rotax 912 | 914 Ul Engine Crankcase - From S/N: 14.0000
Main Image

Rotax 912 | 914 Ul Engine Crankcase - From S/N: 14.0000

0 Reviews 0 Answered Questions
From $2.10 to $13.96
Prices below incude GST

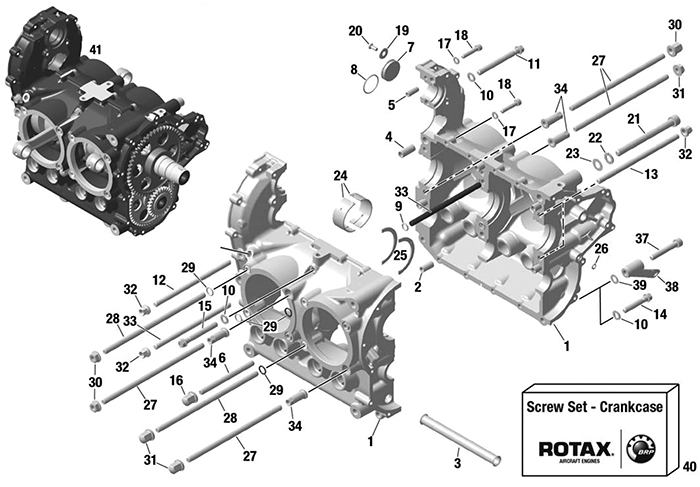

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. 912 UL Qty Req. 912 ULS Qty Req. 914 UL PN Price Buy
8430-061O-RING 26.7X1.81a1a1a
15-08744
$4.02
Quantity
9850-902 O-RING 9X2222
15-01484
$7.21
Quantity
14940-071HEX. SCREW M8X45 / TORQUE: 30 NM / 22 FT.LB. (SEE NOTE BELOW) 222
15-03167
$3.80
Quantity
16842-471COLLAR CAP NUT M8111
15-01258
$15.36
Quantity
19227-280THRUST WASHER111
15-00042
$5.51
Quantity
30842-610 HEX. NUT M8 / TORQUE: 10 NM +180° / 90 IN.LB +120°888
15-01265
$2.98
Quantity
39926-401WASHER 8.4/15/1AR
15-02981
$2.31
Quantity
39926-402WASHER 8.4/15/1.5AR
15-02982
$2.45
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a Only for model 2 and 4
  • b Tolerance group “C” 1.820 -1.829 mm
  • c Tolerance group “D” 1.830 -1.839 mm
  • d See Overhaul Manual of the respective engine type, current issue.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
1
893-862
 CRANKCASE SET
1d
1d
1d
2
842-655
 HELI-COIL THREAD INSERT M8X20
2
2
2
12
840-092
 STUD M8X1X153
1d
1d
1d
13
840-102
 STUD M8X1X163
2d
2d
2d
31
840-102
 COLLAR CAP NUT M8 TORQUE / 90 IN.LB +120°
2d
2d
2d
32
842-860
 COLLAR NUT M8
8d
8d
8d
33
840-132
 STUD M(X1X138)
3d
3d
3d
34
929-117
 THREAD SLEEVE M8X1
8d
8d
8d
38
xxx-xxx
 SEE CHAPT. 78-10-00 FIG. 3
8k
8k
8k
41
300091202 ENGINE BLOCK
1
41
300091401
 ENGINE BLOCK
1
1
