Home / Rotax Engines & Parts / Parts / 912/914 Series / Ignition Housing /Rotax 912 | 914 Ul Water Pump With Drive

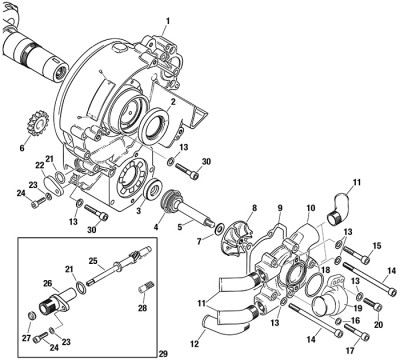

Main Image

Rotax 912 | 914 Ul Water Pump With Drive

1 Review 0 Answered Questions
From $0.90 to $12.50
Prices below incude GST

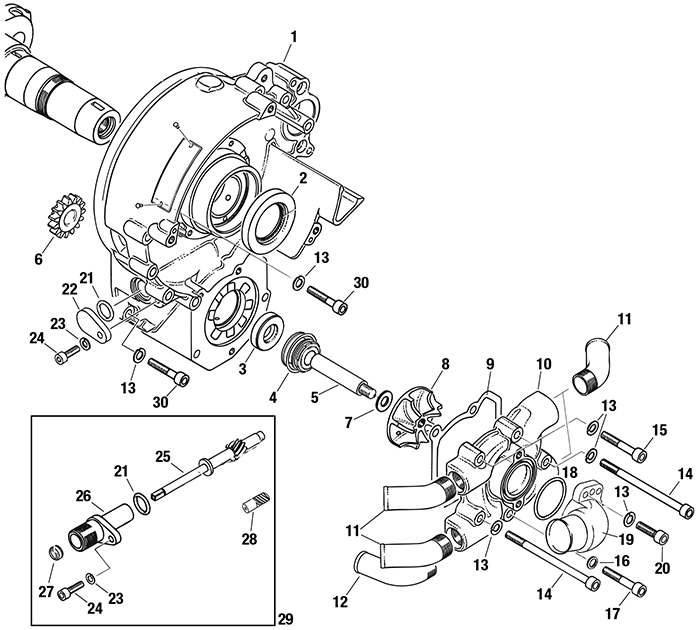

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. 912 UL Qty Req. 912 ULS Qty Req. 914 UL PN Price Buy
7926-274WASHER 8.2/12.5/1.5 1ac1ac1ac
15-02979
$8.66
Quantity
14241-482ALLEN SCREW M6X90222
15-00180
$1.64
Quantity
15241-814ALLEN SCREW M6X35222
15-00187
$1.34
Quantity
17241-813ALLEN SCREW M6X35, STAINLESS1a1a1a
15-00188
$0.99
Quantity
20241-935ALLEN SCREW M6x20222
15-09771
$1.35
Quantity
21230-880O-RING 13.3-2.4111
15-00080
$5.05
Quantity
23945-830LOCK WASHER A5111
07-00435
$2.05
Quantity
27930-500OIL SEAL 6X11X3/4.5111
15-03033
$13.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Stainless
  • b   Optional for engine suspension frame
  • c   The rotary seal has been introduced as from following S/N. Up to this S/N the rotary seal
         has to be exchanged together with part no. 926-274 / 922-224: 912 A: 4,410.366 / 912
         F: 4,412.791 / 912 S: starting with serial production / 912 UL: 4,403.283 / 912 ULS: starting with serial      production / 914 F: 4,420.157 / 914 UL: 4,417.783
  • d   For mech. rev counter drive without centering bore for pick up. For engines without mech. rev. counter      drive part no. 230-880, 945-830 and part no. 840-514 has to be mounted additional.
  • e   See therefore: SB-912-037 current issue / SB-914-023
  • f    See Maintenance Manual Heavy of the respective engine type, current issue
  • g   Without processing for mech. rev counter drive
  • h   Will be delivered in circle shape


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
