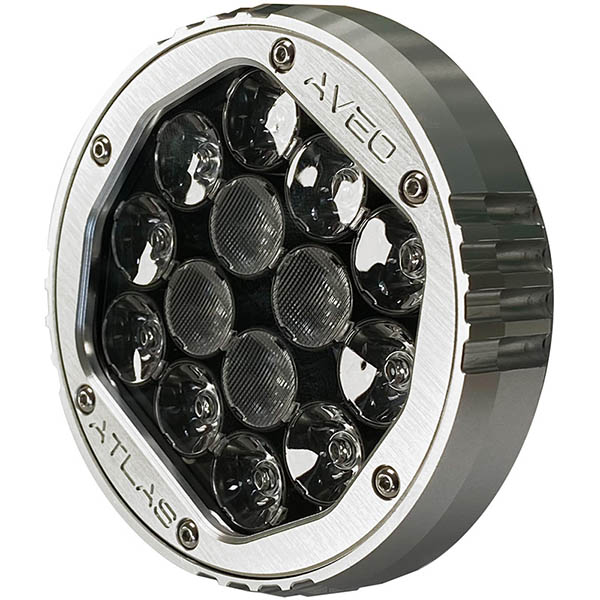

Aveo Atlas NXT - O Holder Landing / Taxi / Wigwag Light Non TSO
$969.10/Each
Price Includes GST
Part# 11-20434
MFR Model# AVE-AXTTLFW-D04
MFR Model# AVE-AXTTLFW-D04
Overview
Atlas NXT™ is a high powered Landing and Taxi LED light used in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft.
|
Specifications

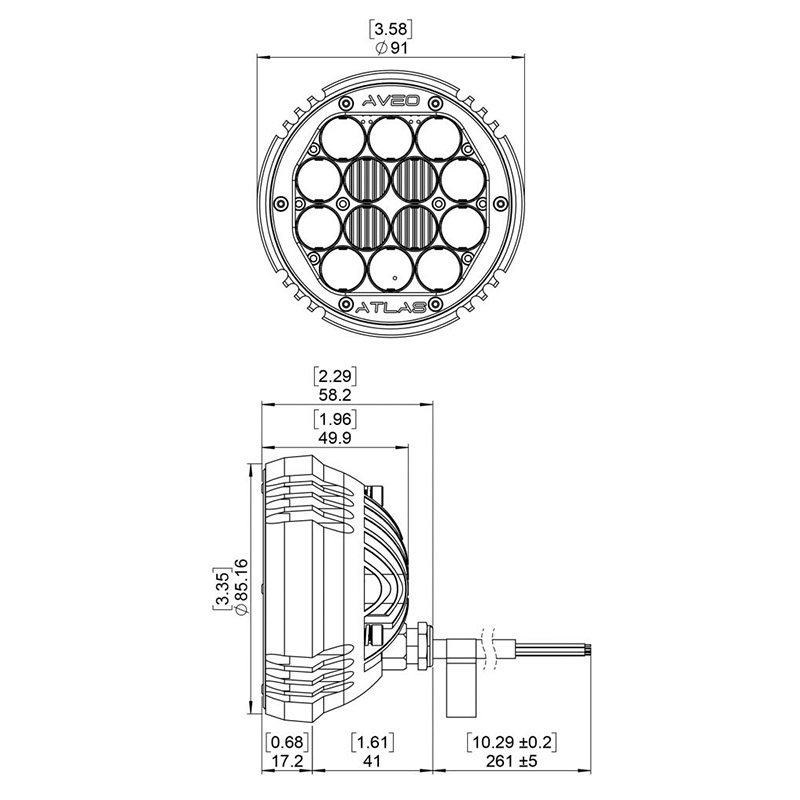

| Dimensions (mm): | 91 mm x 49.9 mm |
|---|---|
| Dimensions (inches): | 3.58“ x 1.96“ |
| Weight: AVE-AXTTLFW-D01 AVE-AXTTLFW-D02 AVE-AXTTLFW-D03 | 323 g / 0.71 lb 359 g / 0.79 lb 344 g / 0.76 lb |
| Operating Voltage Range: | 9 – 36 V DC |
| Input Current (Landing): | 2.5 A @14V 1.3 A @28V |
| Input Current (Taxi): | 1 A @14V 0.55 A @28V |
| Input Power (Landing): | 35 W @14V 36.4 W @28V |
| Input Power (Taxi): | 14 W @14V 15.4 W @28V |
| Ambient Temperature: | from -55°C to +85°C from -67°F to +185°F |
| Transient Voltage: | 80 V max |
| Over-Voltage Lockout: | 36 V DC, not less |
| Landing Lens Angle: Taxi Lens: | 9° 12° x 30° |
| Reverse Polarity Protection: | Yes |
| Overheat Protection: | Yes (temperature dependent decrement of intensity, see note below) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
| Useful Life: | not less than 15,000 aircraft flight hours |
