ATS Deluxe Hand / Bench Rivet Squeezer Kit
MFR Model# 5022-DX
Overview
|

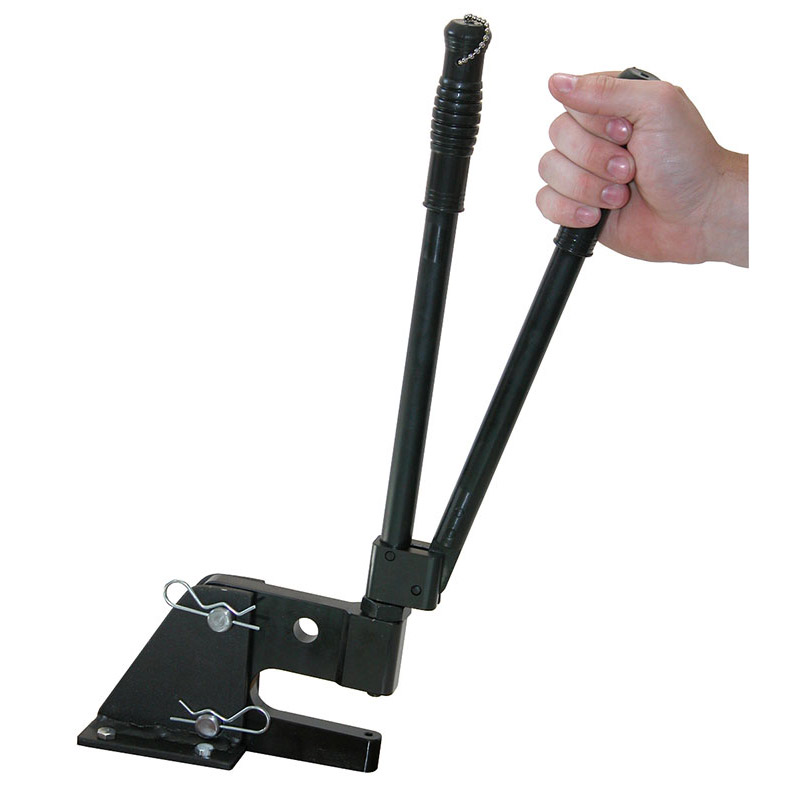

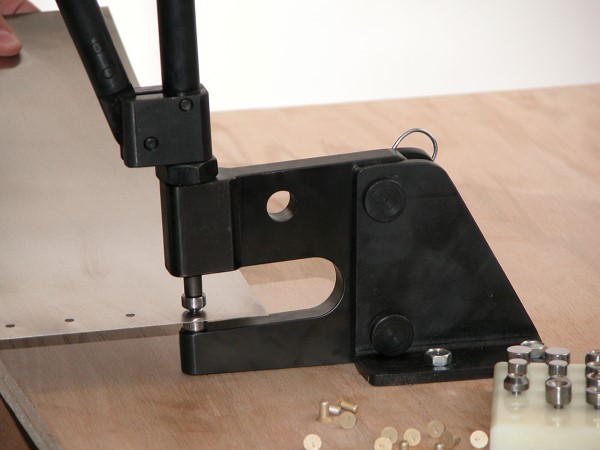

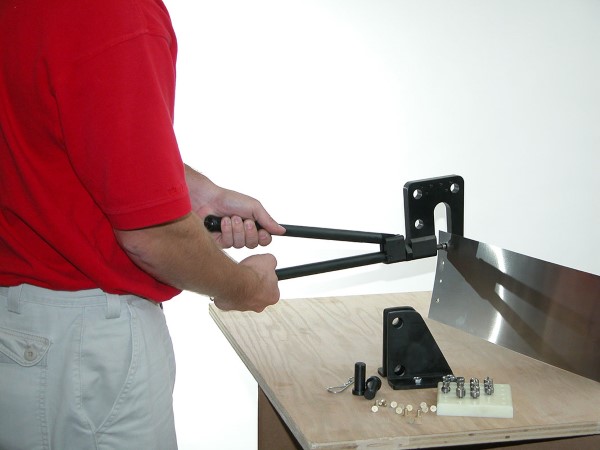

Hand riveters are good for their portability, but the biggest complaint is that they are exhausting when you have serious riveting to do. The answer to this was a bench squeezer, but at hundreds of dollars, they are beyond most of our budgets -- until now! The new ATS Hand/Bench Rivet Squeezer gives you the best of both worlds at a price you can afford. It's a hand squeezer that converts to a free-standing bench squeezer in under 10 seconds! Just pin it into its cradle and you have a solid bench riveter; and when you need to use it as a hand riveter, simply unpin it. The ATS Hand/Bench Rivet Squeezer has the same design features as our popular 5022 squeezer, including a 360 degree swivel head, and an adjustable ram. It uses all of the same yokes and accessories as the 5022, and will squeeze up to 3/16" aluminum, or 5/32" steel rivets. |
Features
- 1-1/2 & 3" reach with 1-1/4" opening
- Yoke swivels a full 360 degrees and locks into any position for greater versatility
- 5/8" adjustable ram eliminates the need for shims
- 21" Overall length

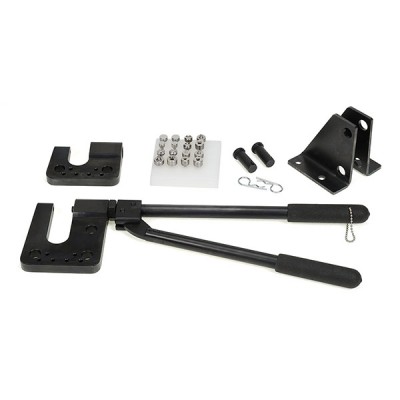

In The Box
- 5022-3 - 3" Hand Squeezer
- RS1009A - 1-1/2" Squeezer Head
- RS-BK - Bench Conversion Kit
- 4703-2 - 3/32" Squeezer Set
- 4704-2 - 1/8" Squeezer Set
- 4705-2 - 5/32" Squeezer Set
- 4706-2 - 3/16" Squeezer Set
- 4710-2 - Flush Squeezer (1/2")
- 3710-2 - Flush Squeezer (3/8")
- 4263DP-2 - 3/32" Dimple Die
- 4264DP-2 - 1/8" Dimple Die
- 4265DP-2 - 5/32" Dimple Die
- 4266DP-2 - 3/16" Dimple Die

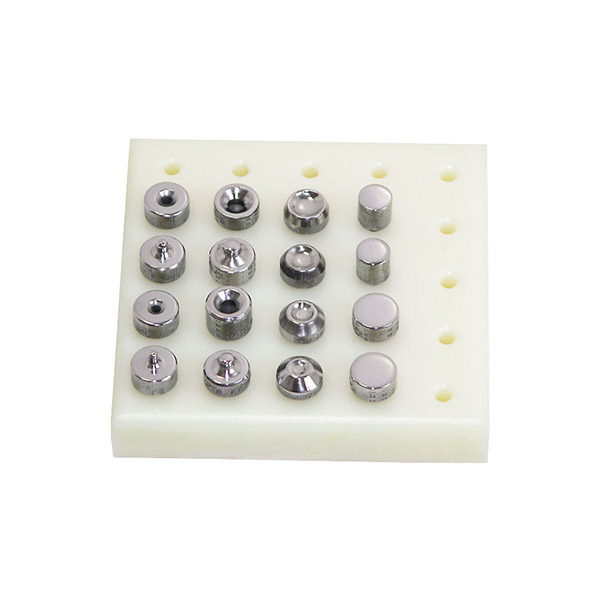

- 6785 - Squeezer Set Holder
Reviews
Excellent product
Verified Purchase
ATS Dlx Hand/Bench Rivet Squeezer
Verified Purchase
ATS Dlx Hand/Bench Rivet Squeezer
Works good very pleased
Verified Purchase
ATS Dlx Hand/Bench Rivet Squeezer
I really appreciate this can be set up as a bench mounted tool. Very ergonomic.
Verified Purchase
ATS Dlx Hand/Bench Rivet Squeezer
everything is fine but I wish there were more instructions on usage.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this is adjustable and does not require a shim.
Yes, this comes with flush rivet sets.
Per the manufacturer: No.
