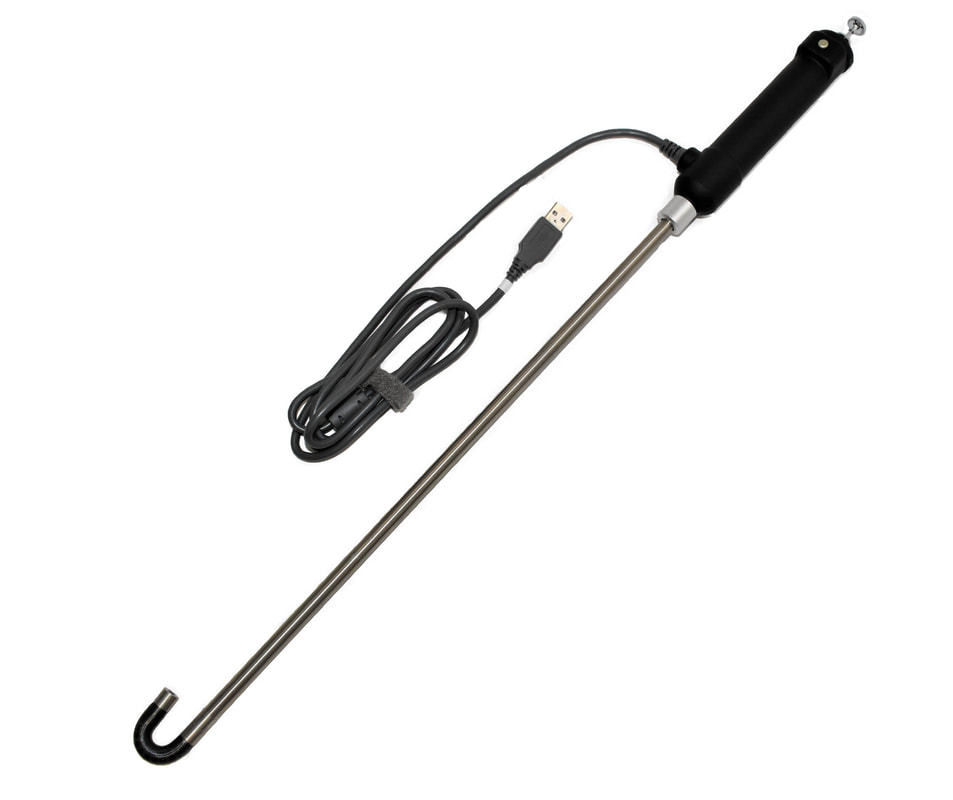

Vividia Ablescope VA-400 V5 USB Borescope

26 Reviews 2 Answered Questions
$274.98/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-04891
MFR Model# VA-400

Overview

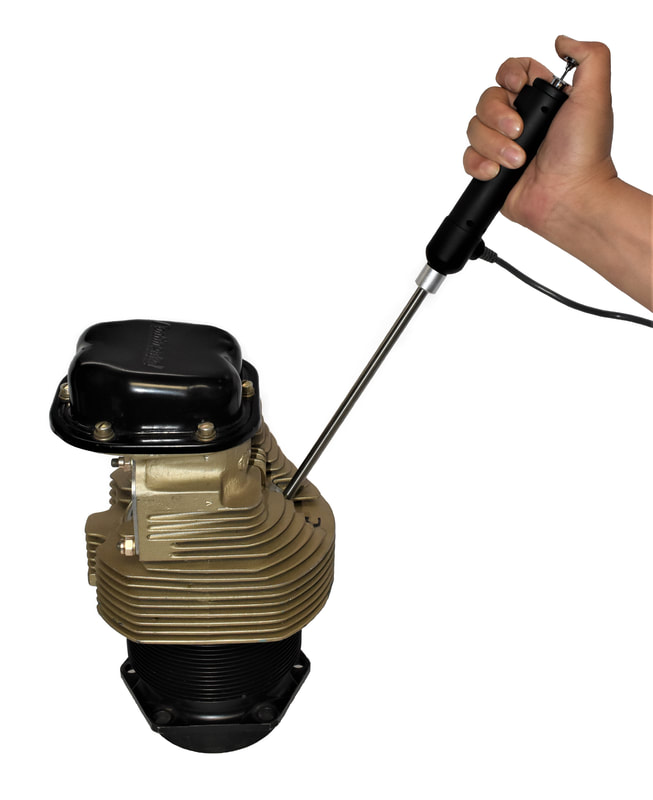

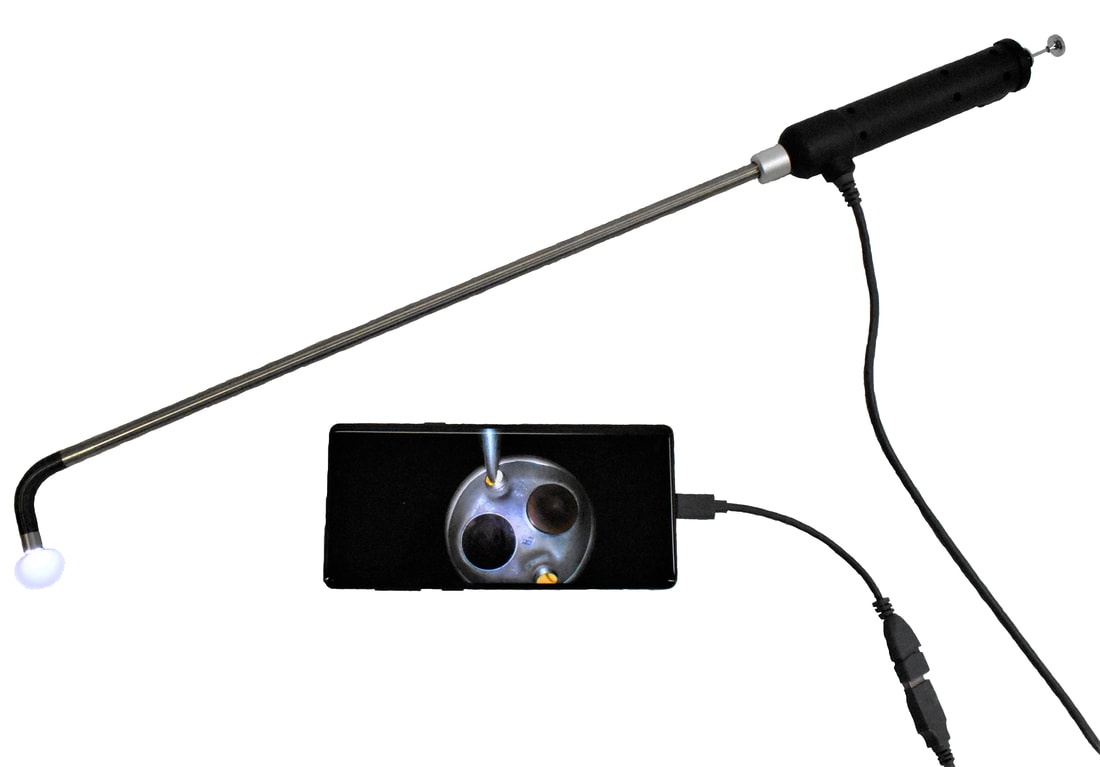

Connect this borescope to your computer or tablet (optional, sold separately) with attached USB cable to perform a detailed visual inspection in hard-to-reach areas. The 180-degree articulating 8.5mm diameter probe offers a panoramic view of the area being inspected. With 1M pixel CMOS sensor, and six built-in LEDs for illumination, this product allows you to view images, take standard photos, and record videos. This borescope is designed for the inspection of the carbon residue inside of cylinder especially the surface of the intake valve. It is perfect for 'looking backside' after the scope goes into a narrow space.

Features

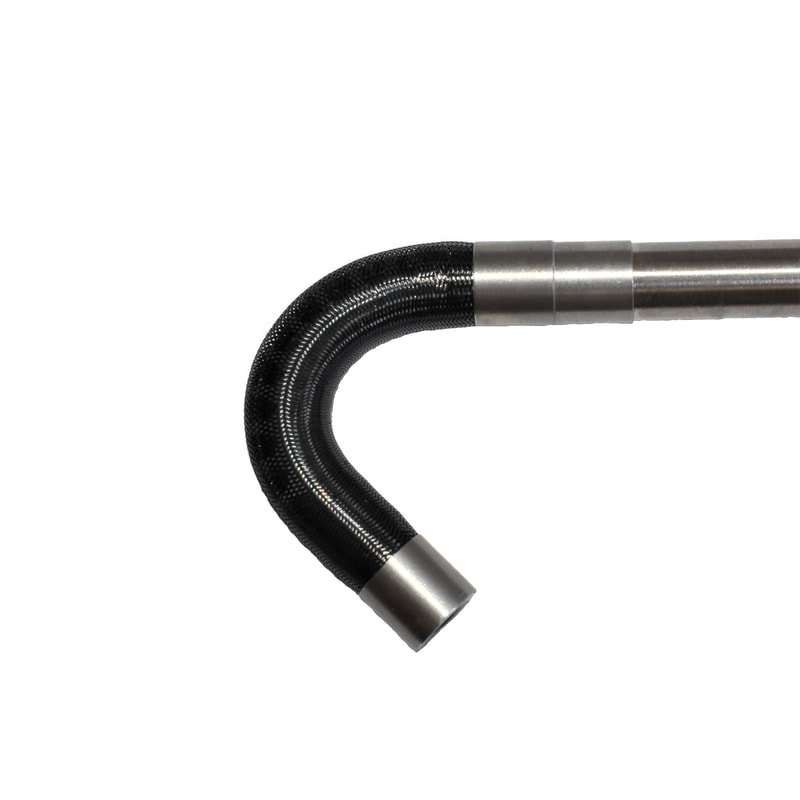

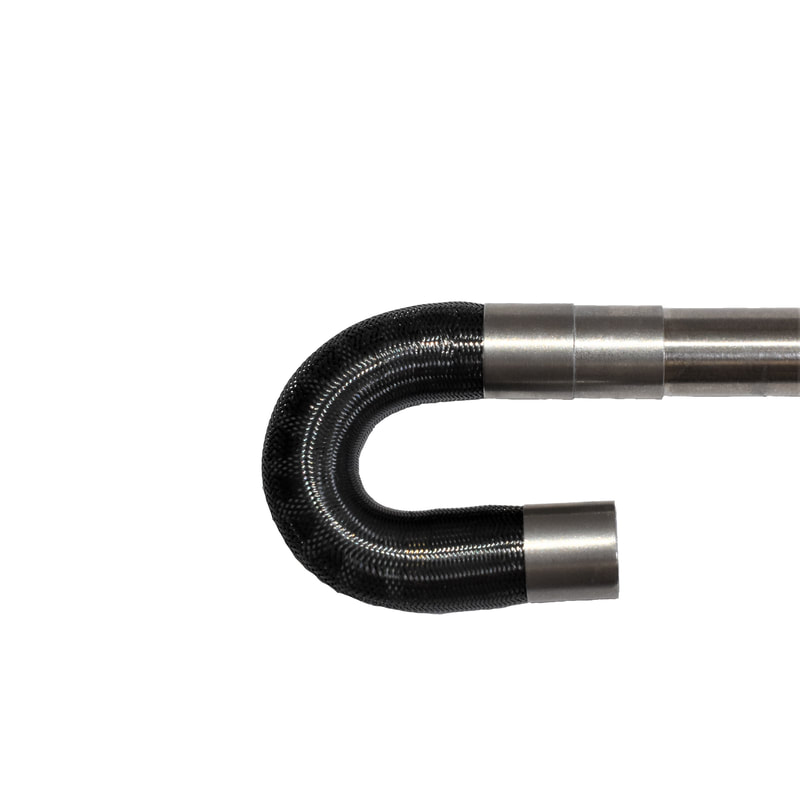

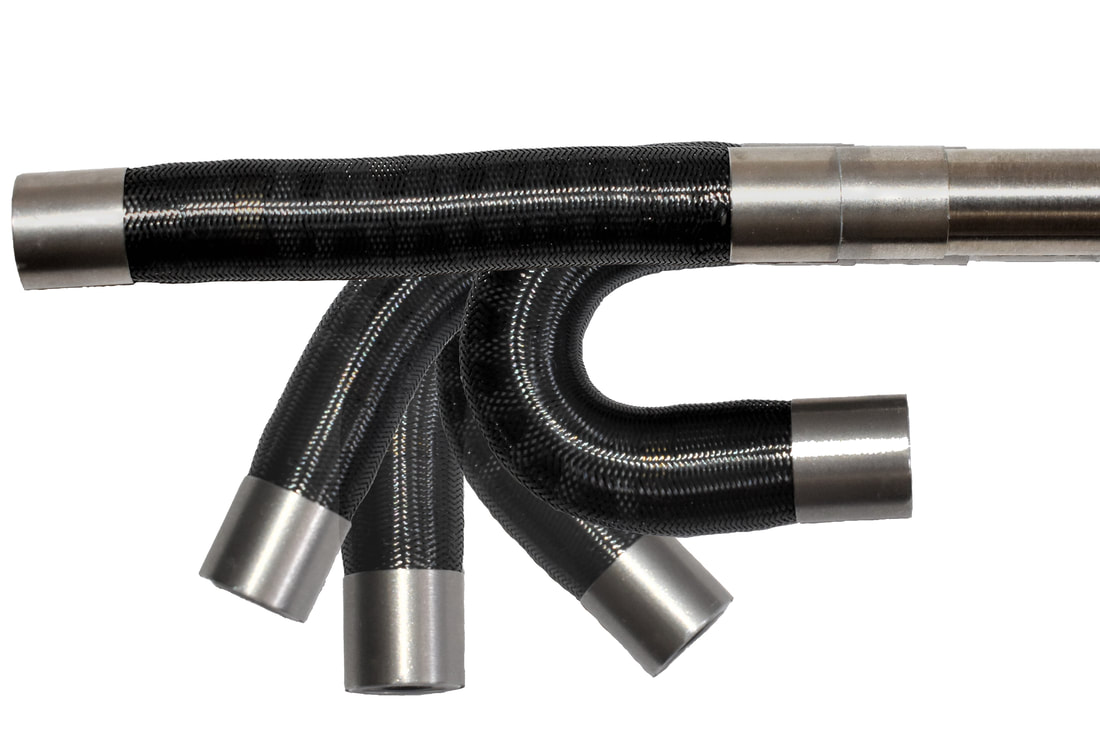

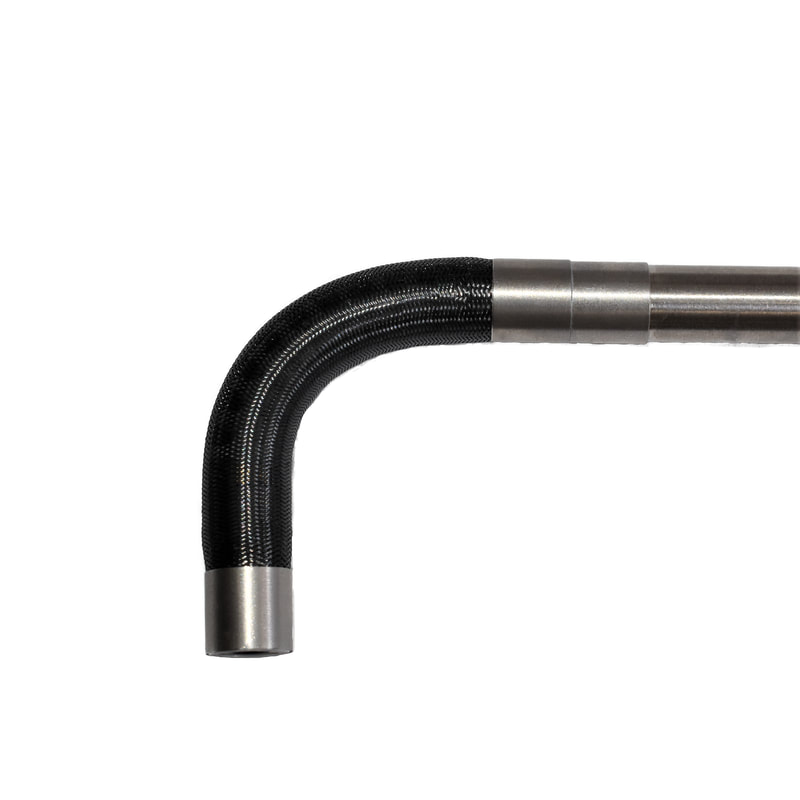

  • Articulation bendable angle: 0° to 180° continuously adjustable. You can inspect the back side of a closed dark compartment
  • Very easy to operate. Just push down the release button by bending the thumb to adjust the articulation angle
  • Very small bending radius: 30mm
  • Illumination: 6 white LED lights built-in
  • High resolution image with CMOS sensor
  • Focal Distance: 0.5cm – 100cm, fixed focus with broad focus range
  • Power supply: by USB port of PC, tablet, or phone
  • ​

Specifications

  • Sensor: high-quality CMOS sensor
  • Still Image Resolution: 1280x720 pixels - Format: JPG
  • Video Resolution: 1280x720 pixels - Format: AVI - Frame Rate: 30FPS
  • Optical lens view angle: 120°
  • Focus range: 5mm to infinity
  • Probe diameter: 8.5mm
  • Probe length: 42cm (16.5”)
  • PC Interface: USB 2.0
  • USB Cable Length: 200cm
  • Compatible systems: Windows 10/8/7/XP/Vista; MacOS; Chromebook; Android 4.0 and above

In The Box

  • VA-400 v5 Rigid Borescope
  • OTG cables
  • Aluminum Toolbox
  • User manual

Videos

https://www.youtube.com/embed/FacZkRRsSpw
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Very good scope to use, saves us a lot of time and money.

Barry S Verified Purchase

Vividia Ablescope Va-400
November 9, 2024

Great value for the money! Used it to inspect valves.

Wayne S Verified Purchase

Vividia Ablescope Va-400
September 12, 2024

Great product, but the Windows application keeps crashing. The laptop that I am using has 20gigs of RAM, so I dont thing I am short on that. Do wish they would take a serious look at that.

Sarosh P Verified Purchase

Vividia Ablescope Va-400
June 22, 2024

I purchased the original Ablescope model several years ago and used it a lot for cylinder borescoping. The picture quality gradually deteriorated, perhaps from the heavy usage, so I recently purchased the newest model 5. It is better than the original ever was. Im very happy with this new version.

Bob K Verified Purchase

Vividia Ablescope Va-400
June 7, 2024

The new ablescope 400 is much improved over our 5 year old version. Highly recommended

Allan M Verified Purchase

Vividia Ablescope Va-400
March 9, 2024

I second all the 5 star reviews--this is a great product. However, there was an issue with the camera turning its self off for no apparent reason while I was doing an inspection. It got so bad that I couldnt even get it into the cylinder with out to turning off. I contacted Oasis Scientific customer support and they immediately got back to me with this: We find that dry and cold weather, and carpeted floors will cause the camera to shut down at a trade show. We usually spray a little bit of water around the area to greatly reduce the incident. Well, I am in a cold dry hangar and happen to have some carpet scraps on the floor. I attached a small ground wire between the engine and the scope which solved the problem without the need to, spray water around. Ha! Bruce E

Evans M Verified Purchase

Vividia Ablescope Va-400
November 24, 2023

Great product

Richard H Verified Purchase

Vividia Ablescope Va-400
October 17, 2023

Works really well

Natron A Verified Purchase

Vividia Ablescope Va-400
June 27, 2023

Borescope has been used for annual inspection, review of several Service Bulletins and recording difficult to see and document areas of the plane. Saved hrs of work, and easy to use with a Win10 laptop. Very good light and resolution. Good value!

Gary C Verified Purchase

Vividia Ablescope Va-400
April 28, 2023

Gives nice clear picture of the interior of the cylinders.

Barry M Verified Purchase

Vividia Ablescope Va-400
April 11, 2023

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this the latest version with the upgraded LEDs, High Resolution Camera, Steel Spine, etc?

Yes our stock is the current model.

Q: Does this version have the locking device to keep the head in position?

Yes it does.
