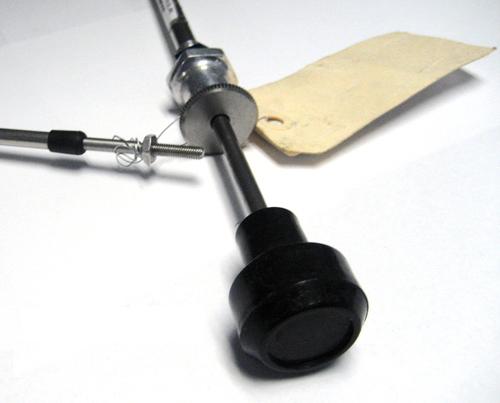

A-800 Vans Control Cable For RV Aircraft

$273.85/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-01436
MFR Model# VANS A-800

Overview

Specify knob color (black, blue, red), overall length of control (from under panel nut to end of control) and stroke (2-1/4", 2-1/2"). For custom stroke (2-3/8", 2-3/4", 3-1/2") add $45 to cost of control.

Made in USA

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is different between this RV specific cable and your standard A-800 cable?

The RV cable can be ordered at custom lengths and strokes.

Q: RE: 05-01436 VANS A-800 CUST. CONTROL CABLE. (Throttle Cable) Question- Does the 10-32 Rod End have a 7/16-20 Threaded fitting above it to mount the housing to an engine bracket?

All ACS Products Vans controls do have a bulkhead end, 7/16-20 thread, for mounting.

Q: How is the cable measured for custom length? In the shortest, longest, or mid stroke configuration? Are the measurements between the panel nut and the tip of the 10-32 threaded portion?

It is measured from the panel nut to the tip when the control is pushed in fully.
