Amsafe Restraint System (Soars)
MFR Model# K7336
Overview
|
The State of the Art Restraint System (SOARS) is a universally adjustable lapbelt airbag restraint system designed to mitigate head and torso injury in aircraft crash conditions. It is STC eligible for installation in over 600 Part 23 aircraft, as well as all experimental aircraft. With over a billion hours of logged service, AmSafe Airbag Systems are utilized in commercial aircraft, business jet and turboprop aircraft as well as general aviation to protect pilots, co-pilots and passengers. SOARS is an affordable, yet significant enhancement for general aviation occupant protection. Each SOARS kit includes a complete airbag restraint system for both the Pilot & Co-Pilot seats, replacing the original pilot and co-pilot 2 or 3-Point standard restraints. Designed to ProtectContinually evolving and advancing aviation occupant safety requirements need the most advanced restraint systems to meet compliance. The AmSafe Seatbelt Airbag System is used in commercial aircraft to protect occupants from impact with bulkheads, monitors and forward seat structure. Business Jet and high end turboprop aircraft use the seatbelt airbag system to protect pilots, co-pilots and passengers.The SOARS system can be used in general aviation aircraft in the pilot, co-pilots seat to protect occupants from impact with glare shields, instrument panels and control yokes, during a significant longitudinal deceleration or impact. The AmSafe airbag system maintains an extremely high reliability standard against inadvertent deployment and failure to deploy when in operation. Meet regulationsWhen the sensors detect an impending incident, the seatbelt airbag deploys up and away from the seated passenger – and provides protection to the head, neck and torso. The AmSafe Seatbelt Airbag helps meet the 14 CFR Part 23 Normal Category requirements for pilots and passengers general aviation pilot/co-pilot seats. The system provides the additional safety and improved occupant protection needed in a survivable impact. |
Features
- Universally adjustable lapbelt airbag restraint designed to accommodate replacement of standard aircraft restraints using existing anchor points
- Contains integrated Push-to-Test (PTT) system diagnostics contained in the Electronics Module Assembly that houses the crash sensor and system power supply
- Designed to mitigate head and torso injury in aircraft crash conditions Part 23 Normal Category Aircraft
- Meets FAR/CS/23.785 delethalization requirements
- Meets stringent head, neck protection requirements
- Installed by a licensed A & P, with Form 337
- Maintenance required only during annual inspection or when the system is disconnected for any reason
- Installation accomplished by use of foam body block (included in kit) representative of a 50th percentile male and offers supplemental protection for a range of occupants from a 5th percentile female to a 95th percentile male

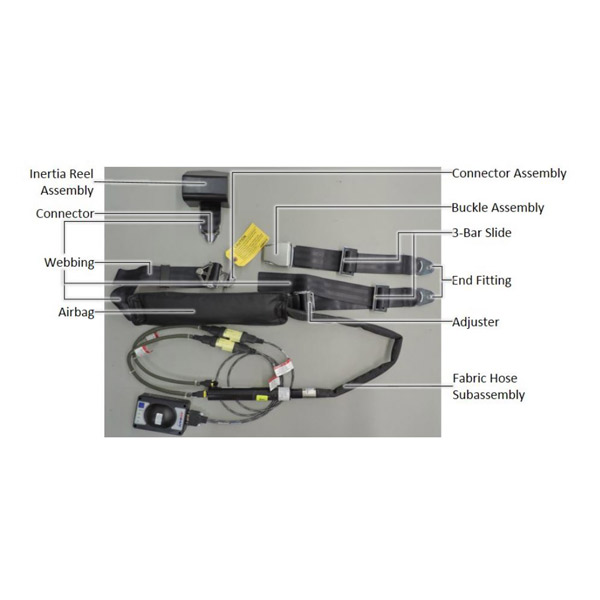

- Shoulder strap with Inertia Reel is provided with the kit. This strap is detachable at the lap belt providing the option to fly without the shoulder strap and to re-attach during TT & L
- AmSafe Airbag Systems have logged over a billion hours of service
Documents
- SOARS Installation Manual (PDF)
- SOARS Overview (PDF)
- SOARS Approved Model List (PDF)
In The Box

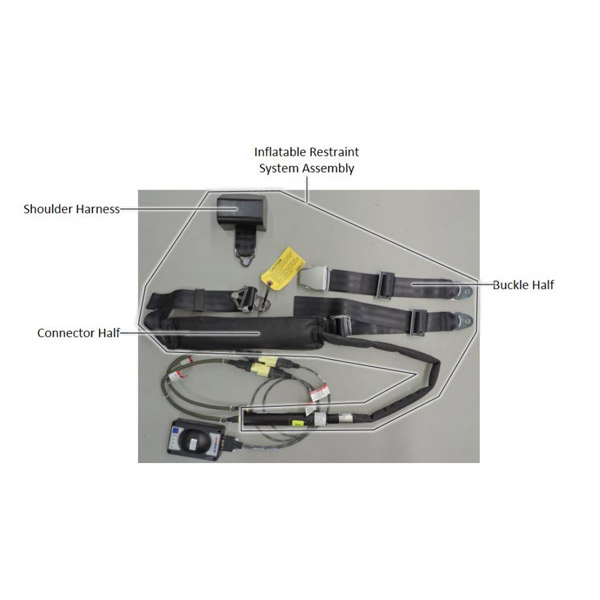

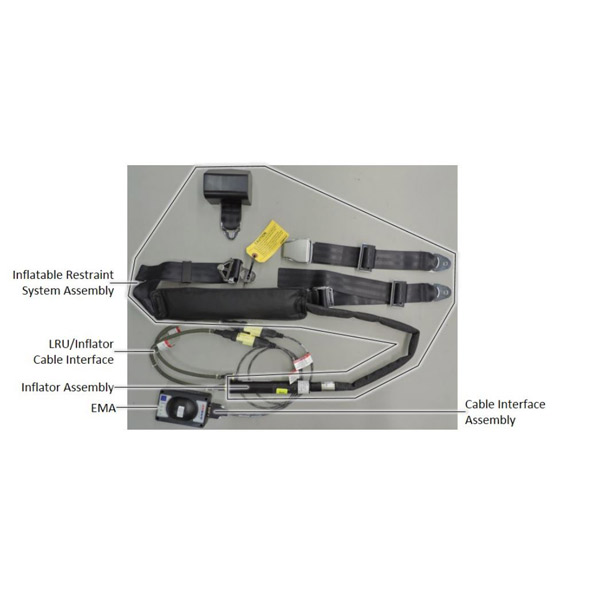

- Two inflatable restraint system assemblies
- One cable interface assembly
- Two line replaceable unit (LRU) inflator interface cables
- One body block
- Two inflator assemblies
- One electronic module assembly (EMA)
- Two airbag-equipped labels
Reviews
Well worth the cost in my opinion to improve crash survivability. Installation was straightforward overall. I would give 5 stars but the inertia reel belt is short- although it is usable for me it is restrictive because I sit far forward.
Verified Purchase
AmSafe SOARS Aircraft Restraint Safety System
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The restraints in this system are black.
Each SOARS kit includes a complete airbag restraint system for both the Pilot & Co-Pilot seats, replacing the original pilot and co-pilot 2 or 3-Point standard restraints.
