Aircraft Modification |
Aircraft Model | Gains / Insallation Time | PN | Price | Buy |
---|---|---|---|---|---|

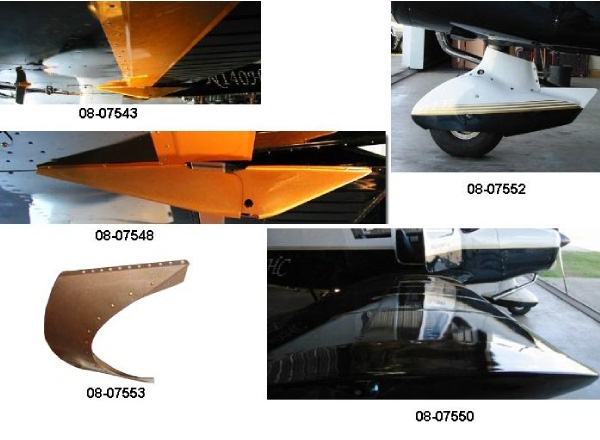

Aileron Gap Seal Square Wing | All PA 28 / 32 | 3 MPH / 1.5 Hrs | 08-07543 | $357.50 | |
Aileron Gap Seal Taper Wing | All PA 28 with Taperwing | 3 MPH / 2 Hrs | 08-07544 | $424.60 | |
Flap Gap Seals | PA 34 | 3 MPH / 2.5 Hrs | 08-07546 | $259.55 | |
Flap Gap Seals | All PA 28 / 32 | 3 MPH / 2.5 Hrs | 08-07547 | $328.90 | |
Flap Hinge Fairings 8 Pairs | PA 34 | 2 MPH / 4 Hrs | 08-07549 | $616.00 | |
Tank Fairings / Smoothing Kit | PA 28 / 32 | 4-15 MPH / 5-15 Hrs | 08-07550 | $1025.20 | |
Tank Fairings / Smoothing Kit Lance and Seneca | PA 32R / 34 | 8-15 MPH / 10-15 Hrs | 08-07551 | $1842.50 | |
Fixed Nose Fairing | All Fixed Gear PA 28 / 32 to 1978 | 2-3 MPH / 2 Hrs | 08-07552 | $414.70 | |
Wheel Well Fairings | PA 28R Only | 3 MPH / 4 Hrs | 08-07553 | $934.95 | |
Wheel Well Fairings | PA 32 / 34 | 4 MPH / 3 Hrs | 08-07554 | $951.50 |
Laminar flow Piper speed Mods The first and still the best! Laminar Flow has been producing high quality Speed Mods for the Piper fleet since 1983. All of their products are time tested, race proven (with the results documented by such well respected publications as Aviation Consumer) and come with a money back guarantee. LFS under-wing Speed Mods are fabricated from aircraft grade aluminum eliminating the cracking and warping that frequently occur when composite components are fastened to a metal wing. |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The flap hinge fairings are installed using pop rivets that are supplied with the hinge fairings. Any common pop-rivet tool will install them.
Yes. They are STC'd and they are included with the kits.
