Flexible Firewall Fabric Black 60 Inches Wide

From $40.90 to $116.75
Prices below incude GST
Description Part No. Price Buy
FLEXIBLE FIREWALL FABRIC 60 INCHES WIDE
SOLD BY THE FOOT
05-00600
$128.43
Quantity
PRE-CUT BAFFLING STRIP 3" x 84"
05-00700
$44.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

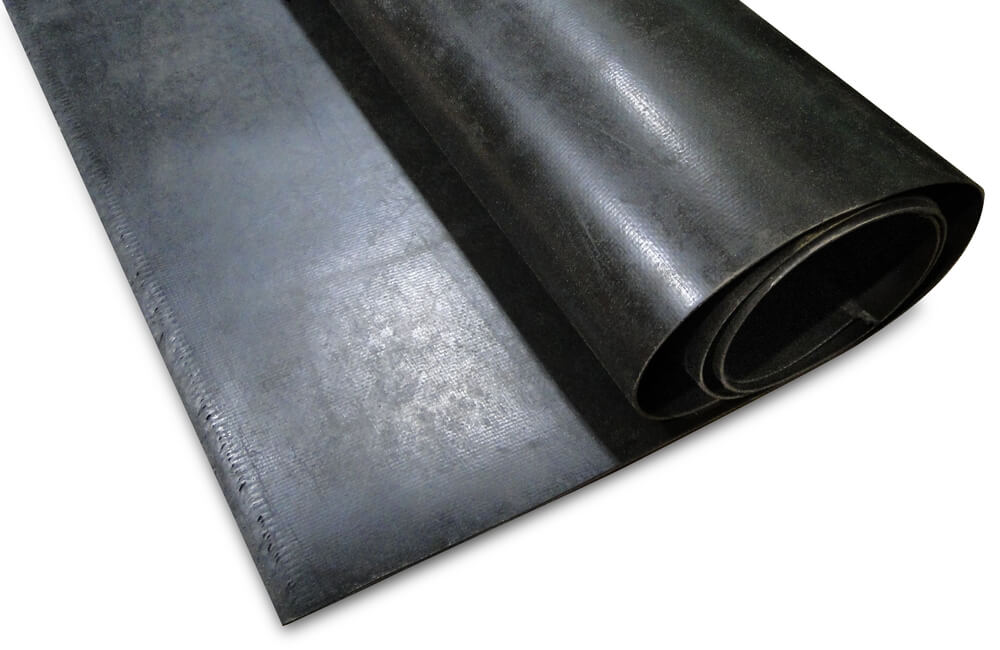

This neoprene coated pyroglass cloth is designed for applications where its superb heat and flame resistance provides an extra margin of protection for people and equipment. Self-extinguishing, it is used as aircraft firewall barriers, protective sleeves and tadpole tape covers, flat seals, gaskets, mounts and door seals. It is ozone and weather resistant and can be used against caustics, gasoline, oil, water and steam. It does not support combustion and will operate in continuous temperatures from -40F to +200F.

Specifications

  • Thickness .070"
  • Sold in 60" width only
  • Sold by the foot (length)

Reviews

Life A Verified Purchase

Pre-Cut Baffling Strip 3X84

September 16, 2023

Was received without the required documents. Request had to be made to have the documents e-mailed.

Arthur
August 11, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight per square foot?

This is now sold by the foot and it weighs 1.6 lbs per foot.

Q: It appears to me this is not self-adhesive. If not what type of glue should be used to maintain non-flammability?

There isn't a suggested adhesive for this material, but 3M Fire Barrier Silicone Sealant, 05-00949, can be used to adhere this material.

Q: What is the thickness of this material? Part # 05-00600

.070 thickness

Q: How much does this weigh per sq ft?

This is now sold in a foot not square foot. 3.14 lbs per foot.
