Tachometer Cables

From $42.95 to $270.95
Prices below incude GST
Description Left Lay Part Number Buy Left Lay
(Counter-Clockwise)
Right Lay Part Number Buy Right Lay
(Clockwise)
Inner Tach Cable 48"
10-22400
$47.25
Quantity
10-22400-R
$47.25
Quantity
Inner Tach Cable 60"
10-03378
$47.85
Quantity
10-03378-R
$47.85
Quantity
Inner Tach Cable 72"
10-03380
$58.03
Quantity
10-03380-R
$51.20
Quantity
Inner Tach Cable 84"
10-03381
$58.03
Quantity
10-03381-R
$57.09
Quantity
Inner Tach Cable 96"
10-03382
$56.93
Quantity
10-03382-R
$61.44
Quantity
Inner Tach Cable 108"
10-03383
$65.73
Quantity
10-03383-R
$63.53
Quantity
Inner Tach Cable 120"
10-03384
$68.09
Quantity
10-03384-R
$63.53
Quantity
Inner Tach Cable 132"
10-03385
$65.99
Quantity
10-03385-R
$65.99
Quantity
Inner Tach Cable 144"
10-03386
$67.93
Quantity
10-03386-R
$67.93
Quantity
Inner Tach Cable 156"
10-03387
$127.55
Quantity
10-03387-R
$127.55
Quantity
Inner Tach Cable 168"
10-03388
$130.85
Quantity
10-03388-R
$130.85
Quantity
Inner Tach Cable 180"
10-03389
$134.15
Quantity
10-03389-R
$134.15
Quantity
Inner Tach Cable 192"
10-03390
$137.45
Quantity
10-03390-R
$137.45
Quantity
Inner Tach Cable 204"
10-03391
$140.53
Quantity
10-03391-R
$140.53
Quantity
Inner Tach Cable 216"
10-03392
$143.83
Quantity
10-03392-R
$143.83
Quantity
Inner Tach Cable 228"
10-03393
$146.25
Quantity
10-03393-R
$146.29
Quantity
Inner Tach Cable 240"
10-03394
$148.39
Quantity
10-03394-R
$148.39
Quantity
Tach Cable 22"
10-02675
$92.13
Quantity
10-02675-R
$92.13
Quantity
Tach Cable 23"----
10-23365
$71.89
Quantity
Tach Cable 24"
10-16300
$94.33
Quantity
10-16300-R
$94.33
Quantity
Tach Cable 25"
10-16000
$97.63
Quantity
10-16000-R
$97.63
Quantity
Tach Cable 26"
10-15800
$97.63
Quantity
10-15800-R
$97.63
Quantity
Tach Cable 29"
10-15900
$97.63
Quantity
10-15900-R
$97.63
Quantity
Tach Cable 29-1/2"
10-15700
$97.63
Quantity
10-15700-R
$97.63
Quantity
Tach Cable 32"
10-16600
$97.63
Quantity
10-16600-R
$97.63
Quantity
Tach Cable 34"
10-16500
$97.63
Quantity
10-16500-R
$97.63
Quantity
Tach Cable 35"
10-16700
$96.53
Quantity
10-16700-R
$97.63
Quantity
Tach Cable 36"
10-16200
$97.63
Quantity
10-16200-R
$97.63
Quantity
Tach Cable 37"
10-16100
$103.13
Quantity
10-16100-R
$103.13
Quantity
Tach Cable 38"
10-16800
$103.13
Quantity
10-16800-R
$103.13
Quantity
Tach Cable 42"
10-16400
$103.13
Quantity
10-16400-R
$103.13
Quantity
Tach Cable 46"
10-00012
$100.93
Quantity
10-00012-R
$102.03
Quantity
Tach Cable 48"
10-16900
$103.13
Quantity
10-16900-R
$103.13
Quantity
Tach Cable 52"
10-16910
$107.53
Quantity
10-16910-R
$107.53
Quantity
Tach Cable 58"----
10-23366
$83.68
Quantity
Tach Cable 60"
10-03362
$107.53
Quantity
10-03362-R
$107.53
Quantity
Tach Cable 72"
10-03363
$110.83
Quantity
10-03363-R
$110.83
Quantity
Tach Cable 84"
10-03364
$114.13
Quantity
10-03364-R
$115.23
Quantity
Tach Cable 96"
10-03365
$118.53
Quantity
10-03365-R
$118.53
Quantity
Tach Cable 108"
10-03366
$124.03
Quantity
10-03366-R
$125.13
Quantity
Tach Cable 120"
10-03367
$132.83
Quantity
10-03367-R
$130.62
Quantity
Tach Cable 132"
10-03368
$141.62
Quantity
10-03368-R
$143.83
Quantity
Tach Cable 144"
10-03369
$153.73
Quantity
10-03369-R
$153.73
Quantity
Tach Cable 156"
10-03370
$241.94
Quantity
10-03370-R
$241.94
Quantity
Tach Cable 168"
10-03371
$247.45
Quantity
10-03371-R
$247.45
Quantity
Tach Cable 180"
10-03372
$258.44
Quantity
10-03372-R
$258.44
Quantity
Tach Cable 192"
10-03373
$263.94
Quantity
10-03373-R
$263.94
Quantity
Tach Cable 204"
10-03374
$235.34
Quantity
10-03374-R
$273.85
Quantity
Tach Cable 216"
10-03375
$280.44
Quantity
10-03375-R
$280.44
Quantity
Tach Cable 228"
10-03377
$289.25
Quantity
10-03377-R
$289.25
Quantity
Tach Cable 240"
10-03376
$298.05
Quantity
10-03376-R
$298.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

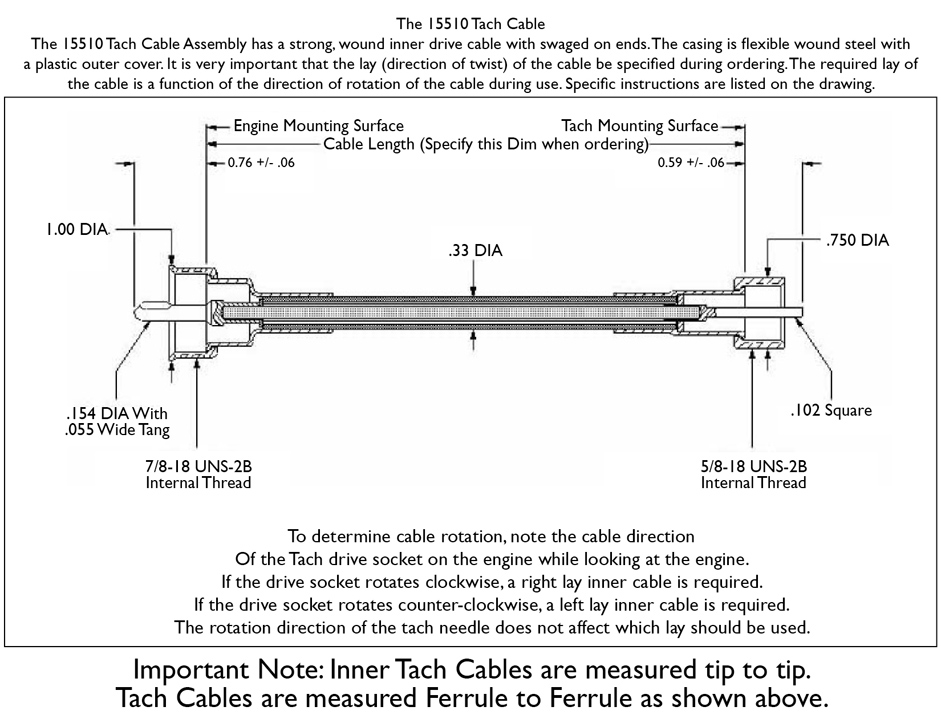

Note: General rule for installation: Tach cable should be installed as straight as possible - the inner cable length will decrease 11/16" per 360 degrees of bends.
  • 1. Select the proper length from the listing, but measure old tach cable to verify length in chart is correct for your aircraft, as tach cables can vary from aircraft to aircraft. Over-length cables can cause problems - order one that fits the installation.
  • 2. Measure original cable from end of Ferrule to end of Ferrule when fully extended.
  • 3. Inner tach cables are measured end to end.
Inner assemblies have male ends only. One end is squared and the other is keyed. Tach cable assemblies have 7/8-18 on one end and 5/8-18 on the other, female nuts only.

Note: Custom length tach and inner cables are available. Please contact sales for price and lead time of custom cable. You will be required to provide length and rotation. Additional information of aircraft, engine, make, model & dash number may be required.

Note: General rule for installation: Tach cable should be installed as straight as possible - the inner cable length will decrease 11/16" per 360 degrees of bends.

Available in left and right lay rotation. Add -R to the part number for Right Lay.
  • 1. To determine cable rotation, note the rotation direction of the tach drive socket on the engine while looking directly at the tach drive on the engine.
  • 2. If the drive socket rotates clockwise, a right lay inner cable is required.
  • 3. If the drive socket rotates counter-clockwise, a left lay inner cable is required.
  • 4. The rotation direction of the tach needle does not affect which lay should be used.

Specifications

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Prompt delivery Exactly as ordered

William L Verified Purchase

Tachometer Cable 26 Right Lay

September 20, 2024

Tach cable and housing was pre-lubed and worked great!

Keith H Verified Purchase

Tachometer Cable 36 Right Lay

August 22, 2024

ok

Glenn M Verified Purchase

Tachometer Cable 24 Right Lay

August 17, 2024

Frank J Verified Purchase

Tachometer Cable 72 Right Lay

May 9, 2024

Very good!!

John B Verified Purchase

Tachometer Cable 26 Left Lay

March 19, 2024

Everything worked fine! Exact length very important!

Myers A Verified Purchase

Inner Tachometer Cable 48 Left Lay

November 29, 2023

This was the right cable but tachometer seems frozen. Still trouble with the 90 degree adapter.

Myers A Verified Purchase

Inner Tachometer Cable 48 Left Lay

November 12, 2023

Doesn’t work because the the nut that’s goes to the tach was in correct position

Escuela D Verified Purchase

Tachometer Cable 25 Right Lay

August 18, 2023

It’s ok

Jorge A Verified Purchase

Tachometer Cable 34 Left Lay

February 1, 2023

Fit was perfect for the aircraft. Seems like a quality cable. Connected at the engine end then passed through firewall fittings and attached to Tach. The only hard part is having arms long enough to reach both sides of the firewall or needing assistance. I choose the later to get the firewall seals attached.

Bobby P Verified Purchase

Tachometer Cable 46 Right Lay

July 20, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hello, can you supply a 16 ft long cable for a tachometer?

Yes, please use part number 10-03373 (TACH CABLE 192") which is a 16 ft tachometer cable.

Q: Regarding Tachometer Cable: P/N: 10-15900 Right Lay or Left Lay, are we looking through the prop to the tail or are we sitting in the seat looking forward at the back of the engine?

The rotation is determined by looking at the tach drive on the engine. Please review the PDF on our web page for a detailed description of how to determine the tach rotation.

Q: Is this a captive or non-captive cable? Non-captive cables cannot be used in several tachs.

All tach cables listed on this page are captive.

Q: Do these Tachometer Cables come with the inner cable?

Yes, they come with the inner cable.

Q: Are the 10-16300 or 10-16000 cables right or left hand lay?

All stock cables are left lay (counterclockwise).

Q: Are the tachometer cables captive ?

Yes, these tachometer cables are captive.

Q: Is it possible to receive a form 8130-3 for the Part # 10-15700-R?

No, these are not FAA approved cables.

Q: Is this tach cable compatible with Lycoming engine and tachometer?

Yes, they are commonly used on Lycoming engines.

Q: Looking at your web site for ordering tachometer cables your site says to look at the rotation direction of the tach drive while looking at the engine. My question is, looking at the engine from the front or rear? Which rotation is most common on Lycoming engines?

Per the manufacturer: Front or rear of the engine doesn't matter because you should be looking at the port in the engine itself where the tach cable will be inserted into the engine. That rotation is what we go off of and most Lycomings have a clockwise rotation which is right lay.

Q: Are these tachometer cables FAA TSOd?

No, these cables are not FAA Approved.
