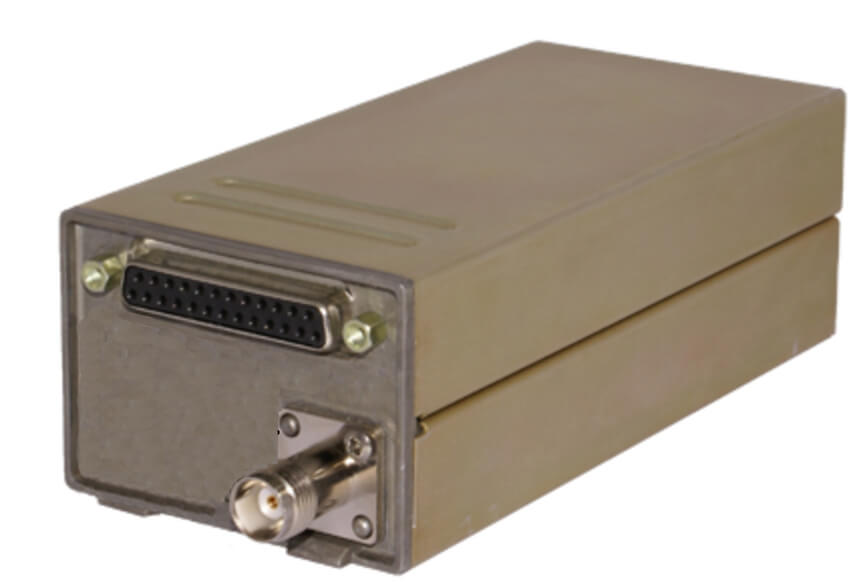

Afs Mode S Transponder

$2538.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11798
MFR Model# 74109

Overview

Mode S Transponder.

Features

  • Complete Control from AF-5000 EFIS
  • TIS Traffic (USA)
  • ADS-B Out via 1090 ES: Meets USA and Europe ADS-B Out Mandates with a TSO'd WAAS connected GPS

Specifications

  • Input Voltage Range: 9 V DC to 33 V DC
  • Power Output: 250 Watts Nominal
  • Operating Temperature Range: -40 C to +158 C
  • Current Consumption: .15A (Idle), .34A (Active)
  • Certification: ETSO 2C112b, C166a, TSO C112c, C166a
  • Weight/dimensions: .9 Lbs / 2.4"H x 1.8"W x 5.6"L (+plugs)
