RAMI AV-3 Surface Vehicle COM Antenna

$197.73/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-05844
MFR Model# AV-3

Overview

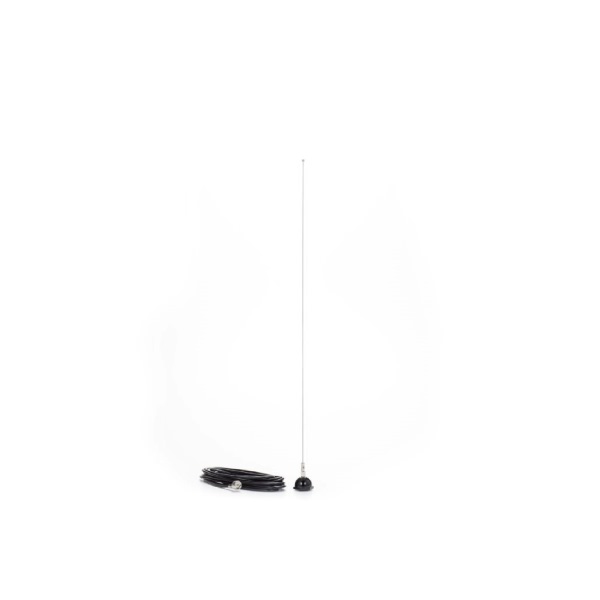

The AV-3 is a low profile snap-in mounting quarterwave antenna for use on surface vehicles. It has a solderless cable connection at the antenna and is supplied with 12 feet of cable and PL-529 connector. The antenna is field tunable by simply cutting the whip to the required length.

Download product outline in PDF format

Specifications

  • Application: VHF Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type PL-259
  • Max Weight: 2.50 lb
  • Max Height: 55" Max (field cuttable)
  • RF Power Capacity: 100 Watts
