Headset Panel Jacks

96 Reviews 13 Answered Questions
From $1.40 to $21.50
Prices below incude GST
Main Image
Main Image
Main Image
Description Part Number Price Buy

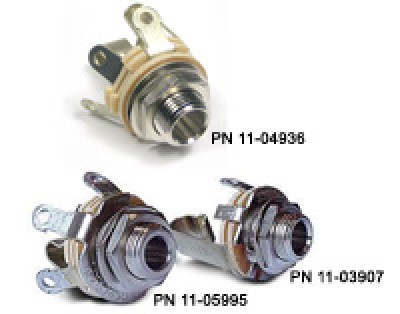

Stereo Headphone Jack, 3-Circuit SWC-12B
11-04936
$5.88
Quantity
Mono Headphone Jack, 2-Circuit JJ-034
11-03907
$4.35
Quantity
Microphone Jack, 3-Circuit JJ-033
11-05995
$6.55
Quantity
Music 3.5mm Jack
11-09332
$1.54
Quantity

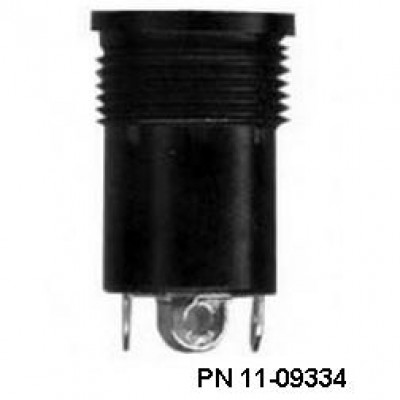

Helicopter Headset Jack
11-09334
$23.65
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Contact springs are of special alloys for long life. Insulation is high dielectric strength phenolic. Tinned terminal lugs for easy soldering. Short frame. Mounts by 3/8-32 threaded bushing and nut. Open circuit until plug inserted.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Nice stuff

Thorsten S Verified Purchase

Switchcraft Stereo Headphone Jack Swc-12B
September 10, 2024

Perfect

Thorsten S Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
September 10, 2024

Jan G Verified Purchase

Switchcraft Stereo Headphone Jack Swc-12B
August 20, 2024

Jan G Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
August 20, 2024

Good

Alain M Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
August 15, 2024

Good

Alain M Verified Purchase

Switchcraft Stereo Headphone Jack Swc-12B
August 15, 2024

Skydive R Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
July 24, 2024

Skydive R Verified Purchase

Switchcraft SwC11 Mono Headphone Jack Jj-034
July 24, 2024

I received exactly what I ordered in a very timely manner. Thank You!

Mitchell Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
June 26, 2024

10

Dan D Verified Purchase

Switchcraft Swc S12B Microphone Jack Jj-033
May 29, 2024

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these jacks come with associated mounting hardware (metal washer, insulating washer, nut)?

The Headset Panel Jacks do come with a metal washers and nuts but the insulating washer is purchased separately. Part# 04-00975 - Insulated Flat Washer Part# 04-00976 - Insulated Shoulder Washer

Q: What type of insulated washer should I purchase for headphone and microphone jacks part numbers 11-04936 and 11-05995?

Please see part #'s 04-00975 and 04-00976 for the appropriate insulated washer and shoulder washer.

Q: Trying to understand this confusion. What type of headphone jacks do I need to buy for standard GA headphones? Have Lightspeed Zulu headphones.Do these jacks come in sets for GA headphones? I am building a homebuilt plane.

Yes, if your Lightspeed headset has two plugs on the end of it and uses batteries to operate, then it is a Dual GA style headset. In that case, you will need one of part # 11-04936, which is the headphone side, and one of part # 11-05995, which is the mic side.

Q: What is the weight of these components? Part # 11-05995 and 11-04936

Part # 11-05995 SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033: weight approx 0.02 lbs.
Part # 11-04936 SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B: weight approx 0.03 lbs.

Q: I have a helicopter with two plugs, does the 11-09334 come as a set or do I need to order a plug for each size?

These are priced and sold individually. One jack for an order of one.

Q: From what i can tell you only need the insulated flat washer and the insulated shoulder washer for the mic jack and not the headphone jack, however reading below it would seem you need it for both jacks. Please clarify.

We recommend using the those washers for each jack in your installation.

Q: Are these solder only or screw connections?

These require a solder connection.

Q: Please suggest wire part number appropriate for these jacks.

You can use shielded wire. The three conductor for stereo installations part # 11-05651.

Q: Do you sell just the nut for the jack seperately?

We do not have a separate part number for the nut as it comes together with the jack.

Q: Not sure which one would be for the Dual GA Plugs?

Part # 11-05995 is the mic jack for dual GA. Part # 11-04936 is the stereo headphone jack for dual GA.
