Description | Part Number |
---|---|

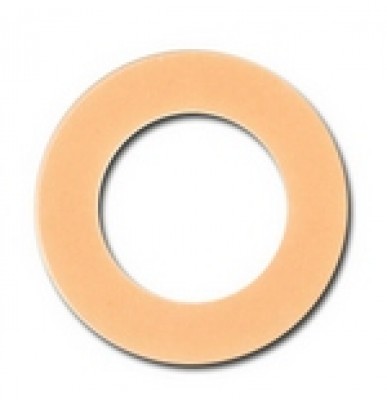

Insulated Flat Washer (SWC S1028) Tan | 04-00975 |

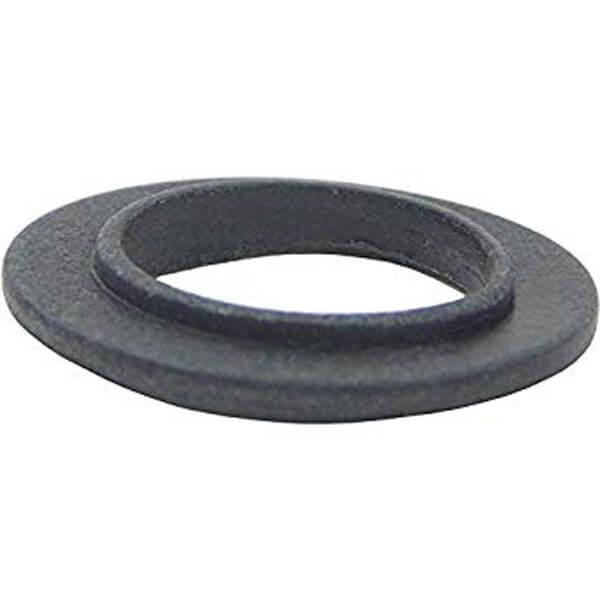

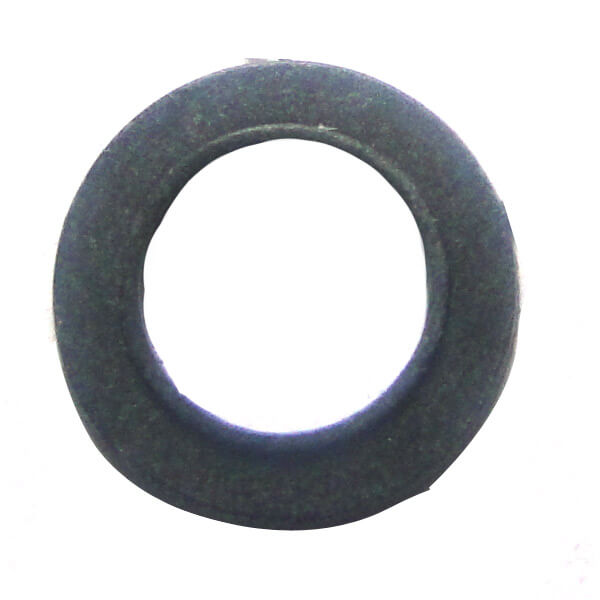

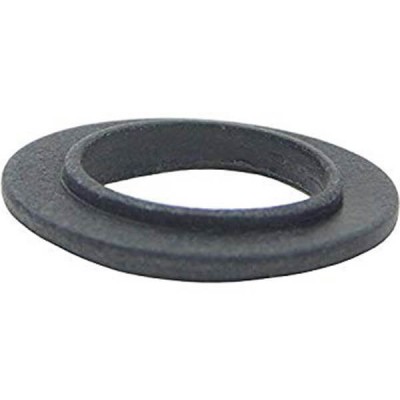

Insulated Flat Washers Insulated flat washer for headset. microphone jacks. P/N 04-00975 1/32" x 5/8" OD x 3/8" ID Insulated Shoulder Washers Insulated shoulder washer for headset/ microphone jacks. P/N 04-00976 .032/.032 x 5/8" OD x .387 ID x .437 ID/step |
Switchcraft Insulated Flat Washer S1028
Switchcraft Insulated Flat Washer S1028
Good. As it should be.
Switchcraft Insulated Flat Washer S1028
I hate to be redundant..3rd item.. five stars.
Switchcraft Insulated Flat Washer S1028
Switchcraft Insulated Flat Washer S1028
Should be included with the jacks. Work wonderfully.
Switchcraft Insulated Flat Washer S1028
Perfect. I hope to improve audio by insulating all the jacks.
Switchcraft Insulated Flat Washer S1028
This and the insulated shoulder washer work well together to solve the issue of my headphone jacks grounding out.
Switchcraft Insulated Flat Washer S1028
Switchcraft Insulated Flat Washer S1028
Switchcraft Insulated Flat Washer S1028
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, you will use the shoulder washer (04-00976) behind the panel with the ridge facing towards the front of the panel. The flat washer (04-00975) goes in the front of the panel. No part of the jack should touch the panel.
Both the mic and headphone jacks should have insulating washers on both sides of the panel.
The dims are 1/32" x 5/8" OD x 3/8" ID.
