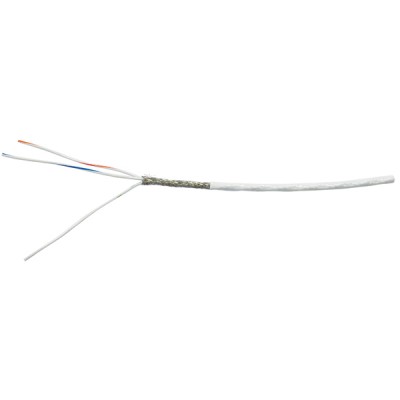

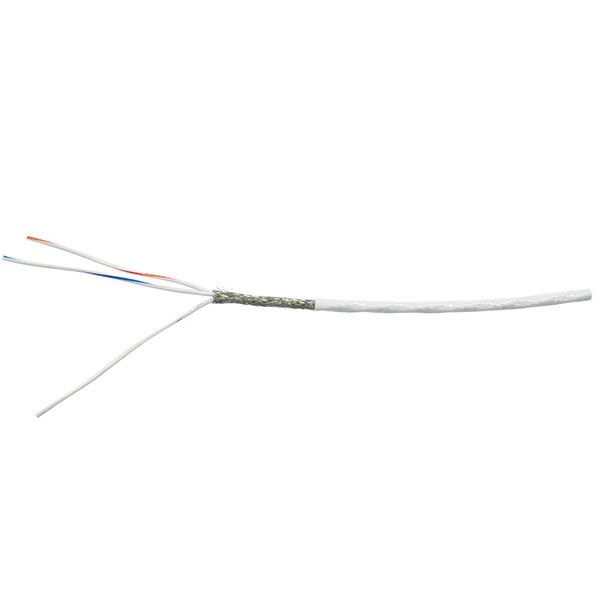

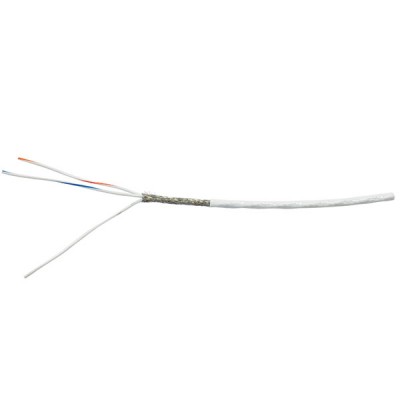

Shielded 22GA 3 Conductor White Wire M27500-22TG3T14

$2.19/Foot
Price Includes GST
Part# 11-05651
MFR Model# J3597
Mil SpecConductorWire GaugePart Number
M27500-22TG3T1432211-05651

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White
