Home / Electrical / Cables and Connectors / Avionics Pins /Female Sub-D Pin 20-24 Gauge Crimp Socket
Main Image

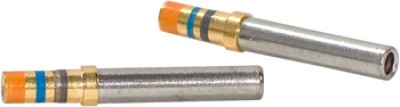

Female Sub-D Pin 20-24 Gauge Crimp Socket

20 Reviews 6 Answered Questions
$0.86/Piece
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11877
MFR Model# 205090-1

Overview

Subminiature D Pins/Sockets for MIL-C-24308 and MIL-C-39029

Features

  • Contact
  • Product Series = 109
  • Contact Type = Socket
  • Applies To Wire/Cable
  • Contact Size = 20
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Chemtrail C Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
September 25, 2024

As advertised. Works well and would order again.

Dan H Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
May 19, 2024

Came on time as advertised!

Daniel R Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
March 26, 2024

right pins life saver

(v) P Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
March 25, 2024

Worked well

Andrew M Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
September 28, 2023

Ricardo S Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
February 11, 2023

M39029/63-368 Sockets were perfect for the AV-30 D-sub connector

C3 A Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
December 7, 2022

Worked in the GTX-327 connector.

Frank J Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
September 23, 2022

I haven’t used them yet, but they look ok to me.

David S Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
August 20, 2022

High quality standard density Sub D pins. Gold plated mil spec pins. Used crimper Part# 05-14876. Worked perfectly in 9 pin AMP connectors.

Simon C Verified Purchase

Female Sub-D Pin 24 To 20 Gauge Crimp Pin
May 19, 2022

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What crimper and die would be used for these pins?

Crimper part number 11-04443. Die part number 11-12211.

Q: Can crimper part # 05-14876 also be used for these pins?

Unfortunately no. We recommend the "Little blue crimper" pn: 11-04443 with positioner pn: 11-12211.

Q: Will these work for MS3116F8-4S female connector?

We do not carry those pins. We only carry this female socket as it is commonly used in avionics.

Q: Are these standard density sockets?

Yes, these are the standard density sockets.

Q: QUESTION: Assuming that sockets 11-11877 fit connector 11-11878, does connector 11-11878 come with the referenced insert tool UL94V-0? Is the insert tool required to insert the sockets? Can it also be used to remove the sockets? Do you have it?

No, the insert tool is not included. Please refer to 10-06933.

Q: Are the high density?

These are standard density.
