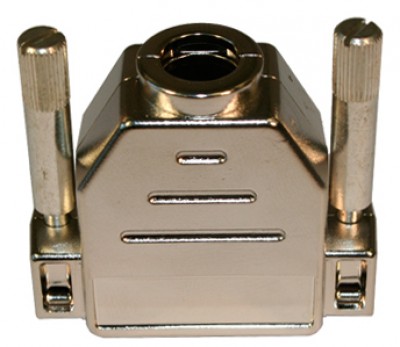

9 Pin Silver Sub-D Connector Clamp Housing
MFR Model# TEX973-009-020R121
Overview
| D-Sub Backshells - Straight/Top Entry Backshell. |
Features
- Straight / Top entry.
- 4-40 Thumbscrews supplied with backshell.
- Perimeter sealing lips for secure sealing.
- Available in metalized plastic and plastic.
- Metalized plastic provides up to 60 dB shielding.
Specifications
- Metalized Plastic: High temperature - UL 94V-O
- Plating: Nickel over copper
- Plastic: High temperature plastic - UL 94V-0 (Black)
- Hardware: Steel, nickel plating
Reviews
Worked well
Verified Purchase
9 Pin Silver Sub-D Connector Clamp Housing
Worked well
Verified Purchase
9 Pin Silver Sub-D Connector Clamp Housing
A high quality backshell that was advertised.
Exactly what I needed. The counter person at will call was very, very helpful.
Works as described. Seems well made and relatively compact. I did not find modification of the shell necessary. I used it with the 9-pin D connector, which uses tiny folded tabs to hold the front and back halves of the metal connector shroud together. At first, since those tiny tabs fold to the backside, there was interference with the front face of the backshell. Fixed the problem perfectly by squeezing the tabs of the connector flat against the flange with a rivet squeezer. Then the connector fit the shell perfectly. Only took me a few seconds. I would order again.
Had to modify the clip to fit the 25 d connector
It had to be modified to work depth is not appropriate to hold connector
15 pin shell does not fit 15 pin female connector. Not enough clearance for front lip to engage edge of connector.
Housing does not fit. D-sub 25 plug.
POS. Does not fit the 15 pin connector properly. Tolerances too tight for connector dimensions, places undue stress on the hood once assembled.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The silver D-Sub housings do not come with the D-Sub connector. These housings will fit either the crimp or the solder type of connectors.
These do come with the thumb screws.
