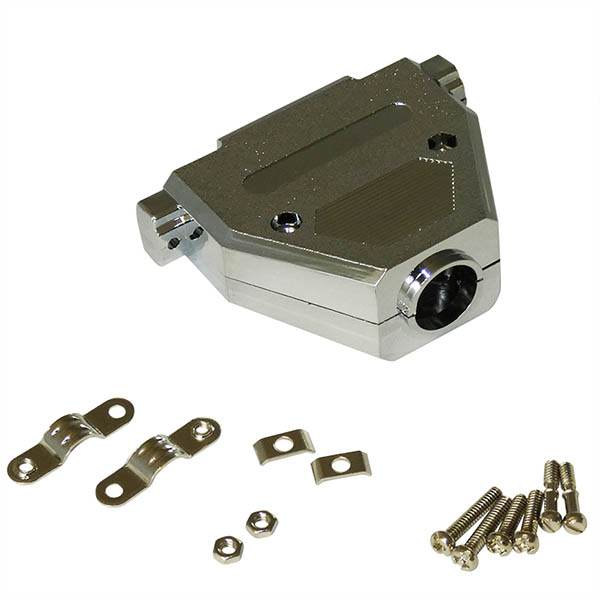

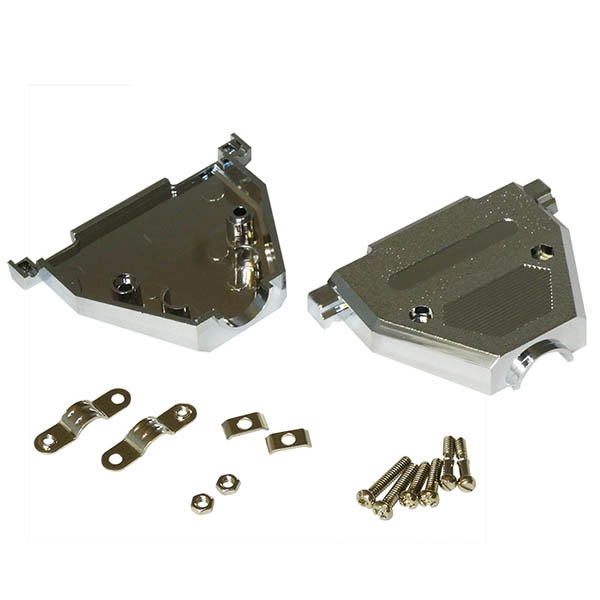

37 Pin Silver Sub-D Connector Clamp Housing

$13.92/Each
Price Includes GST
Part# 11-13017
MFR Model# TEX973-037-020R121

Overview

D-Sub Backshells - Straight/Top Entry Backshell.

Features

  • Straight / Top entry.
  • 4-40 Thumbscrews supplied with backshell.
  • Perimeter sealing lips for secure sealing.
  • Available in metalized plastic and plastic.
  • Metalized plastic provides up to 60 dB shielding.

Specifications

  • Metalized Plastic: High temperature - UL 94V-O
  • Plating: Nickel over copper
  • Plastic: High temperature plastic - UL 94V-0 (Black)
  • Hardware: Steel, nickel plating
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Nice D-sub housing. It does fit the Part # 11-12151 37-pin connector perfectly.

Michael B Verified Purchase

37 Pin Silver Sub-D Connector Clamp Housing

October 12, 2022

A high quality backshell that was advertised.

Ronald G
July 9, 2022

Couldn’t use in my application because the lip was too thick and hindered pin engagement

David G Verified Purchase

37 Pin Silver Sub-D Connector Clamp Housing

December 18, 2021

Worked as advertised

Allen S Verified Purchase

37 Pin Silver Sub-D Connector Clamp Housing

November 24, 2021

Worked as advertised

Allen S Verified Purchase

37 Pin Silver Sub-D Connector Clamp Housing

November 24, 2021

Exactly what I needed. The counter person at will call was very, very helpful.

Vic R
December 12, 2020

Works as described. Seems well made and relatively compact. I did not find modification of the shell necessary. I used it with the 9-pin D connector, which uses tiny folded tabs to hold the front and back halves of the metal connector shroud together. At first, since those tiny tabs fold to the backside, there was interference with the front face of the backshell. Fixed the problem perfectly by squeezing the tabs of the connector flat against the flange with a rivet squeezer. Then the connector fit the shell perfectly. Only took me a few seconds. I would order again.

Edward M
February 10, 2020

Although this was plastic, as long as you are careful, this was a nice piece.

Todd J Verified Purchase

37 Pin Silver Sub-D Connector Clamp Housing

April 3, 2024

Had to modify the clip to fit the 25 d connector

Hardey M
August 9, 2018

It had to be modified to work depth is not appropriate to hold connector

Dave G
January 14, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are they crimped or soldered?

The silver D-Sub housings do not come with the D-Sub connector. These housings will fit either the crimp or the solder type of connectors.

Q: Does the 25 pin clamp housing p/n 11-13016 have the long 4-40 thumbscrew?

These do come with the thumb screws.
