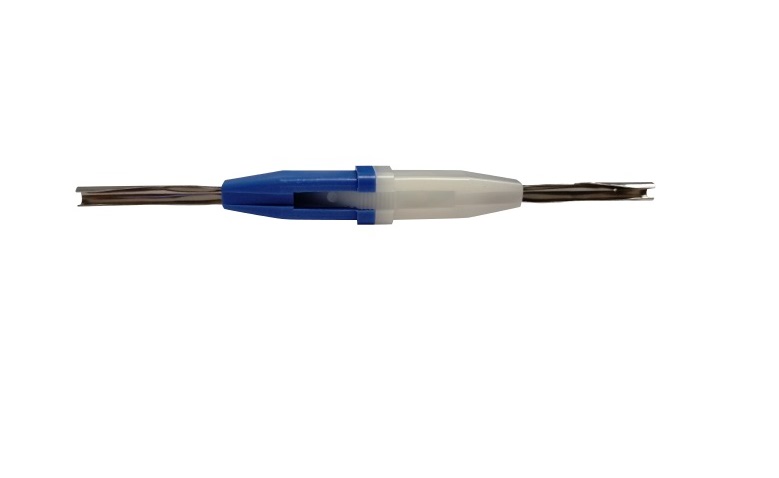

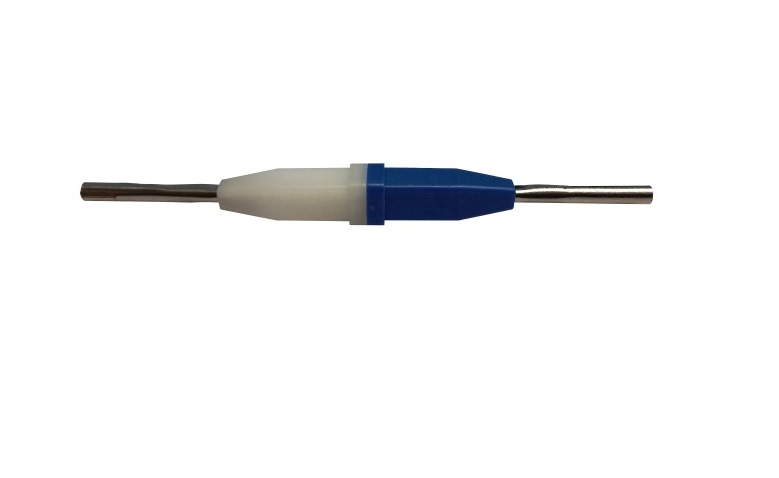

Pin Insertion & Extraction Tool

43 Reviews 4 Answered Questions

From $1.35 to $23.95

Prices below incude GST

Description	AWG	Material	PN	Price	Buy
Insertion & Extraction / Blue & White	16	Metal	11-04431	$13.14	Quantity
Insertion & Extraction / Red & White	20	Metal	11-04432	$26.35	Quantity
Insertion & Extraction / Red & White	24-20	Metal	11-04433	$5.12	Quantity
Insertion & Extraction / Green & White	20	Plastic	10-06933	$1.49	Quantity
Insertion & Extraction / Green & White	22	Metal	11-04434	$7.15	Quantity
Insertion & Extraction / Green & White	22-28	Metal	11-04435	$4.12	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

Overview

The insertion of contacts during assembly or replacement during repair is quick and easy with the appropriate tools. The tools have to fit the contacts and the connectors if assembly and repair are to be carried out correctly.

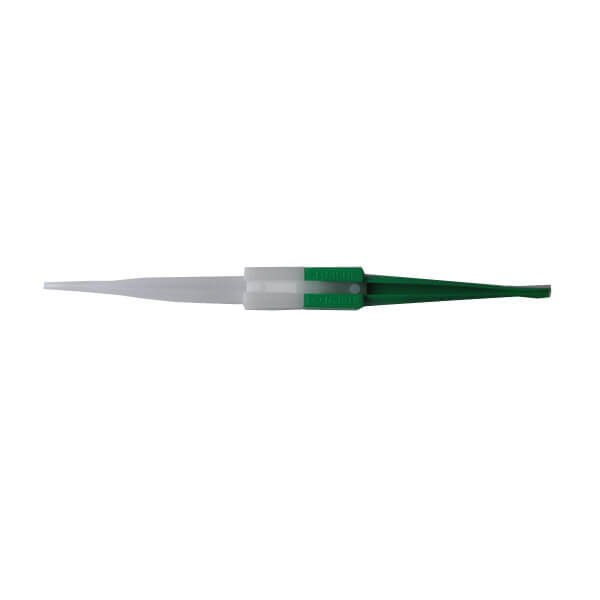

Plastic Body, Metal Tip Insertion & Extraction Tool
After you've installed the pins on the wiring to a connector, this tool will help you set the pins correctly into the connector housing. This tool is also absolutely necessary to use for extracting a proken pin for replacement or moving a misplaced pin for relocation. Insert and extract all your connector pins & sockets with this premium tool.
