essential for removing the high density pins

Arnold M Verified Purchase

Amp Pin Insertion / Extraction Tool 22-28Awg- Metal Tip

Could not make it work!

Ray L Verified Purchase

Amp Pin Insertion / Extraction Tool 22-28Awg- Metal Tip

Made from steel instead of the older thinner copper material. Difficult to get in beside pins.

Sage A Verified Purchase

Amp Pin Insertion / Extraction Tool 22-28Awg- Metal Tip

good tool

Mario A Verified Purchase

Amp Pin Insertion / Extraction Tool 22-28Awg- Metal Tip

AS described. As always great service

Central A Verified Purchase

Amp Pin Insertion / Extraction Tool 22-28Awg- Metal Tip

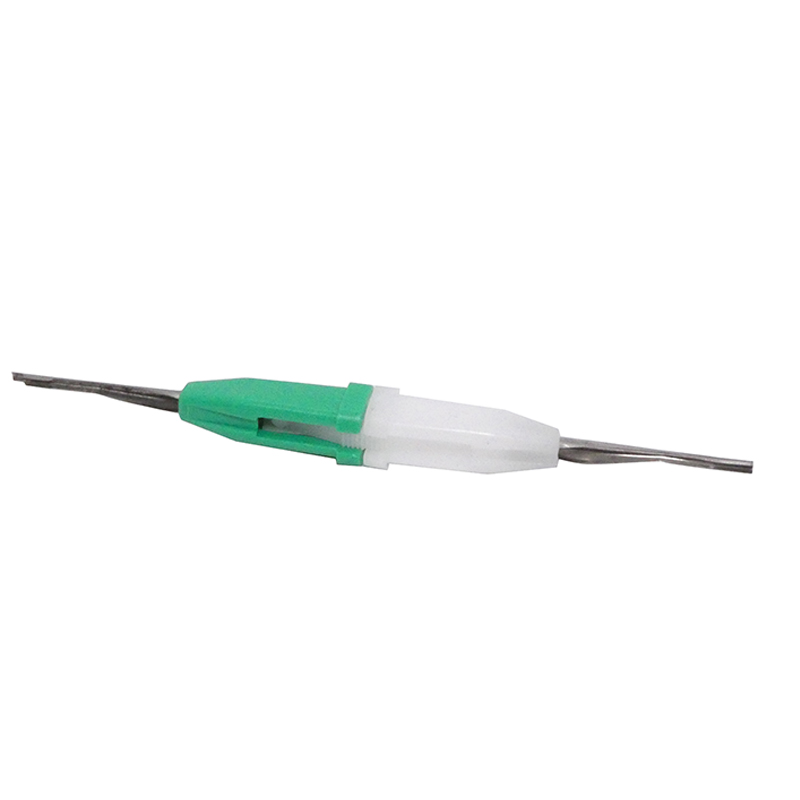

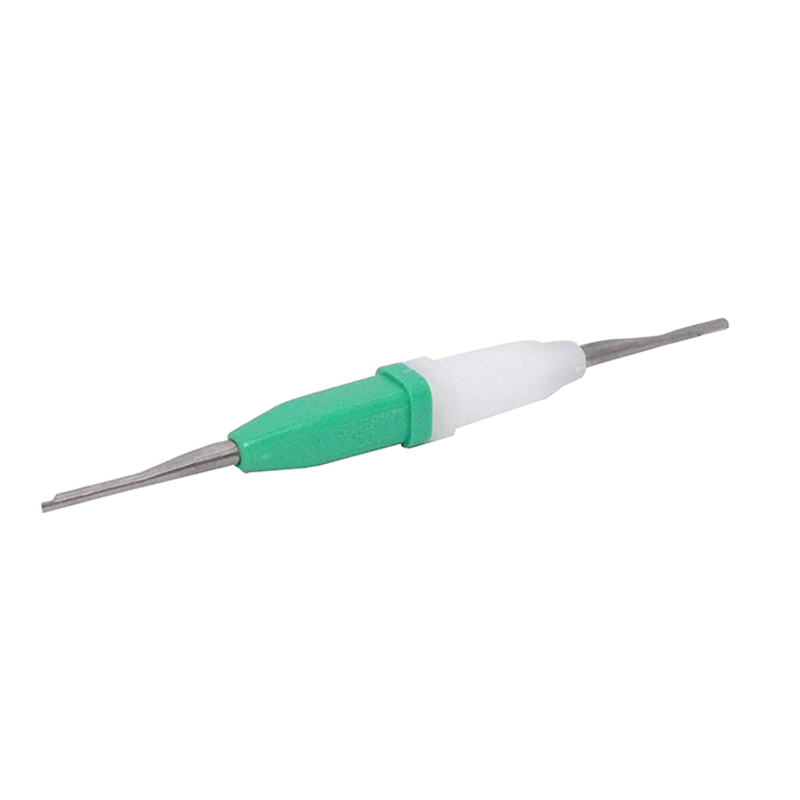

Great for Garmins DB9 and DB25 connectors. If youre working with their 44 pin connectors (High Density pins), you need the green and white tool.

Makes life much better when removing or installing the pins on a 15 or 24 pin plug. Without this tool you are sure to damage the pin and most likely the plug.

It is metal so it is far better than the plastic ones. But mine arrived with a bend in it. Appears to be a kink from manufacturing, not shipping. Still functional but not top quality. However, I have not found a better one anywhere. It does remove pins and insert pins. Takes practice.

I needed to inset female sub D pins. It helps during the insertion but if you want to remove the sub Ds you will need this tool. could not do without it and well worth the money.

These tools bend very easily and wont work when even slightly bent. I have been trying to remove pins from a connector in a difficult place behind the panel where the angle Im working and the adjacent wires makes it hard to use the extraction tool. Ive damaged three metal tools and three plastic tools getting three pins out, after practicing on the bench. The plastic extractor to my surprise has held up better.

I am a retired airline avionics tech of 25 years. I purchased a couple of these insert/ extraction tools to replace my old worn tools. I found the tools poorly made. I inserted a 20 series sub-d socket and a wire crimped socket into a connector to see how well the extraction tool would release. Trying both of the tools I purchased, I could not get either of the sockets to release. I finally had to use one of my old AMP grade tools to extract the sockets from the connector without any problems.

11-04433 24-20 tool. would not go in hole for 22 awg hole. very unhappy 2 days before Christmas so will take two weeks to replace.
