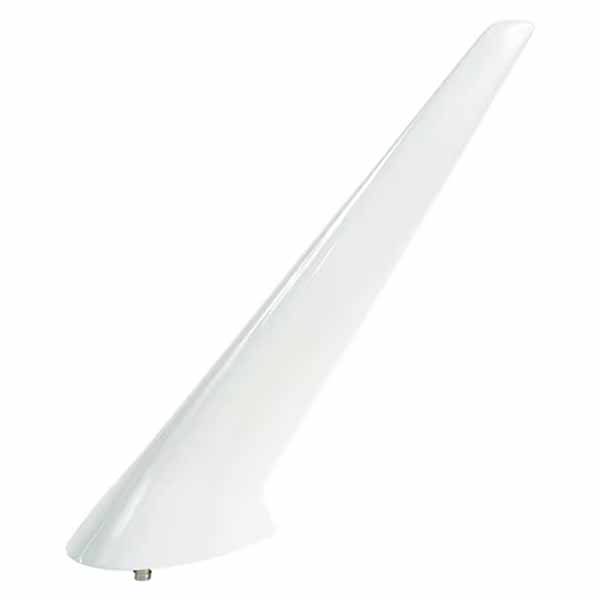

Comant CI-138 VHF Antenna

$959.20/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19399
MFR Model# CI-138

Overview

Comant’s four internal hole mount blade style VHF communication antenna with offset BNC port. Equivalent to the CI 119 expect for the mounting hole pattern and BNC connector location. Suitable for either top or bottom mounting with both light and heavy fixed wing single engine / multi-engine and helicopter aircraft.

Specifications

  • Electrical
  • Frequency: 118-137
  • VSWR: 2.9:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance RF: 50 Ohms
  • Power RF: 25 Watts

  • Mechanical
  • Weight: 1.25 lb
  • Height: 13 in
  • Material Valox: 420
  • Finish: Glossy White
  • Connector: Offset BNC (female)

  • Environmental
  • Temperature: -55 to +85 Celsius
  • Altitude: 50,000 ft.

  • Federal Specifications
  • FAA TSO: C37d, C38d
  • RTCA Environmental: DO-160D
  • Gasket: C13804 Cork Neoprene

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Helicopter
  • Always consult your installation shop
  • for best application
