RAMI Avt-4 COM Antenna

$460.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# AVT-4
MFR Model# AVT-4

Overview

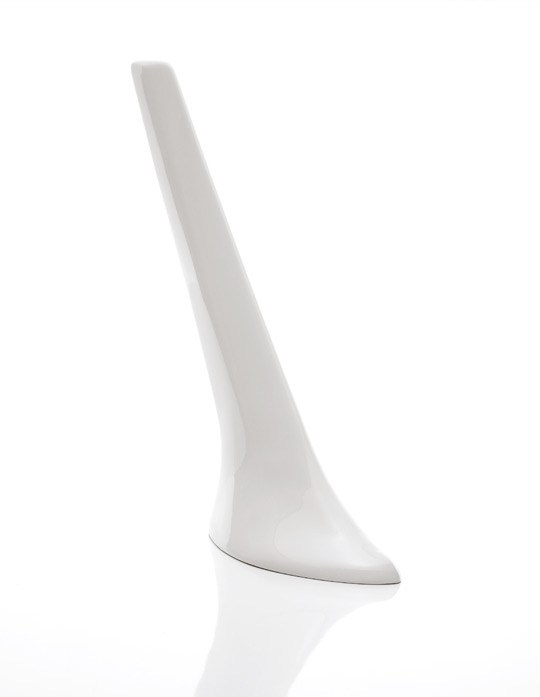

The AVT-4 is a broad-band VHF communications antenna. It incorporates a low drag blade housing design made of LURAN-S plastic for high strength and a radiating element encapsulated in rigid polyurethane foam. The housing is finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.

Specifications

  • Application: Airborne Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 20 oz
  • Max Height: 13-1/2"
  • RF Power Capacity: 30 Watts
