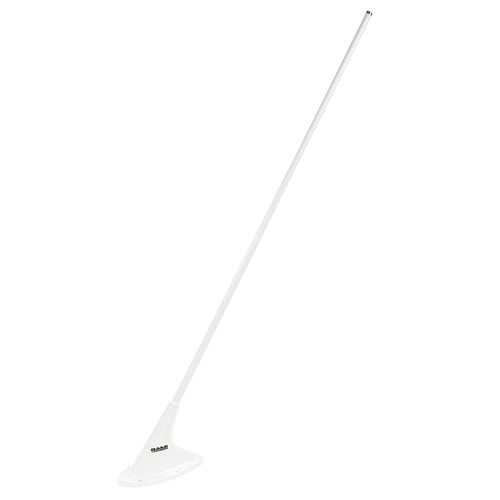

RAMI AV-10 COM Antenna
Overview
|
The AV-10 is designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph. |
Specifications
- Application: Airborne Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.0 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type "BNC" Female
- Max Weight: 8 oz
- Max Height: 20-1/4"
- RF Power Capacity: 25 Watts
Drawing
Reviews
Verified Purchase
RAMI AV-10 COMMAntenna TSO
Verified Purchase
RAMI AV-10 COMMAntenna TSO
These are decent antennas.
Verified Purchase
RAMI AV-10 COMMAntenna TSO
Worked as advertised
Verified Purchase
RAMI AV-10 COMMAntenna TSO
Reliable and affordable, two word that goes great with this product.
Verified Purchase
RAMI AV-10 COMMAntenna TSO
Verified Purchase
RAMI AV-10 COMMAntenna TSO
Replaced the antenna on a 79 Piper Warrior. The old antenna was cracked and split and the the new one is clear and easy to hear radio transmissions.
Verified Purchase
RAMI AV-10 COMMAntenna TSO
The antenna arrived exactly as described. It looks good and was easy to install. I bought it due to performance problems with the previous antenna and it seems to work much better.
Verified Purchase
RAMI AV-10 COMMAntenna TSO
nice antenna
Prompt delivery from the USA to Australia. Properly packed for shipping and nil damage upon receipt. Product was as described.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we have added a link to the install instructions in the "Overview" tab. We have also added a drawing to the "Drawing" tab which shows the outline and the footprint. Please review them on this web page.
Yes, this is approved for use in certified aircraft.
Yes, but you still need a ground plane.
This antenna has a BNC female connection on the bottom if it.
Hardware is included with the antenna.
Yes, you are able to use this antenna.
RG400 coax is most commonly used with this antenna.
AV-10 newer style base and 4 hole mounting footprint.
AV-529 older style base and 3 hole mounting footprint.
