Comant CI-177-3 FM Com Whip

$524.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19408
MFR Model# CI-177-3

Overview

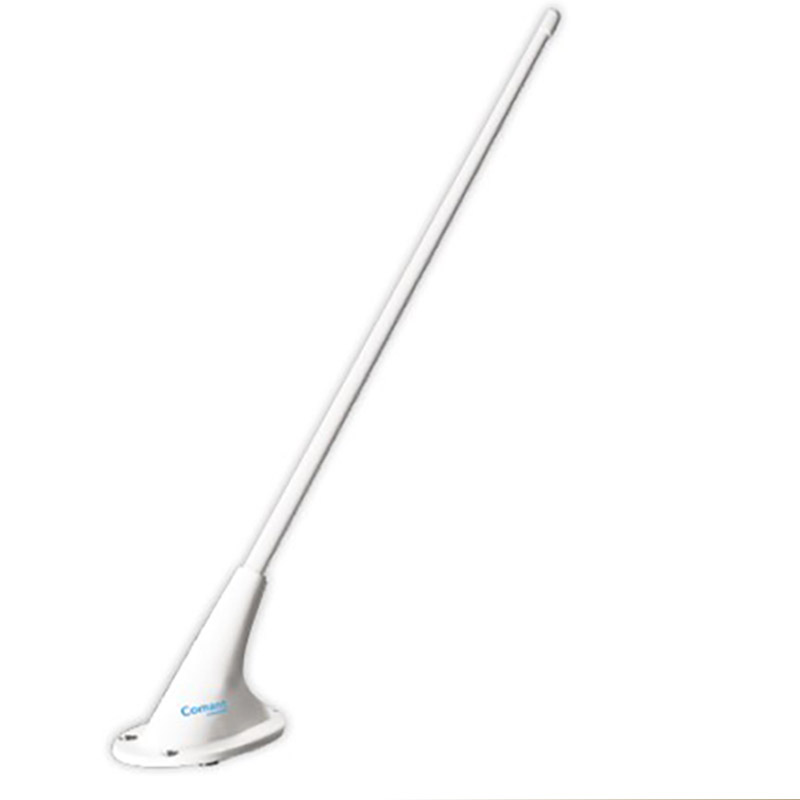

Comant’s three through hole mount whip style FM Communication antenna with BNC port. Designed for use over the public service FM frequency 2-meter band. Suitable for top mounting with light fixed wing single engine / multi-engine aircraft.

Specifications

  • Electrical
  • Frequency: 148-174 MHz
  • VSWR: 2.5:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance RF: 50 Ohms
  • Resistance DC: Open Circuit
  • Power RF: 50 Watts

  • Mechanical
  • Weight: 0.50 lb
  • Height: 14.5 in
  • Material: Die Cast housing / Fiberglass whip
  • Finish: Glossy White
  • Connector: BNC (female)

  • Environmental
  • Temperature: -55 C to +55 C
  • Altitude: 25,000 ft

  • Federal Specifications
  • FAA TSO C37b, C38b
  • RTCA Environmental DO-138

  • Gasket: C29205

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Always consult your installation shop for best application.
