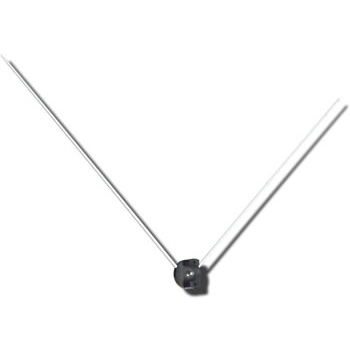

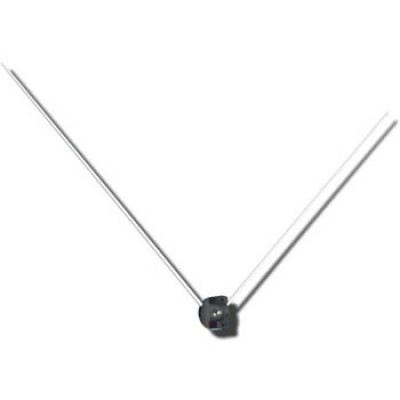

Comant VOR/Loc/GS Antenna CI-215
MFR Model# CI-215
Overview
|
Frequencies Covered “V” Dipole VOR/LOC/GS antenna with detachable elements featuring two integrally molded mounting legs or “spacers” for increased strength. Radiating elements are laminated with polyester glass material for improved precipitation static protection. Interchangeable with the VOR/LOC/GS antennas used on most Cessna single engine aircraft since 1980 including the Cessna 182 and 210 models. Note: Does not fit all Cessnas. Confirm application with A&P installer if in doubt. Note: Comant Antennas no longer come with a gasket or template. Must order sealant PN 09-05579 separately. Applications |
Specifications
MODEL CI 215 V-DIPOLE | |
Electrical | |
Frequency | 108-118 MHz (VOR/LOC) |
VSWR | 3.0:1 Maximum |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical | |
Weight | 0.6 lbs Maximum |
Height | 16.00 in. Maximum |
Material | Derlin Mounts/Glass Laminate Whips |
Finish | Black Housing/ Polyurethane Enamel |
Connector | BNC (Female) |
Environmental | |
Temperature | -55ºC to + 85ºC |
Altitude | 50,000 ft. |
Air Speed | 250 Knots TAS @ 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160 |
FAA TSO | C34c, C36c, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The antenna has a female BNC and you will need a male BNC connector on the coax cable.
Part # 09-05579 is a liquid sealant that the manufacturer of the antenna now recommends. They no longer recommend cork gaskets.
The base has a 2.5" max diameter.
