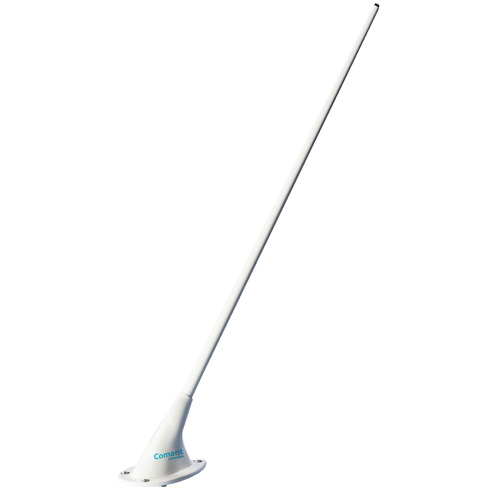

Comant Ci-292-4 Fm Com Ext Frequency Stainless Whip

$943.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19422
MFR Model# CI-292-4

Overview

Comant’s three through hole mount bare whip style FM Communication antenna with BNC port. Designed for use over the public service FM extended frequency 2-meter band. Suitable for top mounting with light fixed wing single engine / multi-engine aircraft.

Specifications

  • Electrical
  • Frequency: 136-174 MHz and 138-174 MHz
  • VSWR
  • 2.5:1 @ 138-174 MHz
  • 3.0:1 @ 136-174 MHz
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance: 50 Ohms
  • Power: 50 Watts

  • Mechanical
  • Weight: 0.60 lb
  • Height: 14.5 in
  • Material: Die Cast housing / Stainless whip
  • Finish: White Polyurethane Enamel
  • Connector: BNC (female)

  • Environmental
  • Temperature: -55 C to +70 C
  • Altitude: 50,000 ft

  • Federal Specifications
  • FAA TSO: C37c (Class 1), C38c
  • RTCA Environmental: DO-160B
  • Gasket: C29205
