Comant FM Communications Extended Antenna CI-292-3

$711.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-18306
MFR Model# CI-292-3

Overview

Frequencies Covered
138-174 MHz

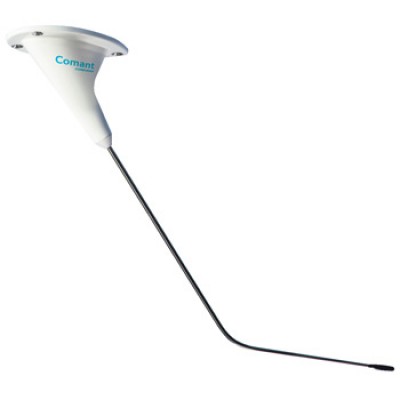

The CI 292-3 FM Extended Band Bent Whip Antenna was designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz. It features a high-strength die-cast 3-hole aluminum base. The radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting.

The CI-292-3 has been re-tested and upgraded to the new RTCA DO-160B environmental requirements.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Features

  • Die-cast 3-hole mount aluminum base
  • 136-174 MHz & 138-174 MHz bandwidth frequency
  • Tapered stainless steel rod
  • Bottom Mounting
  • FAA TSO C37c (Class 1), C38c
  • RTCA Environmental DO-160B

Specifications

MODEL CI 292-3 FM ANTENNA
Electrical
Frequency
138-174 MHz

VSWR

3.0:1 Maximum
Polarization
Vertical
Radiation Pattern
Omnidirectional
Impedance
50 Ohms
Power
50 Watts
Mechanical
Weight

0.6 lb. Maximum

Height
9.5 in. Maximum
Material
Die Cast Housing/StainlessWhip
Finish
White Polyurethane Enamel
Connector
BNC (Female)
Environmental
Temperature
-55ºC to +70ºC
Altitude
50,000 ft.
Air Speed
250 Knots TAS
Federal Specification
RTCA Environmental
DO-160D, MOPS: DO-186A
FAA TSO
C37c, C38c
