Comant DME / Transponder CI-305

$438.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06824
MFR Model# CI-305

Overview

Frequency • 960-1220

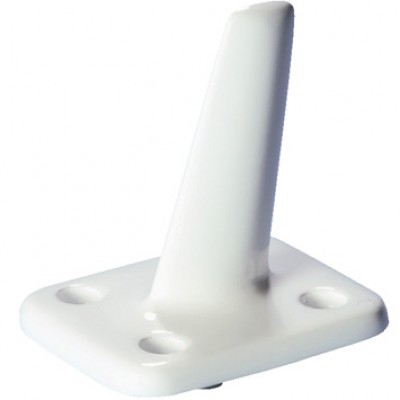

Miniature high speed DME/Transponder - one of the smallest DME/Transponder antennas available from Comant. Less than 2.75 inches high, featuring a very low-drag frontal profile. Strong, lightweight and easy to mount using four external mounting holes through base.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 305 DME/TRANSPONDER
Electrical
Frequency

960 to 1220 MHz

VSWR

1.8:1 Maximum

Polarization

Vertical

Radiation Pattern
Equivalent to 1/4 Stub
Impedance RF
50 Ohms
Resistance DC
Open Circut
Power RF
1 KW Peak
Mechanical
Weight
0.3 lb. Maximum
Height
2.75 in. Maximum
Material
Molded Radome
Finish
White Polyurethane Enamel
Environmental
Temperature
-54ºC to +55ºC
Altitude
45,000ft.
Air Speed
600 Knots TAS at 35,000 ft.
Federal Specifications
RTCA Environmental
DO-160A
FAA TSO
C66b, C74c
RTCA MOPS
DO-144, DO-189
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this antenna work with the Garmin GDL 39R ADS-B that is hooked up to a Garmin G3X?

Yes this antenna could work. You could also use 11-17965.

Q: Can the Comant CI-305 be used without part # 09-05579?

You must install this as required by the manufacturer. Per the installations they require an RTV sealant around the periphery of the antenna.

Q: Will this antenna work with Garmin GTX 345R ADS-B transponder as well as a King KN-63 DME Receiver / Transmitter? Secondly, is there any make/model of a DME/Transponder antenna that serves both devices or must one have a separate antenna for each device? Looking at the various antenna descriptions in Aircraft Spruce, some say DME/Transponders while others say DME or Transponder.

Yes, this antenna will work for both functions. It is certified and the gasket is sold separately.
