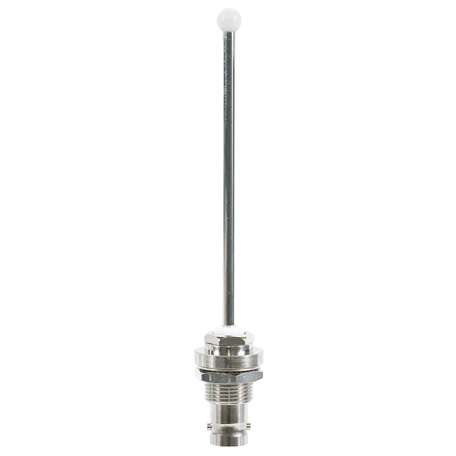

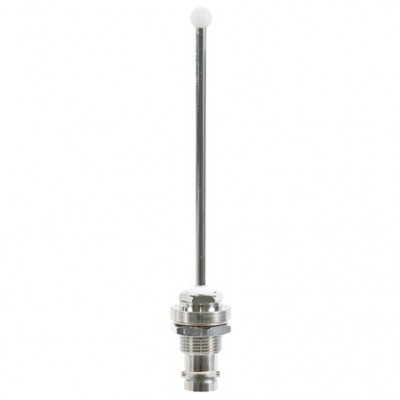

Comant UHF Antenna CI-306

$379.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06844
MFR Model# CI-306

Overview

Frequency • 800-870 MHz

Stub-type antenna tuned for the 800- 870 MHz radio telephone band. Intended for use on low-flying aircraft and helicopters. CI 306 available with BNC connector and mounts through a single 0.600” inch diameter hole.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 306 UHF ANTENNA
Electrical
Frequency
800 to 870 MHz
VSWR
1.5:1 Maximum
Polarization
Vertical
Radiation Pattern

Equivalent of 1/4 Stub

Impedance
50 Ohms
Power RF
50 Watts
Mechanical
Weight
0.15 lb. Maximum
Height
4.0 in. Maximum
Material
Nickle Plated Brass
Finish
Tin Nickel Alloy
Connector
BNC
Environmental
Temperature
-55ºC to +70ºC
Altitude
25,000 ft.
Air Speed
250 Knots TAS at 25,000 ft.
