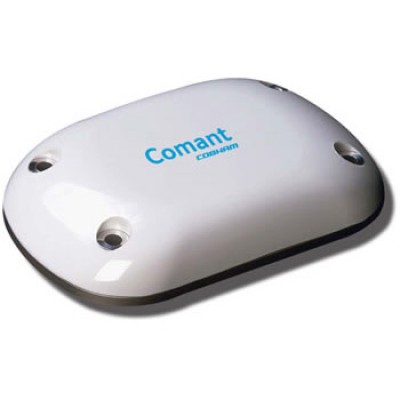

Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets. Meets RTCA DO 160-D operating standards including direct effects lightning. Designed to operate with Garmin 17.0 dB gain panel mount GPS receivers. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Not compatible with most hand held GPS receiver units. Applications Frequencies Covered |
GPS Preamplifier Characteristics | |
Frequency | 1575.42 +/-3 MHz |
VSWR | 1.5:1 Maximum |
Polarization | RHCP |
Radiation Pattern | Hemispherical |
Output Impedance | 50 Ohms |
Gain@ 1575.42 MHz | 17 +/ -3db |
DC Voltage | 4-24 Volts |
DC Current Min/Max | 40 mA Max. |
Noise Figure | 3.5 dB |
Selectivity | -40 dB min. @ satcom 1626.5 MHz |
Mechanical / Enviromental | |
Weight | 6.2 Ounces |
RTCA Env. / TSO | DO 160-D / C 144 |
Connector | TNC (Female) |
