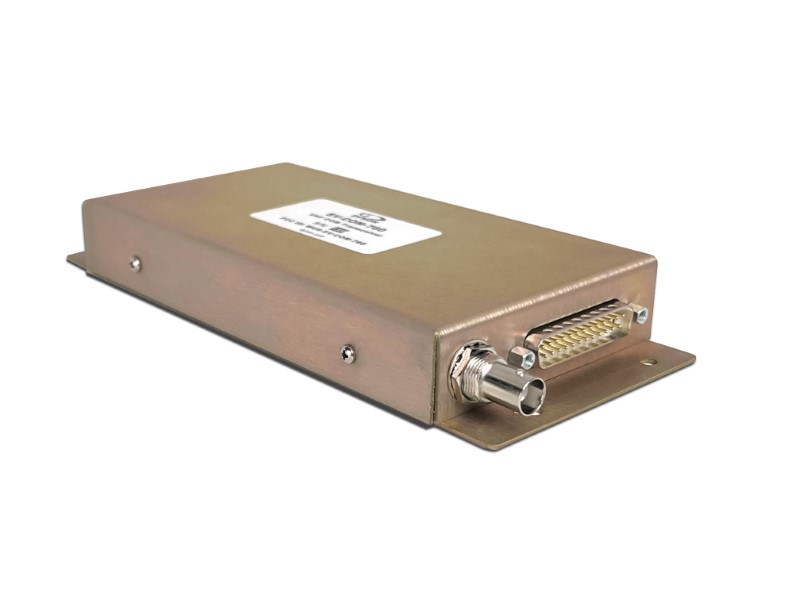

Dynon VHF COM 25 kHz Transceiver Only SV-COM-760

$852.50/Each
Price Includes GST
Part# 10-07642
MFR Model# 104300-000

Overview

Lower price Dynon 25 kHz COM Transceiver is available for experimental aircraft. The SV-COM-760 is pin-compatible with the SV-COM-T25 and interfaces with the same SV-COM-PANEL modules (102033-000 & 10243-000) that are already available. Essentially, it has similar specifications and performance as the existing radio.A few differences from the SV-COM-T25: The SV-COM-760 uses a BNC connector, has different dimensions and weights, and is only suitable for 12V aircraft. It is not TSO'd, but this is not a requirement for the vast majority of experimental/light sport customers.

By integrating deeply with your Dynon SkyView system, the SkyView COM Radio tunes frequencies by airport and station type - rather than by spinning in a number - at the touch of a button. You can also send frequencies over from the SkyView map airport info pages. For when you're feeling nostalgic (or are following ATC instructions), a dual concentric knob lets you spin in frequencies "the old fashioned way." SkyView will identify the airport and station type as you tune to help ensure you're talking to the right radio station. The SV-COM-760 has 25 kHz channel spacing only.

Don't Miss a Thing: Dual watch allows you to listen for transmissions on both your active and standby frequencies simultaneously, with the active taking priority at all times. Use dual watch to monitor an alternate frequency in busy airspace or listen to ATIS without missing anything on the active.

Designed for YOUR Panel: The SV-COM-PANEL is available in both horizontal and vertical versions so that you can craft your perfect panel. And, because the transceiver modules are mounted remotely, the control panel is only 1.27” deep.

Specifications

SV-COM-760
Frequencies:
SV-COM-760: 118.000 to 136.975 MHz, 25 kHz Spacing
Transceiver Module Dimensions: 7.96" W x 1.02" H x 3.50 D" (202.2mm W x 25.9mm H x 88.9mm D)
Weights: SV-COM-760 Transceiver Module: 0.56 lb. (0.25 kg)
Power Input: 10-15 VDC
Transmit Power: 6 Watts
Antenna Connection: BNC
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do I need the SV com panel, or can I just use the skyview display to control the radio?

The SV-COM-PANEL is required with the SkyView to have com's.

Q: Dynon shows the SV-COM-760 on their web page (Feb/2024). Is it an equivalent to the SV-COM-X25?

The SV-COM-760 is the new version of the SV-COM-X25.
