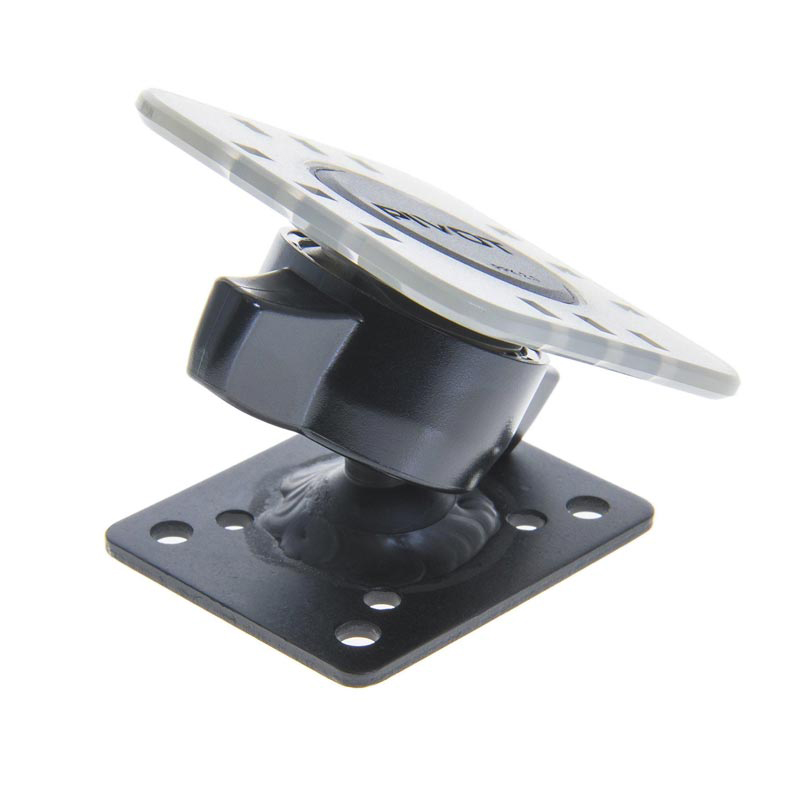

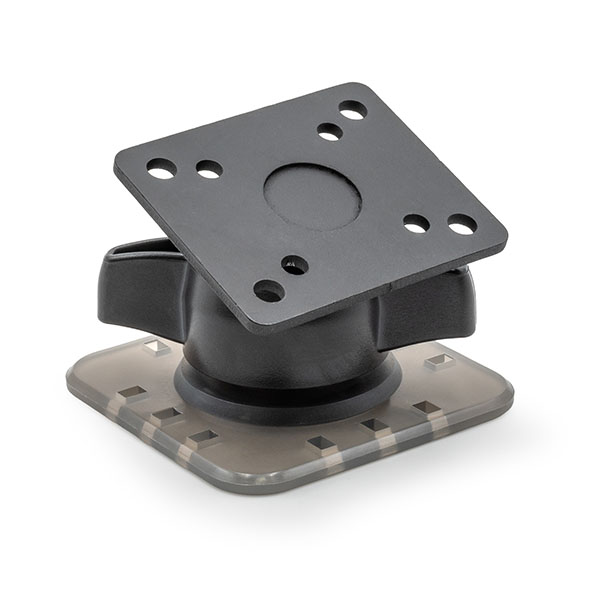

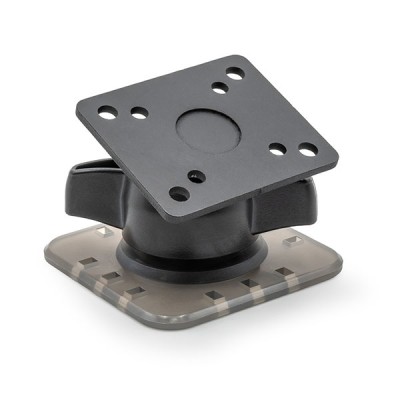

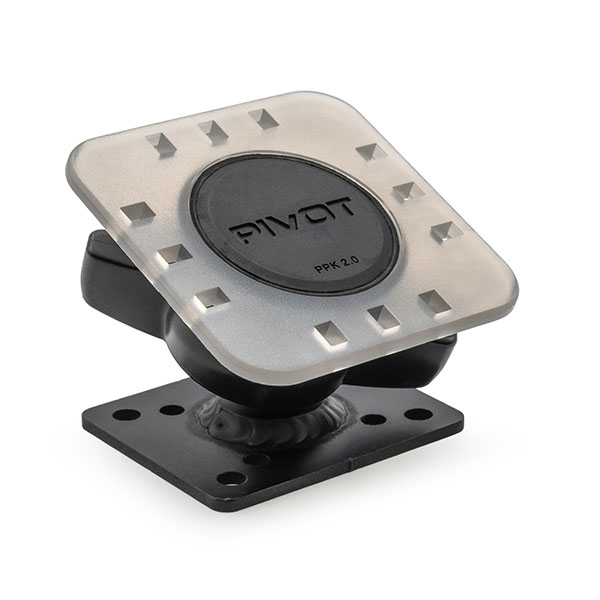

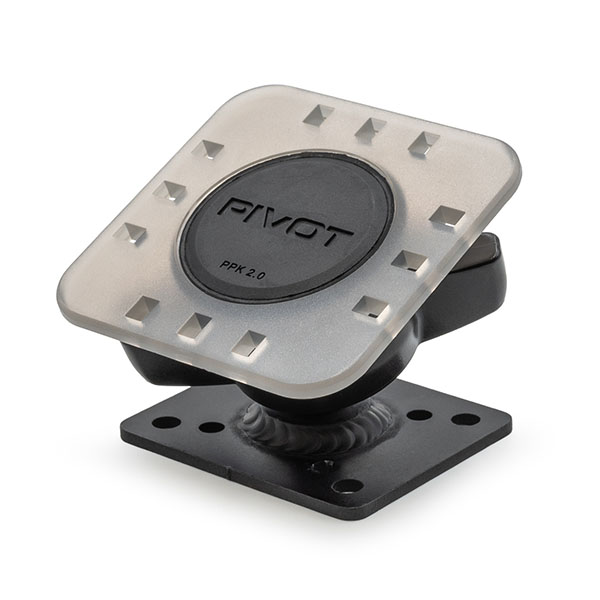

Flyboys Ppk Plate with Steel Amps Plate
$34.65/Each
Price Includes GST
Part# 11-19555
MFR Model# PPKAMPS
MFR Model# PPKAMPS
Overview
| The Flush Permanent Mount offers a durable, low profile, permanent mounting option. Can be mounted to certain aircraft yokes, instrument panels, or anywhere else that make sense based on the application. Depending on the aircraft and under what rules it is operated (Part 121, 135, etc), installation of this mount may require engineering and/or regulatory authority approval. |
Features
- Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, desktop, or other non-porous surface.
- Adjustable: Supports a wide range of device orientations and viewing angles.
- PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case.
- Durable Stainless Steel Base: Powder-coated for extra durability.
Specifications
- AMPS Plate Width: 1.69 in (42.50 cm)
- AMPS Plate Length: 2.00 in (50.80 mm)
- PPK-1 Mounting Plate Width/Length: 2.31 in (58.77 mm)
- Height (AMPS Plate + PPK-1 Mounting Plate): 1.50 in (38.1 mm)
- Weight: 2.03 oz (57.6 g)
- AMPS Plate: Stainless Steel
- PPK-1 Mounting Plate: Impact Resistant Polycarbonate
Compatability
- All PIVOT cases, past, present, and future.
