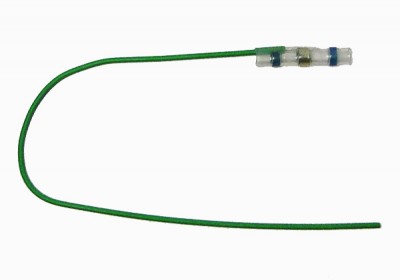

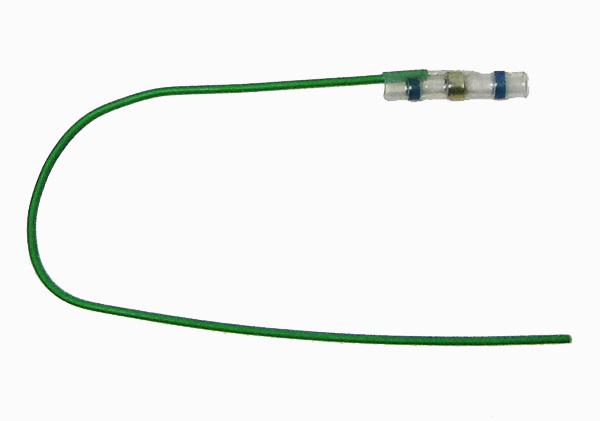

Single Conductor 1/8 Inch Soldering Sleeve With Pigtail

$1.98/Piece
Price Includes GST
Quantity
Add to Wishlist
Part# 11-12363
MFR Model# CWT-3-W122-5

Overview

Perfect for single conductor shielded cables used as daisy chains or audio / data lines and great for terminating "P Leads".

Note: Ring terminals not included.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Golden E Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

October 1, 2024

Great for grounding out the end of shielded wire

Ken M Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

July 9, 2024

Good for adding the shield connection. They can be a bit tight for some two conductor cables but work great for single conductor shielded.

Paul C Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

April 21, 2024

Excellent product, works very well. Quality part.

Michael H Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

February 14, 2024

Works very well , have used it in field wiring for generator.

Michael H Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

November 3, 2023

Eric O Verified Purchase

Single Conductor 1/8 Solder Sleeve With Pigtail

April 18, 2023

Saves DIY time for shielding wires.

Dan
April 9, 2020

Howard G
March 2, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of the pig tail?

6 inches

Q: What is the wire size of the pig tail?

22 awg.

Q: What OD of shielded cable fits inside this splice?

According to the manufacturer this is for single conductor 22 awg wire. For 2 conductor and 3 conductor we recommend the 1/4 inch part # 11-14743

Q: Would this accommodate 24awg shielded wire?

Yes, this will work for that gauge wire.
