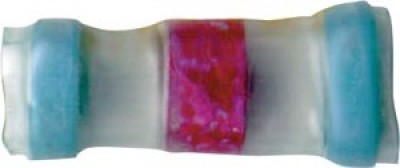

Raychem Solder Sleeve

From $0.95 to $1.63
Prices below incude GST
Description Part Number Price Buy
Raychem Solder Sleeve .125Sm
11-04480
$1.04
Quantity
Raychem Solder Sleeve .200Md
11-04481
$1.21
Quantity
Raychem Solder Sleeve .300Lg
11-04482
$1.79
Quantity
Subtotal $0.00
Add to Wishlist

Overview

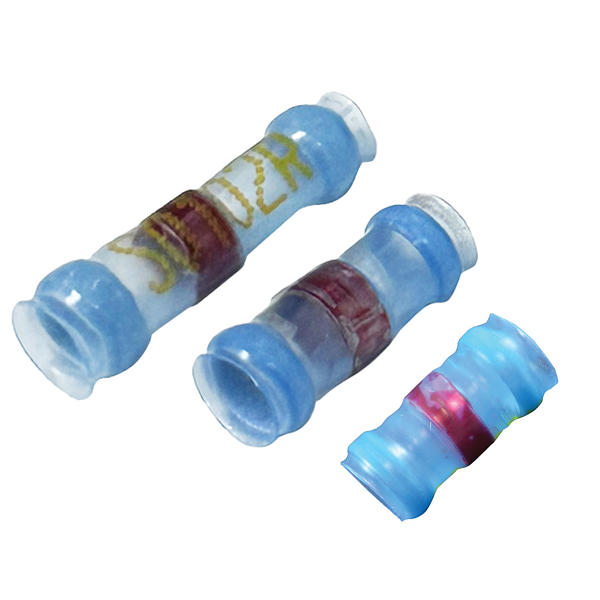

Raychem's Solder Sleeve one-step, heat-shrinkable wire and cable interconnection devices are a labor saving alternative to conventional wire and cable termination methods such as craft-sensitive, time-consuming, hand soldering or crimping. The one-step terminators create strong, soldered connections. They consist of a heat-shrinkable sleeve and a premeasured, fluxed solder band. When heated, the tubing shrinks and the solder melts, making reliable, insulated terminations.

M83519/1 Series.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Ali S Verified Purchase

Raychem Solder Sleeve .300Lg

November 30, 2024

Work great. Simply insert two wires and hit it with a heat gun. The body act like shrink tubing while the center “donut” of solder melts. The melting point of the solder is well below the melting temperature of the sleeve, but above the shrink temperature by a lot. When the solder melting temperature is met, it flows quickly. And, it seems like the center, red band clears letting me know it is hot enough Raychem recommends using a J hook fitting on the heat gun to have an even heat. I don’t bother and just move the gun around. Make sure not to move the wires until the solder solidifies to avoid a cold solder joint or the wires pulling out The sleeve can shrink down to about 60% of its starting diameter Great way to splice in longer wires or transition from shield to a DB connector terminal

Dan B Verified Purchase

Raychem Solder Sleeve .125Sm

July 22, 2022

I first starting using these wonderful solder sleeves during my Garmin G3X installation and now use them everywhere.

Robert F Verified Purchase

Raychem Solder Sleeve .200Md

September 23, 2021

I first starting using these wonderful solder sleeves during my Garmin G3X installation and now use them everywhere. I love them.

Robert F Verified Purchase

Raychem Solder Sleeve .125Sm

September 23, 2021

I use these a lot! A tad bit more trouble to use that the crimp kind but way more secure & nest looking too. Sometime I’ll slide a heat shrink sleeve over when I’m done just for extra peace of mind.

Ronnie
February 15, 2021

great help for soldering the pigtail to the shielded cable

Eric A
September 7, 2017

I am building an experimental. Just found these little sleeves and I think a great invention to assist in wiring the headphone jacks. adding the pigtails for grounding the tefzel shield

Eric A
September 7, 2017

They work great, but do take quite a bit of heat to get the solder to melt.

Aaron
July 5, 2020

Very necessary and they work but way too expensive

Alan C
April 14, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size wire is appropriate for the .125" 11-07902 small sleeve?

For the .125" solder sleeve we recommend 24GA - 22GA wire.

Q: Do these sleeves come with the black and white stripped pigtail for grounding the shield?

No, see part number 11-12363 for solder sleeve with pigtail.

Q: what size solder sleeves do you have for 12 and 14 AWG? It would be for soldering 12 AWG to 12 AWg and 14 AWG to 14 AWG

The part numbers 11-04481 or 11-04482 will work
