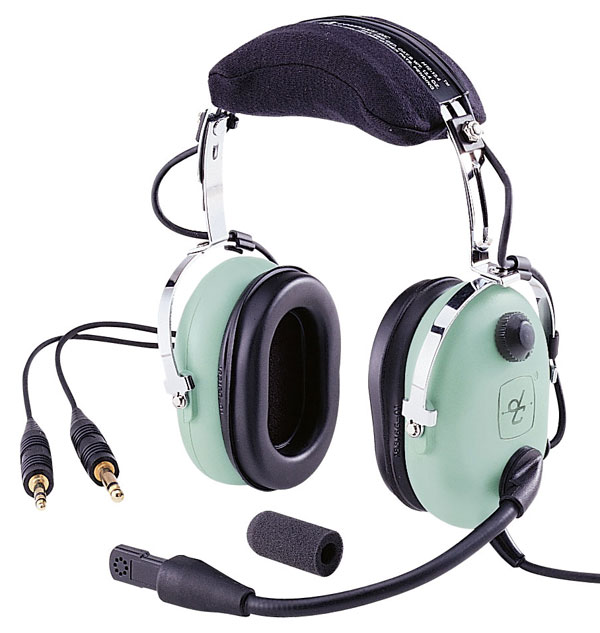

David Clark H10-13S Stereo Headset
MFR Model# 40422G-01
Overview
|
The H10-13S headset is a stereo version of the H10-13.4 headset, also with a straight cord and dual plugs. The H10-13S headset provides David Clark quality without the hot spots, clamping, or weight discomfort. It features a certified noise reduction rating of 23 dB and weighs only 16.5 oz. It features M-7A noise cancelling electret mic, and low profile volume controls with detent settings. The Super-Soft, Double-Foam Headpad will improve the comfort and “wearability” of all H10-series headsets. It is wider and more tapered with 60% more surface area in contact with the head to dissipate headset weight. Its unique center “hinge” actually lets the headpad “breathe” for greater comfort. It also eliminates irritation while wearing button-top baseball caps. The new Comfort-Gel Ear Seals have a patented undercut design and are 26% lighter and allow 30% more interior room for your ears, making for a quieter, more comfortable flight. |
Specifications
- Earphone Type: Dynamic
- Earphone Impedance: 150 ohms(300 each; wired in parallel)
- Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz
- Earphone Frequency Response: 200-5,500 Hz
- Earphone Plug: PJ-055 (.25" phone plug)
- Boom Type: Universal Flex
- Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware
- Noise-Canceling Mic: M-7A Amplified Electret
- Mic Impedance: 50 ohms +/- 20%
- Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
- Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
- Mic Plug: PJ-068 (.206" phone plug)
- Cord: 5 ft.Straight
- Weight/Headset Only: 16.5 oz.
Reviews
David Clark headsets have long had the best quality and comfort with the most reliability for the money in my opinion. The H13-S is the headset i use, I provide the same for my passengers. I chose Aircraft Spruce for the purchase because of the speed and dependability of delivery. My headset arrived on time as expected.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
David Clark headsets have long had the best quality and comfort with the most reliability for the money in my opinion. The H13-S is the headset I use, I provide the same for my passengers. I chose Aircraft Spruce for the purchase because of the speed and dependability of delivery. My headset arrived on time as expected
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Been a while since I bought a new headset! Wont wait so long next time. DC headsets are sturdy and trouble free
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
As a beginning student, I chose these for their quality and price point, as well as the recommendation of family members pilots. Because of hearing loss in one ear, I appreciate being able to set the volume separately on each side. The click stops on the volume controls mean not having to re-set them each time. Sound is crisp and clear. A high quality product and all I am likely to need for some time.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Great headset. Have owned a H10-13.4 for 20+ years without issue. Old headset broke, so 13.4 is now for the wife and bought the 13S for me. David Clark builds a solid product.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Clear reception and transmission. Very comfortable.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Will definitely order more products through pilot shop. The headset arrived very quickly and exactly what it said it was. As for the headset haven’t used it a lot yet but the little I have used it it’s by far the best set I’ve ever used, that’s not saying a lot since I’ve only used a few pairs at flight schools. It’s very comfortable and can hear clearly. There are probably better sets out there that’s more expensive but I’m very content with these ones and not sure how they would be better. I’ll probably end up buying another set at some point.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Great headset! Works well and very comfortable.
Verified Purchase
David Clark H10-13S Headset Dual Plugs Stereo H10
Headset fits comfortably and sound quality is excellent. Good noise reduction.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes the H10-13S has a switch for mono and stereo operation.
No, you must order the headset bag separately. It can be ordered under our part number 11-00642.
Yes, the headset comes outfitted with ear seals, mic muff, and a headpad. It comes equipped with dual GA plugs commonly found on most fixed wing general aviation aircraft.
The H10-13.4 is mono and the H10-13S is stereo. That is the only difference. The difference between mono and stereo is in the number of channels (signals) used. Mono uses one, stereo uses more than one. In monaural sound one single channel is used. It can be reproduced through several speakers, but all speakers are still reproducing the same copy of the signal. In stereophonic sound more channels are used (typically two). You can use two different channels and make one feed one speaker and the second channel feed a second speaker (which is the most common stereo setup). This is used to create directionality, perspective, space.
Yes, this headset is equipped with Dual GA plugs, which will work great with the Icom headset adapter.
Yes it does.
