Mypilotpro Aviator GoPro Mount
$87.95/Each
Price Includes GST
Part# 13-24492
MFR Model# MPP-25
MFR Model# MPP-25
Overview
|

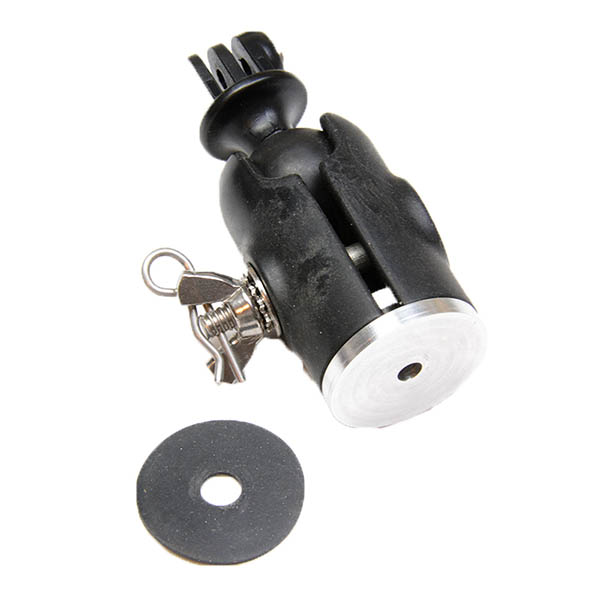

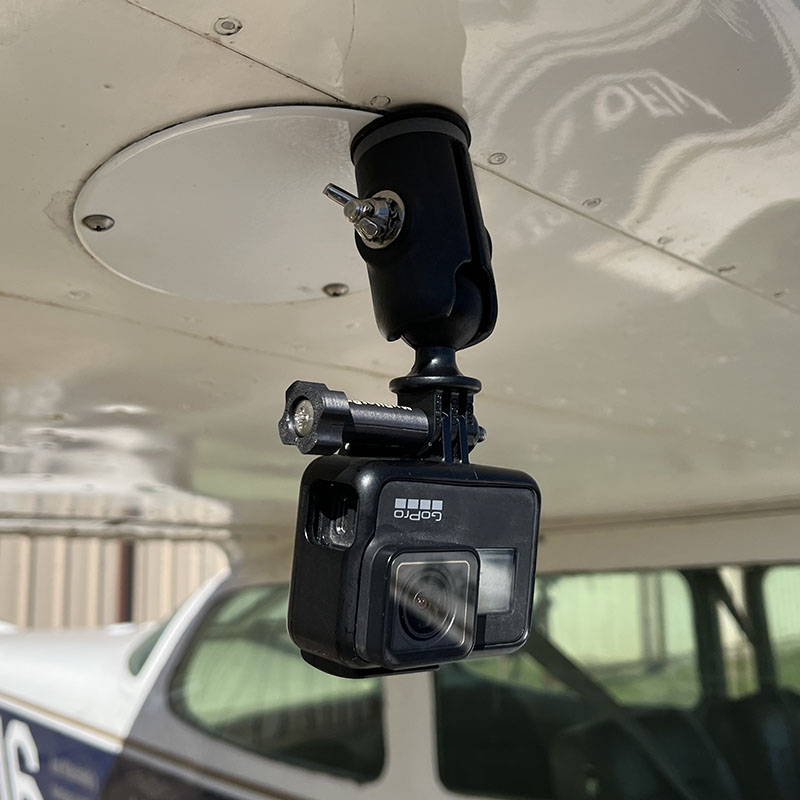

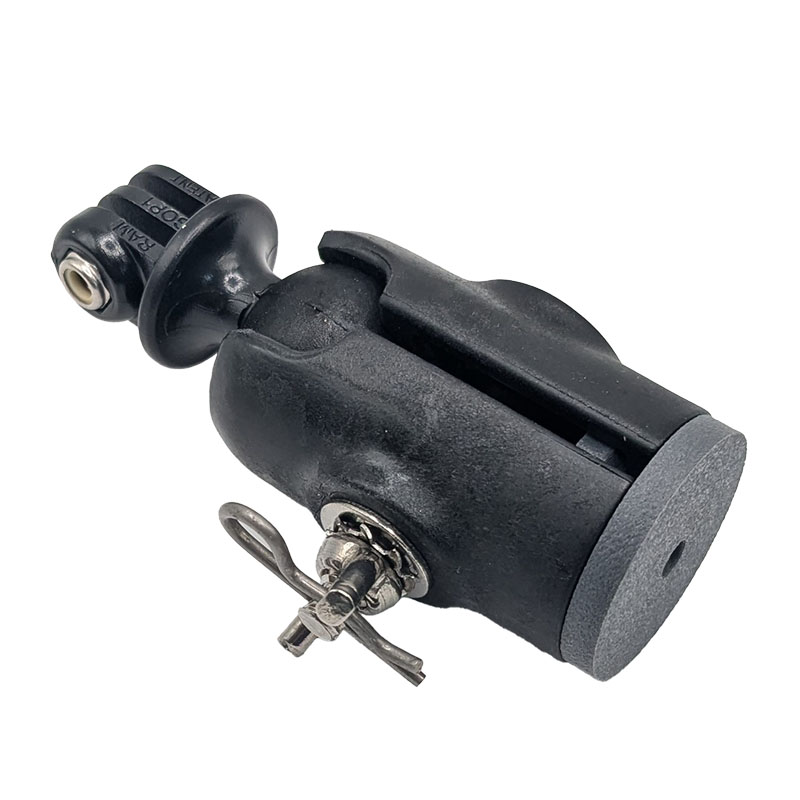

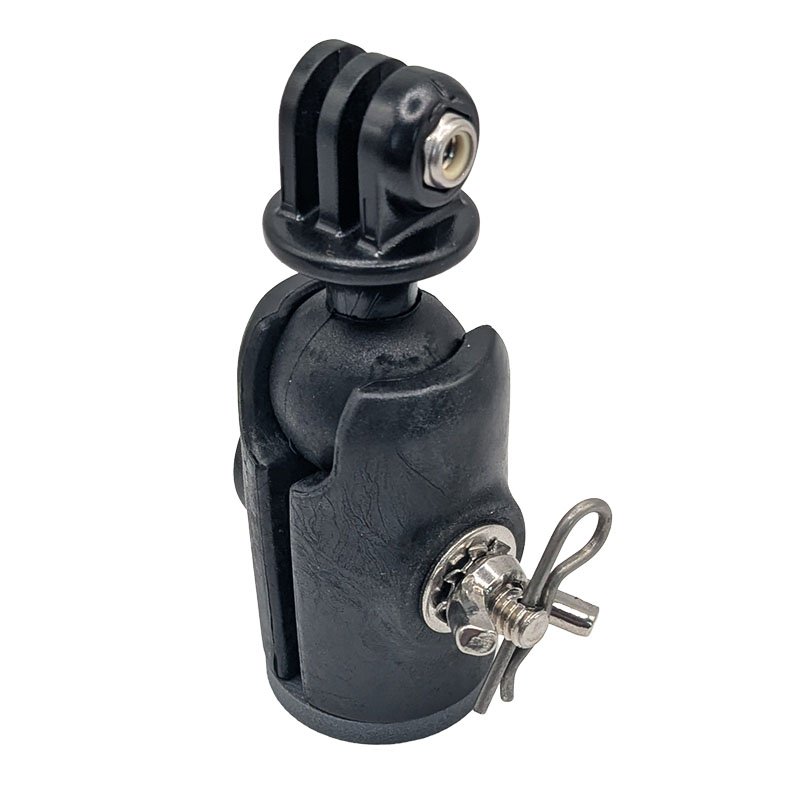

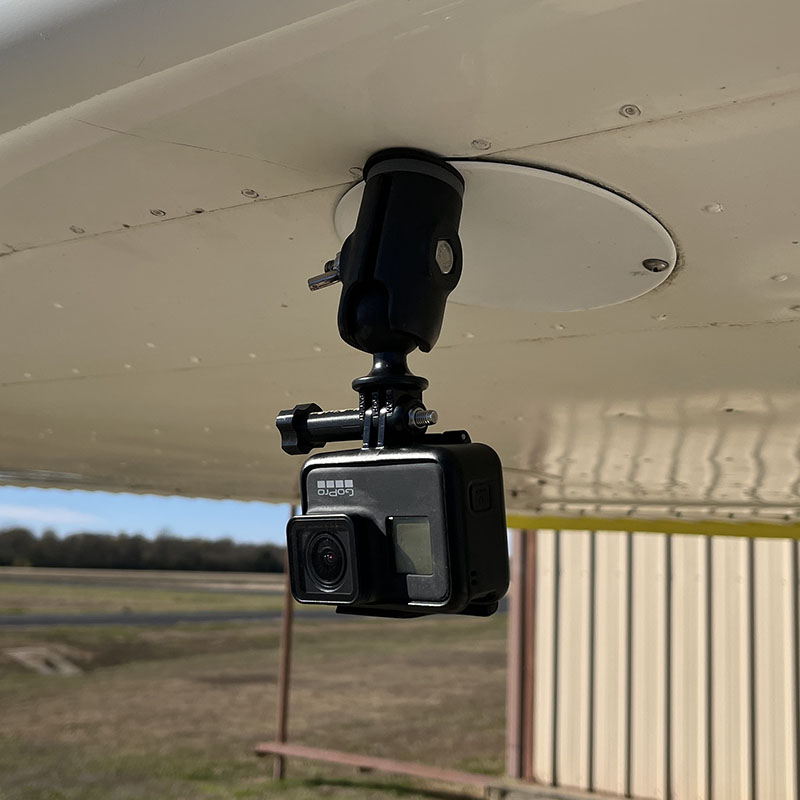

The MyPilotPro Aviator GoPro Airplane Mount attaches to an existing inspection plate on your aircraft. Each mount puck is precisely CNC milled from a single aircraft aluminum billet and is coupled with stainless steel hardware.

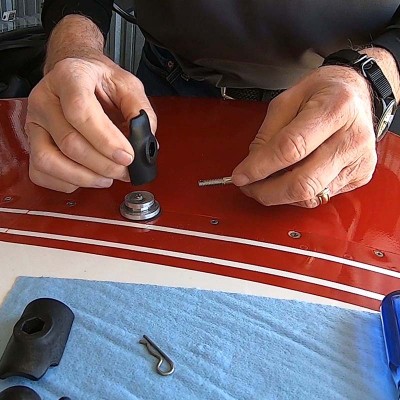

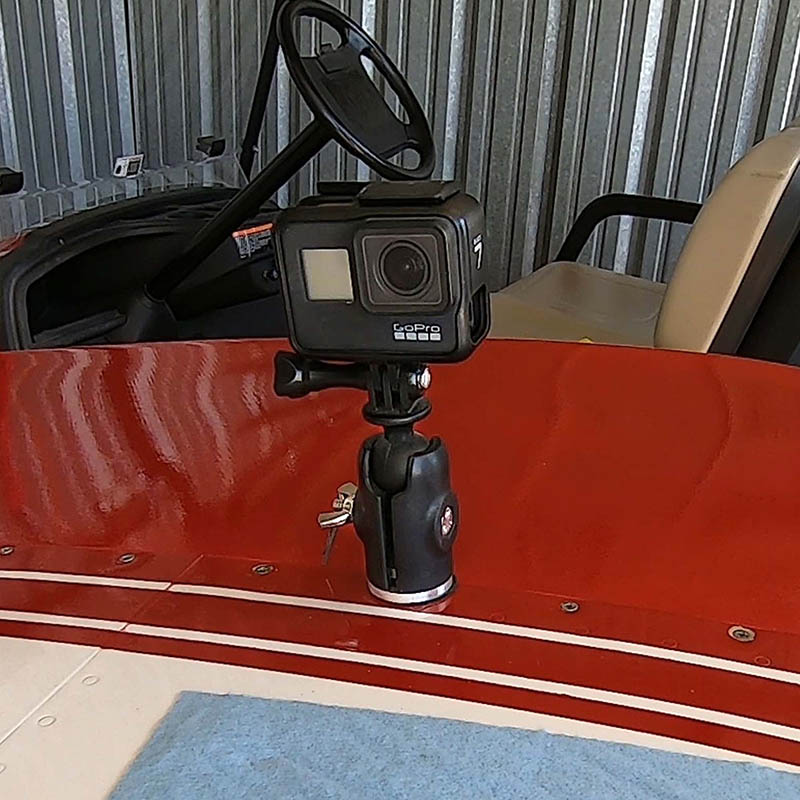

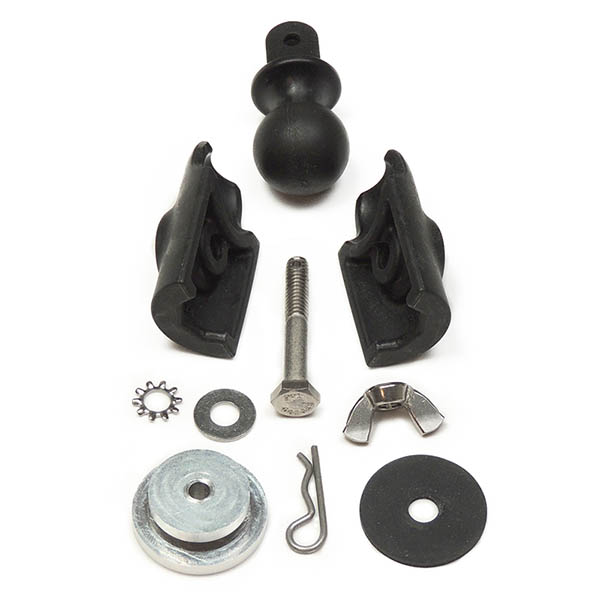

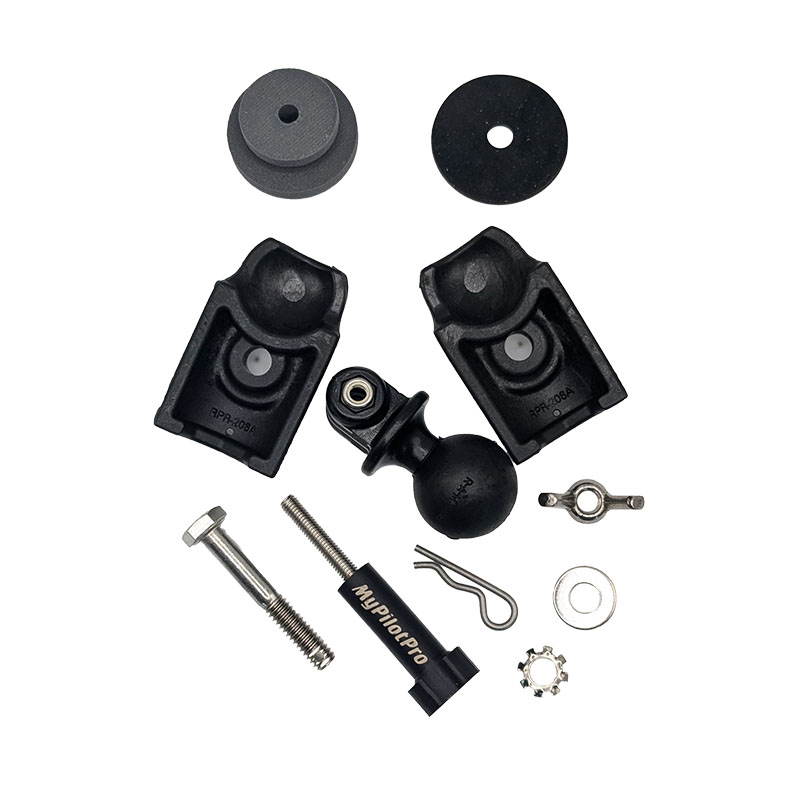

Easy to Securely Attach Attaching the MyPilotPro Aviator to an inspection plate is a straight forward process which should involve your A&P mechanic and a simple logbook entry. Disassemble the entire mount assembly so that the aluminum mounting puck is by itself. Unscrew an existing inspection plate screw (typically a #8 screw) and replace it with one that is 1/2″ longer (not included). Insert the replacement screw through the center hole in the CNC milled mounting puck. Ensure the neoprene washer is between the mount base and the inspection plate and screw the mounting puck assembly back into into the existing inspection plate threads. You can now reassemble the entire mount onto to the puck including the swivel arm halves, the swivel ball, and the stainless steel hardware. The mount also comes with a safety hair pin that prevents the mount from coming off the mounting puck. After you have reassembled the mount to the puck and firmly tightened the wig nut, insert the stainless steel hair pin into the hole at the end of the threaded bolt. The hair pin ensures that the wing nut securing the entire mount assembly to the inspection plate puck can not come loose. Universal and Compact This mount is compatible with all action cameras including GoPro and is universal for all General Aviation and Light Sport Aircraft. If your aircraft has an inspection plate, the MyPilotPro Aviator can attach to it. It weighs just 2.9 oz including all hardware and fits in the palm of your hand. |
Features
- Mounts to aircraft inspection plates
- Mount puck body CNC milled from a single aluminum billet
- Stainless steel hardware
- Our lightest exterior mount – 2.9 oz including all hardware
- 1.375″ wide and 3.5″ tall
