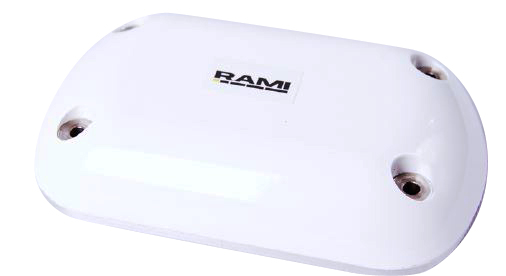

RAMI AV-801 GPS WAAS Antenna TSO

$383.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14354
MFR Model# AV-801

Overview

The AV-801 WAAS GPS antenna is designed specifically to meet FAA TSO-C190 specifications. Qualification testing includes meeting the requirements of RTCA DO-301 and DO-160G. The AV-801 fit and function matches the ARINC 743A standard found on many general aviation aircraft up to and including business jets.

Specifications

  • Application: WAAS GPS
  • Frequency: 1575.42 +/- 10.23 MHz
  • Impedance: 50 Ohms
  • Gain: 26.5-30.5 dB
  • VSWR: 1.5:1 Max
  • Polarization: Hemispherical
  • Noise Figure: 2.5 dB
  • DC Voltage: 4.5 to 14.5 VDC
  • DC Current: 40mA Typ. / 60mA Max
  • Connector: TNC Female
  • Max Height: 5.0 Ounces
  • FAA TSO: C190

Reviews

great price, quality parts

Lumanair A
January 24, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of the AV-801?

5 ounces

Q: Does RAMI AV-801 work with GTN750?

Per the manual, it is not listed in the approved GPS/WAAS Antenna List.
