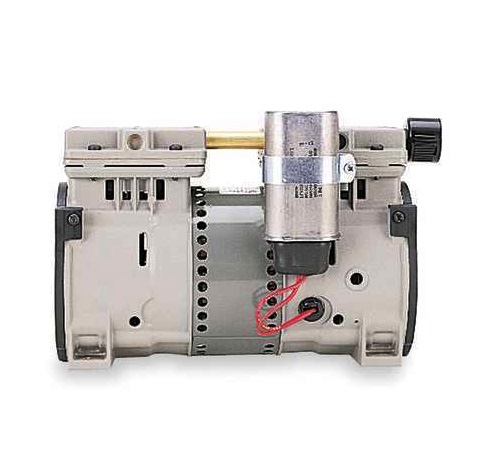

Thomas 2688Ve44 Piston Air Compressor / Vacuum Pump

$1335.40/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 01-01570
MFR Model# 2688VE44

Overview

Unit features rugged flexible piston cup and shaded-pole motor with high-torque start windings. Corrosion-resistant sandwich valve stops foreign particles from lodging on valve seats. Aluminum cylinder heads and pistons.

Features

  • HP 1/3
  • Voltage 115VAC
  • Hz 60
  • Phase 1
  • Full Load Amps 3.2
  • Inlet Size 1/4" NPT
  • Outlet Size 1/4" NPT
  • Max. Vacuum 29" Hg
  • Free Air CFM @ 0 In. Hg 1.60
  • Free Air CFM @ 10 In. Hg 0.98
  • Free Air CFM @ 20 In. Hg 0.48
  • Overall Length 9-5/8"
  • Overall Width 6-3/4"
  • Overall Height 7-1/10"
  • Cylinder Material Aluminum
  • Number of Cylinders 2
  • Motor Type Shaded Pole, Thermally Protected with High Torque Start Winding
  • RPM 1750
  • Sound Rating 63 dBA @ 60 psi
  • Lubrication Type Oil-Less
  • Finish Gray
  • Valve Corrosion Resistant Sandwich
  • Standards UL
  • Temp. Range 104 Degrees to 50 Degrees F
  • Thermal Protection Yes
  • Power Cord Yes
