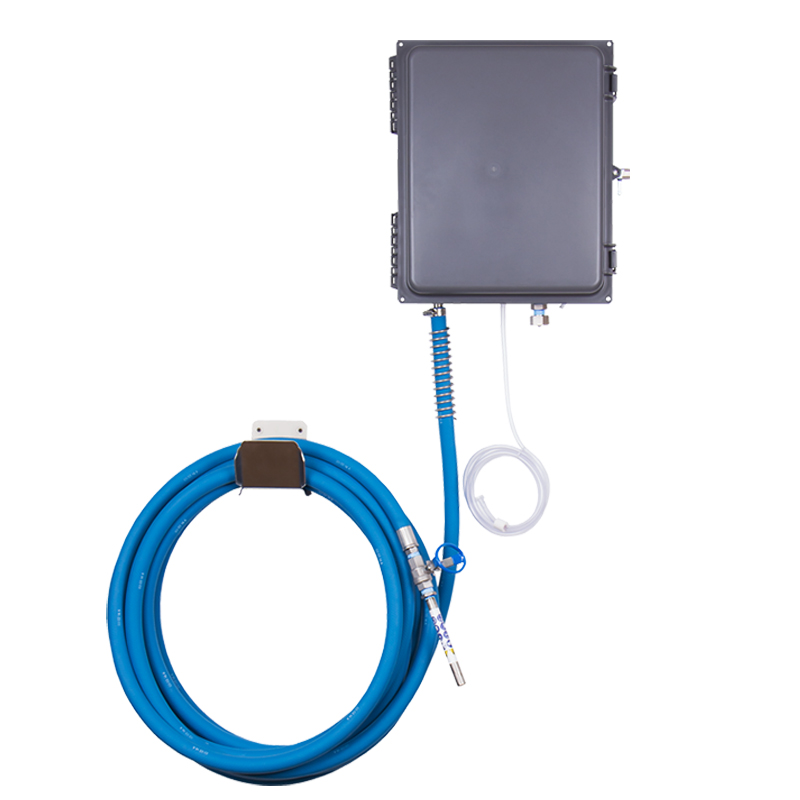

FoamIt Wall Mounted Foam Unit-Concentrate-Santo-75 Ft Hose
$1526.80/Each
Price Includes GST
Part# 09-06203
MFR Model# FI-WC-75
MFR Model# FI-WC-75
Overview
| FoamIt Wall Mounted Foam Unit-Concentrate-Santo-75 Ft Hose |
Features
- Draws from concentrated product
- Dilutes at ratios of 14:1 to 320:1
- Powered by compressed air
- Stainless steel ball valve and wand
- Stainless steel fluid fittings
- Quick-change pump
- Consistent, reliable dilution rates, regardless of changes in water pressure
Specifications
- Power Type: Compressed air
- Chemical pickup type: draws from concentrated product
- Dilution ratio range (water:chemical)*: 14:1 to 320:1
- Number of products unit can draw from (and whether it draws simultaneously or one at a time): One product
- Suction line length/diameter: 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- Discharge hose diameter/length: 50 ft. (15 m) hose, with 3/4 in. (19 mm) inside diameter)
- Discharge wand/tip type: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
- Output distance: 25-30 ft. (7-9 m)
- Output volume: 20-45 gal/min (75-170 l/min) of foam
- Flow rate*: 2 gal/min (7.6 l/min))
- Pump seals: Santoprene, Viton, or Kalrez
- *Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
