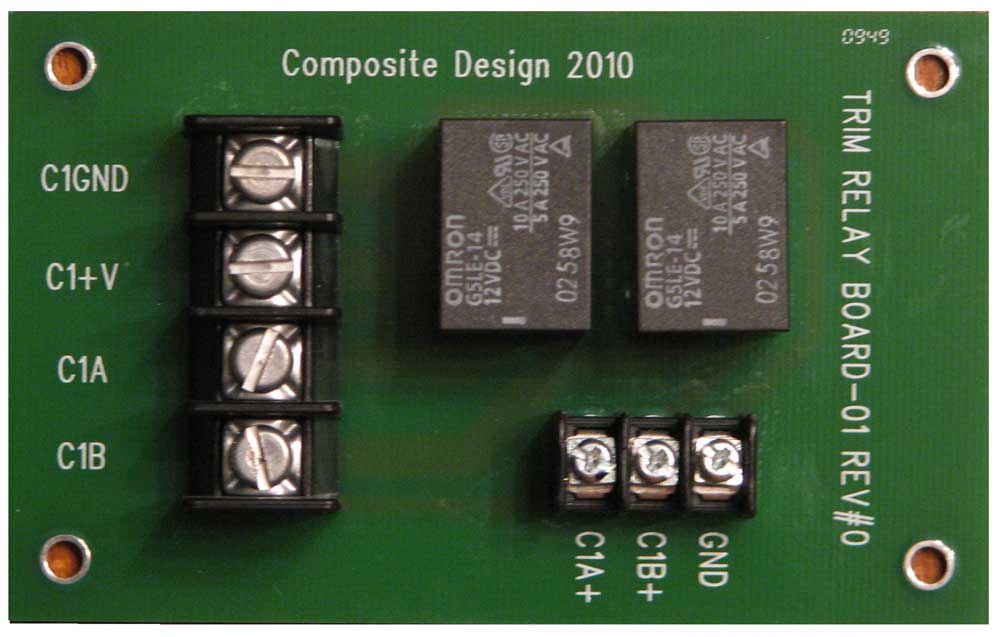

Single Axis Trim Relay Boards
Overview
| These Trim Relay Boards allow control of an aircraft’s trim motors from the typical switches found in most stick grips. As the switches in the grips are too small to handle the motor loads and usually do not have the required number of poles, the ‘TRB’ offers a simple, elegant solution that is easy to wire and understand. The boards have a per axis rating of 10A at 12 volts, (24V units are also available). |
Specifications
- 4.00”L x 2.50”W x 1.00”H
Documents
- Wiring Diagram (PDF)
Reviews
Easy to install, does the job. Quicker and tidier than knocking up a DIY relay module. Eliminates the need for a changeover switch to isolate pilot or copilot trim inputs.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the wiring diagrams are included in the package. We have also added a PDF of the diagram to the Documents tab of this web page.
Per the manufacturer: Answer is yes - not a problem. We might add that the pilot can also defeat the copilot by simply switching the common switch wire open.
