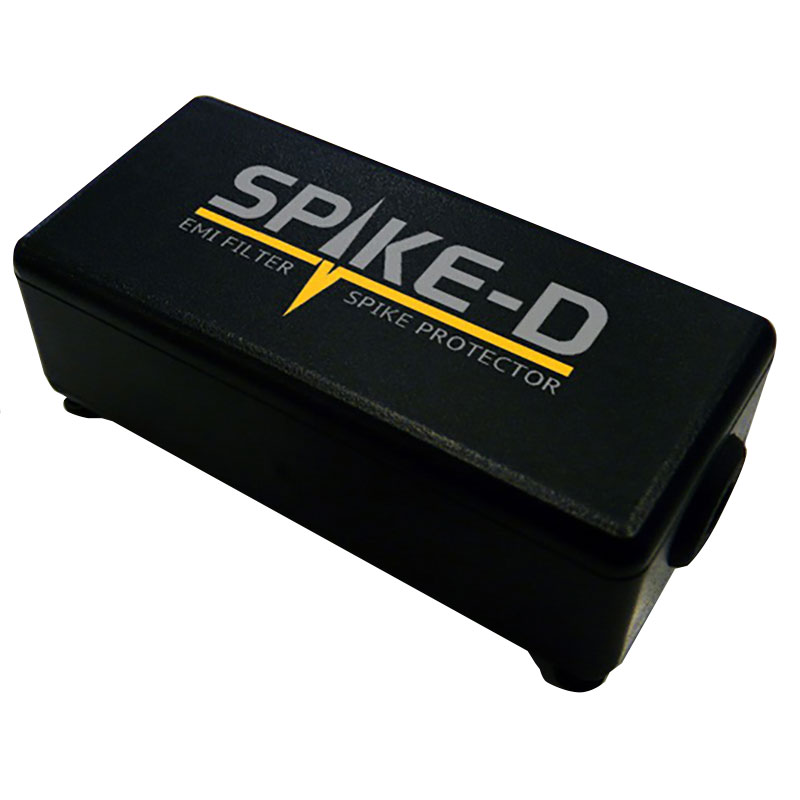

Aveo 2-In-1 Emi / Overvoltage Spike-D Module

$218.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14460
MFR Model# AVE-OVUBWB24C-20A

Overview

2-in-1 EMI/OverVoltage Spike Module

Spike-D can be use with lights:
  • Ultra Galactica, Ultra Embedded Galactica, Ultra Aurora, Ultra Embedded Aurora, LSA, Andromeda
  • PowerBurst, PowerBurst Plues, Gliderburst
  • PosiStrobe CP Aurora, PosiStrobe CP Galactica, PosiStrobe XP, MiniMax
  • RedBaron XP Aurora, RedBaron XP Galactica, RedBaron Maxi, RedBaron Mini, RedBaron MaxiMini (NOT HISL!!)
  • R2D2
  • AveoMaxx
  • Vega TL, Vega TLR, Vega Helo
  • All EyeBeam series


For Experimental Aircraft

Specifications

Unit characteristics: 2 channels Overvoltage Protection
Dimensions: 80,4 mm x 31,4 mm x 23 mm / 3.16" x 1.24" x 0.9"
Voltage range: 9..36VDC
Voltage protection:
  • Transcend voltage: 150V at 2second max, both polarities;
  • Under-voltage protection lockout: 7.4V;
  • Under-voltage protection relies: 8.2V;
  • Over-voltage protection lockout: 44.3V;
  • Over-voltage protection relies: 41.6V;
  • Reverse connection protection: 80V, not less;
Over current protection: 5A, not less

Performance:

  • Filtration DO 160G, chapter 21, Emission of Radio Frequency Energy: More than 10dB;
  • Output current, not less than:
         Steady: 4A per channel;
         Pulse 1/3: 5A per channel;
  • Output power, not less than:
         Steady: 4A at 9..36VDC per channel;
         Pulse 1/3: 5A at 9..36VDC per channel;
  • Input power, not more than:
         Steady: 4A at 9..36VDC per channel;
         Pulse 1/3: 5A at 9..36VDC per channel;
Warm up time: 0.5sec
Ambient temperature: - 40°C..+85°C
Overheat protection: +85°C

Wiring:
    a. wire type: FEP High Temperature teflon wire, 20 AWG
    b. wire length: min. 10 inch (280mm)
Wire color code:
1. Input, power supply side:
    a. 20AWG Green +9…36V, first channel input
    b. 20AWG Orange +9...36V, second channel input
    c. 20AWG Black Common return VRTN to power supply for first and second channel
2. Output, light side:
    a. 20AWG Red +9…36V, first channel output
    b. 20AWG Yellow +9…36V, second channel output
    c. 20AWG Black GND light
Please, do not connect black wires from input and output together.
