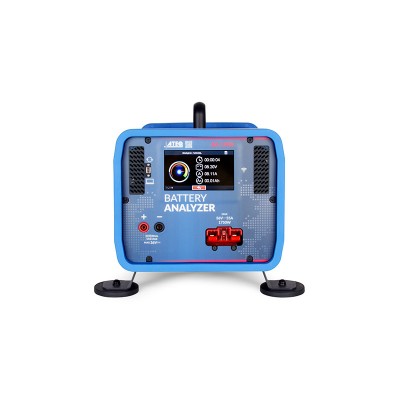

Main Image
Main Image
Thumbs 1
Thumbs 1

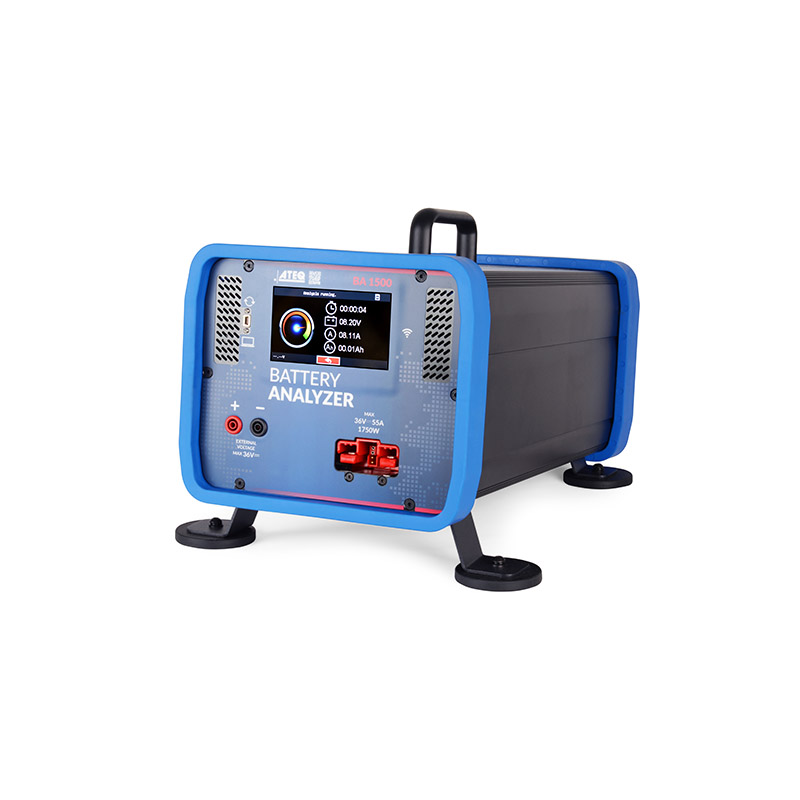

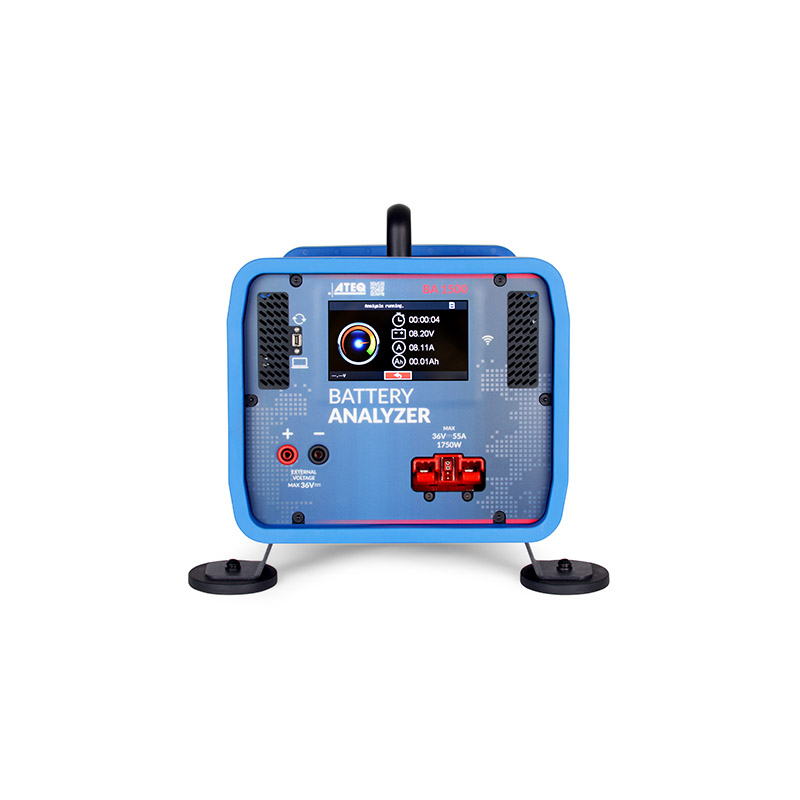

BA 1500 Battery Analyzer for Aviation Lead Acid Batteries

0 Reviews 0 Answered Questions
$6545.00/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-20524
MFR Model# BA-1500

Overview

The BA 1500 is an all-in-one battery analyzer combined with a robust design. It fits all battery analyze needs in hangar or on tarmac. The icon based interface allows any technician to begin as an expert. No training required. The BA 1500 Scientifically analyzes battery performance with a true constant current battery capacity test. The device is fully automatic plug & play ; no set up required.

Features

  • ANODIZED ALUMINUM BODY - Guaranteed longevity
  • 4,3’’ LCD, Touch screen, color display
  • Connectors for update & accessories
  • Charging cable connector
  • Metal handle
  • Power socket
  • Polymer protective end covers
  • *Wi-Fi Connection

Specifications

User interface: 4,3’’ LCD Touch screen Color display
Icons based with no text messages
Buzzer
27 languages available
Housing: Aluminum body with metal handle
Anti slip, shock proof rubber sides
Dimensions: 230 x 200 x 470mm
Weight: 10Kg (without cables)
Temperature: Usage: -10 to +40°C - storage: -30 to +60°C
Humidity: 20 to 80 % non condensing
Noise level: 65dB at 40A
Features: Software updates, printer, 2D scanner
Output: Range of 1 to 36V
Limited current: 55A
Easy plug connector
Max voltage: 36 VDC
Max current: 55 Adc
Max power: 1750W
Input: 24V - 2,5A - 60W (for worldwide networks)

Benefits

  • Wide range of batteries available from our embedded database.
  • BC 1500, compliant with all battery manufacturer.
  • Safety: internal features and security components protect the user and the device against problems (reverse polarity, voltage and current monitoring, ...).
  • Traceability: the user can easily manage the batterie charger. All batteries are separately identified for their entire life time.

Scope of Delivery

  • BA Device (Ref. 00408)
  • Quickstart (Ref. D2-0264)
  • External voltage measurement cables (Ref. EG-0400)
  • Cable for update - Mini USB (Ref. EG-0701)
  • Power cable US Type (Ref. 6440265)
  • Power cable EU Type (Ref. 6440264)
  • Power cable UK Type (Ref. 6440266)
  • Power supply (Ref. 6440130)
  • Universal DC output cable - Grid GPE80 to Tyco 647845-4
  • -1.2m (4.0ft) (Ref. 10650001)
  • Battery adaptor cable with 5/16 (7.9mm) ring terminal connectors
  • -0.3m (1.0ft) (Ref. 10660000)

Optional Accessories

  • Battery adaptor cable with Rebling 7017-2 connector
  • -0.3m (1.0ft) (Ref. 10660001)
  • Battery adaptor cable with quick connector (Ref. EC-0661)
  • -0.3m (1.0ft) (Ref. 10660002)
  • Thermal printer, cable included (Ref. 6580101)
  • 2D Scanner, cable included (Ref. EZ-0247)
