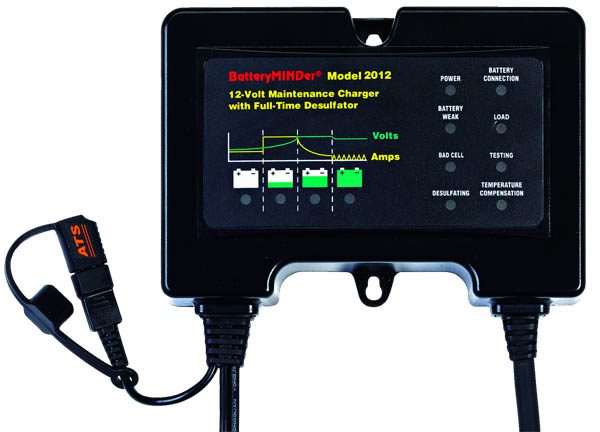

BatteryMINDer 2012-Obd2 12V 2A 2000 Series + Obd2Sae

1 Review 3 Answered Questions
$119.32/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14491
MFR Model# 2012-OBD2

Overview

BatteryMINDer® 2012-OBD Keep your battery charged-maintained without lifting the hood! With all newer vehicles being equipped with an On Board Diagnostic port (OBD) )*, batteries can be both charged and maintained by BatteryMINDer® brand maintenance charger – desulfators, without needing to make direct contact with the battery posts or even lifting the hood. Cars and trucks that may not be driven for weeks or months will typically cause batteries to run down, unable to start the engine especially in cold weather. They will also have become sulfated** permanently affecting their life and performance. By plugging in any of the four (4) BatteryMINDers equipped with the universally matching OBD plug, batteries will first be fully charge and then maintained at 100% capacity, for weeks or months without ever overcharging. In addition, all models feature full-time automatic desulfation extending new battery life by as much as 4 times as well as improving performance of older batteries. All BatteryMINDer models are covered by a one (1) year Money-Back Guarantee and five (5) year “no hassle” warranty.

*(typically located under or adjacent to the steering column)
**sulfation is considered the major cause of both shortened life and performance of all lead- acid based batteries including sealed maintenance–free, AGM and Gel types. (Battery Association of America June 1992)

Features

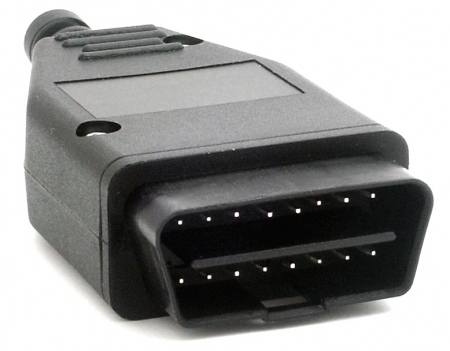

  • SAE to OBD2 Connector. Enables you to keep your battery maintained via your vehicle’s onboard OBD2 Connector.
  • Guaranteed to never overcharge, regardless of how long connected.
  • Temperature compensation ensures proper charge in hot or cold environments.
  • Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes. Optional "at the battery" sensor is also available for greater accuracy when battery and charger are not in same ambient temperature environment.
  • Diagnostic LED indicators for power, polarity reversal, battery weak, load, bad cell, testing, desulfating, temperature compensation, charging stage and charge level.
  • Maximizes battery life and capacity, reconditions weak batteries.
  • Automatic high frequency (not high voltage) pulse desulfation (U.S. patented.)
  • Plug 'n Run operation-no buttons to push.
  • Weatherproof / water and intrusion resistant to International Standard IP65.
  • FCC certified.
  • Microprocessor controlled ensures accurate-precise charging and maintenance during entire lifetime of unit.
  • Maintains up to six batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire2.
  • Extremely efficient, low operating costs.
  • Automatic disconnect and resume if AC power is interrupted.
  • Short circuit, spark, polarity and thermal runaway protection.
  • Built-in Battery Condition Indicator.
  • Worldwide 100-240 VAC 50/60 Hz input.
  • 6' AC cord, 6' DC cord with quick connector (SAE).
  • IMPORTANT INFORMATION ON USING PRODUCT OUTDOORS: Weather-tight enclosure. Always mount units in vertical position with cord sets exiting downward to ensure weather tight integrity. Unit must be mounted this way to ensure long term trouble-free life including weatherproof integrity. Mounting in any other manner or using unmounted (parallel to ground) except indoors may cause unit to fail due to water intrusion that is unable to drain correctly to avoid damage.

Specifications

  • Volts: 12V
  • Amps: 2A
  • Power Source: 100-240 VAC, 50-60Hz
  • Temperature Compensation: Yes: -20°C / -4°F
  • 50° / 122°
  • Multiple Batteries (#): 6 w/o OBD2 Connector
  • Warranty: 5 Years
  • Works With: All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries

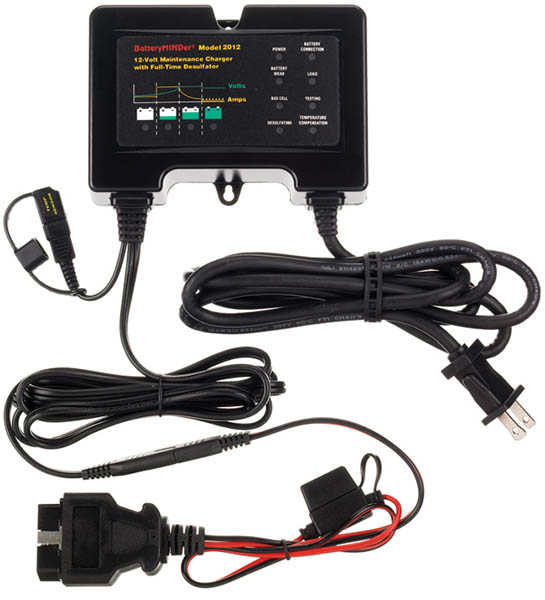

  • Comes with:: OBD-2 Connector with Quick Connector, BC-2410: 2' Non Fused Battery Clip Cord Set with Quick Connector,RTA-2415: 2' Fused Ring Terminal Cord Set with Quick Connector,, ATS-1: Ambient Temperature Sensor

In The Box

  • BC-2410: 2' Non Fused Battery Clip Cord Set with Quick Connector
  • ATS-1: Ambient Temperature Sensor

Reviews

Submit a Review

Purchased item had missing part. CPS customer service arranged to get missing part shipped to me.

William B
July 27, 2020

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have the Concorde 12V Recombinant Gas Lead Acid Battery, RG-35A XC. Is this the right battery minder? Ive heard these can be brand specific but maybe thats the interface kit, and if so, can you let me know what interface kit would go with that battery?

You would want part # 11-19239 for that battery.

Q: I have a Gill LT7035, would this BatteryMINDer 2012-Obd2 12V 2A 2000 Series + Obd2Sae work for me?

No the recommended charger would be Part# 11-14348.

Q: I have a Gill G-25 battery, which charger is suggested for the G-25?

Part number 11-09985 or 11-19242 would work.
