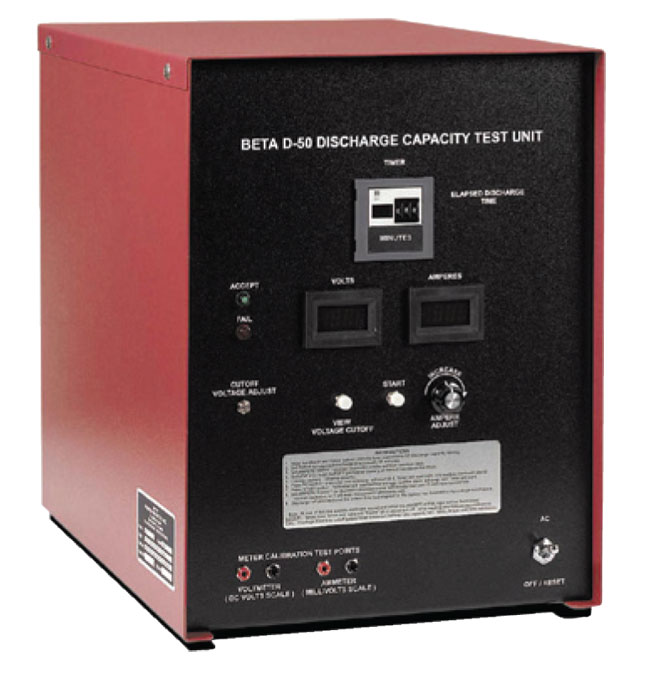

Power Products Beta D-50 Battery Analyzer 50 Amp

0 Reviews 0 Answered Questions
$3294.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-13889
MFR Model# D-50

Overview

Discharge capacity tester for all types of Nickel Cadmium, sealed or vented Lead Acid aircraft batteries

Features
  • Services any voltage or type of battery.
  • Constant current discharge adjustable from 0.1 to 50 amperes.
  • Selectable low voltage cutoff.
  • Selectable discharge time from 1 to 999 minutes with digital elapsed time readout.
  • Audible alarm at end of test. Meters & timer lock-in their reading for amp-hr capacity.
  • Accept and Fail lights for simplified GO/NO-GO test.
  • Operates on either 115 or 230 VAC.
Operation
  • Set discharge time.
  • Set low voltage cutoff.
  • Set discharge current.
  • At end of test, observe Accept/Fail light or check the battery’s amp-hr capacity on the locked-in digital meters.
Controls
  • Low voltage cutoff selector.
  • Digital discharge timer, 1 to 999 minutes.
  • Multi-turn discharge current selector.
  • Digital voltmeter and ammeter.
  • AC switch.
  • Accept/Fail and On/Off lights.
  • AC line selector - on rear, 115 or 230V.

Specifications

  • Model and P/N: BETA D-50.
  • Adjustable 0-50 amp discharge, accuracy ± 0.1 digit.
  • #8 AWG DC battery cable with “Elcon” type connector.
  • AC input: 4A @ 115V, 2A@ 230V 50/60Hz.
  • NSN: 6130-01-462-6337; 6130-21-258-4430 (Canada).
  • Dimensions: 10¼”L x 14”H x 15”D.
  • Weight: 30 lbs.
