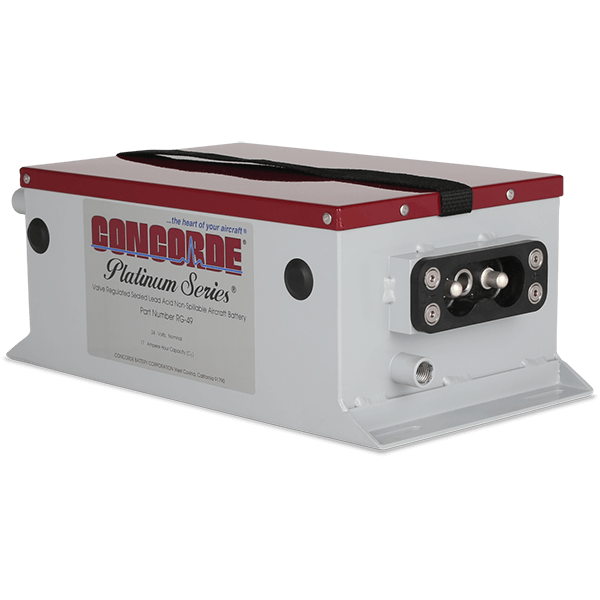

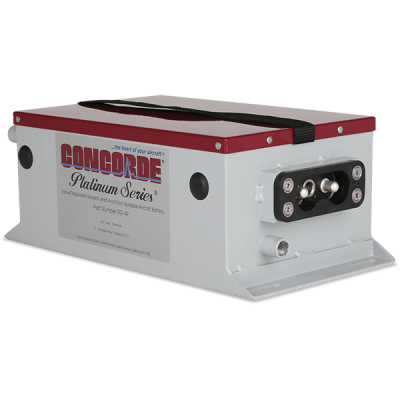

Concorde RG-49 Aircraft Battery

$3679.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11619
MFR Model# RG-49

Overview

RG-49 is a certified higher capacity dual battery replacement for RG-46. Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting.Constructed with Concorde’s proprietary PolyGuard Microporous Polyethylene Separator, shielding the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature. PMA/TSO
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free AGM battery
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness

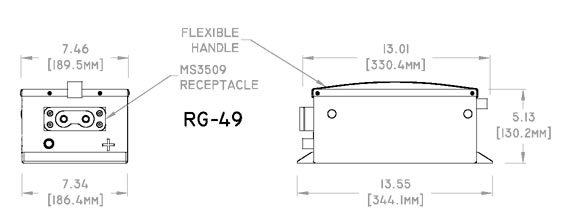

RG-49 is a fire resistant battery with a powder coated aluminum container with riveted cover. Two metal foot brackets are welded to the battery container on each side. Vent tubes are integrated into the container. MS3509 terminal receptacle.

Specifications

  • Primary Aircraft Purpose:Turbine Starting Aircraft Battery
  • Voltage:24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 17.00
  • Max Weight: 42.00 lb / 19.1 kg
