EFII Ground Bus

$69.03/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 07-19993
MFR Model# GB-1

Overview

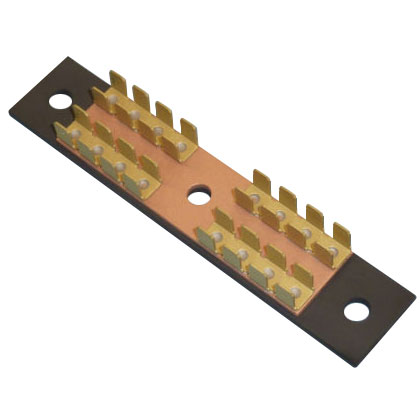

The EFII Ground Bus, part number GB-1, Is a great addition to a well designed wiring system. The GB-1 is a nicely designed "forest of tabs" type grounding junction that can clean up and organize all your avionics and system ground wires. Many people use two of these devices to lay out their grounding scheme. One for avionics or small signal grounds, and one for higher current grounds, such as lighting, strobes, pitot heat, etc.

Features

  • Nicely designed common ground bus.
  • Can be mounted in a self grounding fashion by using the center mounting hole as part of your firewall pass-through ground bolt mounting.
  • Can be mounted as a fully isolated ground bus using the outer, insulated mounting holes.
  • Provides thirty two 1/4" male spade type connection points.
  • Brass terminals are soldered onto a 0.062" thick x 1" wide copper grounding bar.
  • Insulated ABS plastic base measures 5 3/8" long x 1 1/8" wide.
  • All Mounting holes are 1/4" (can easily be drilled out to larger sizes).
  • Outer mounting hole spacing is 4.6" on center.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

The EFII Ground Bus is well built and good quality.

Gary K
September 9, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this made of brass or copper and does it come with a bolt, washer, & nut?

It has brass terminals soldered to a copper bar. It has 1/4 mounting hole for the bar but hardware is not included.
