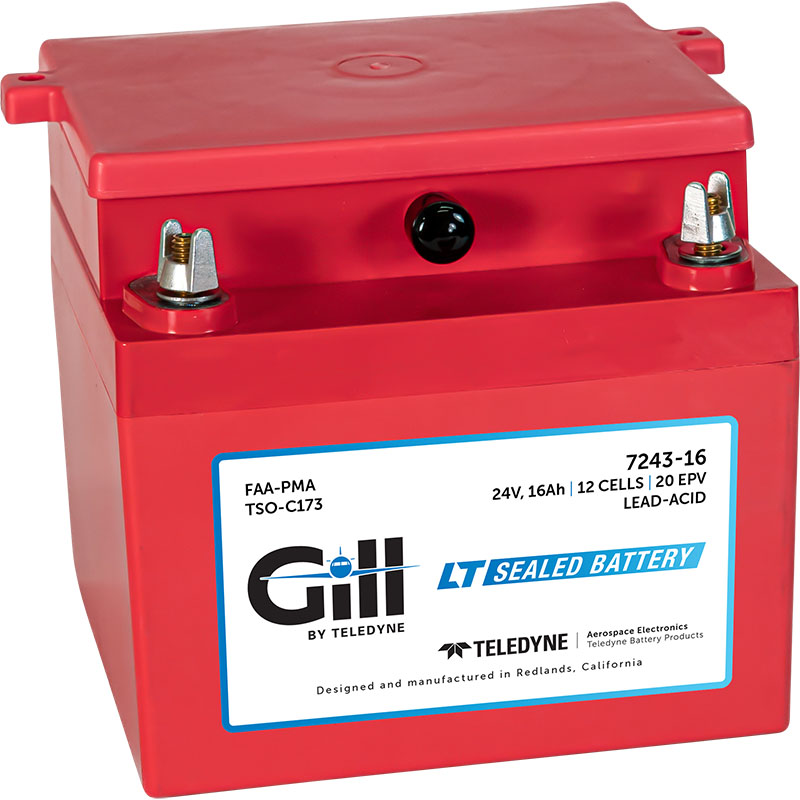

Gill 7243-16 LT Sealed Lead Acid Battery

10 Reviews 6 Answered Questions
$1130.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-12210
MFR Model# 7243-16

Overview

  • The 7243-16 is a “sealed lead acid battery upgrade” to the popular Gill® G-243
  • Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7243-16 for your 24V Cessna, Cirrus, Piper, Mooney, Commander, Diamond, True Flight Holdings LLD and Maule piston-powered aircraft. See application chart link to locate your aircraft and review your battery options.

MODEL VOLTS AMP HOURS 30 MINUTE CAPCITY WEIGHT Lbs. BATTERY DIAGRAM
7243-16 24 16 25 29.9 Full Battery Specifications

Application Guide

Manufacturer Model PMA SUP. #
Cessna 152, A152, 172N, 172P, 172Q, 172R, 172RG, 172S, F172N, F172P, FR172K, R172K, 182S, 182T, R182, T182, T182T, TR182, A188B, P210N, T303 58
Cirrus SR20, SR22, SR22T, SR 22, SR 22T, SR 20 58
CPAC, Inc. 114B, 114TC 58
Diamond DA 40, DA 42 58
Maule M-4-180V, M5-180C, M-5-235C, M-6-180, M-6-235, M-7-235, M-7-235A, M-7-235B, M-7-235C, M-7-260, M-7-260C, M-8-235, MT-7-235, MT-7-260, MX-7-160, MX-7-160C, MX-7-180, MX-7-180A, MX-7-180AC, MX-7-180B, MX-7-180C, MX-7-235, MXT-7-160, MXT-7-180, MXT-7-180A 58
Mooney M20J, M20K, M20L, M20M, M20R, M20S, M20TN 58
Piper PA-46R-350T 65
Piper PA-28-161, PA-28-181, PA-32-301FT, PA-32R-301(SP), PA-32R-301 (HP), PA-32R-30 1T, PA-32-310XTC, PA-46-350P 58
True Flight Holdings AA-5, AA-5A, AA-5B, AG-5B 58

Specifications

  • Type: Sealed
  • Volts : 24
  • Weight 30 lbs
  • Electrolyte: Not Needed
  • Capacity: 1 Hr (C1) 16
  • lpp: 30 Min (2C) 25
  • lpr:
  • Description: Aircraft Battery
  • TSO Authorized: Yes
  • FAA-PMA: Yes

Benefits

  • Higher Capacity (16Ah). 23% greater than the G243S (13Ah), and 60% greater than the G-243 (10Ah)
  • Faster starts
  • Charge Recovery time (after engine has started) is twice as fast.
  • Best Shelf life in Lead-Acid Chemistry.
  • 2 year Warranty

Documents & Warranty

Reviews

Submit a Review

Very expensive

Odd N Verified Purchase

Gill 7243-16 Sealed Vrla Battery
March 19, 2024

Prompt delivery!

Anthony E Verified Purchase

Gill 7243-16 Sealed Vrla Battery
November 2, 2022

The best price I could find, and it works great.

Gregory H Verified Purchase

Gill 7243-16 Sealed Vrla Battery
November 1, 2022

product was promptly delivered as ordered, even though, no fault of Aircraft Spruce, the battery was way overpriced.

Mark R Verified Purchase

Gill 7243-16 Sealed Vrla Battery
October 27, 2022

Quick delivery. Thank You

Ryan R Verified Purchase

Gill 7243-16 Sealed Vrla Battery
November 26, 2021

Quick delivery. Thank You

Ryan R Verified Purchase

Gill 7243-16 Sealed Vrla Battery
November 25, 2021

Easy to install. It should be years before I know the longevity of the battery.

Theodore A Verified Purchase

Gill 7243-16 Sealed Vrla Battery
September 16, 2021

Fast ship to Europe abt USD 150 👍👌

Odd N
June 13, 2019

Order specified a battery date code condition and they did not follow instructions. Battery had small area of damage. They did price match and ship quickly.

John
August 24, 2019

The battery purchased is a replacement for another battery of the same model that lasted barely a year. The battery is terribly overpriced if the only last a year.

Bruce S
December 30, 2019

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Gill 7243Ah Sealed VRLA battery a gel type battery?

No, this is a valve regulated lead acid (VRLA) battery. It is NOT gel type.

Q: Is the Gill LT 7243-16Ah a 24 volt battery?

Yes, this is a 24V battery.

Q: What is the weight of this Gill LT 7243-16Ah battery?

Per Gill: 30 lbs.

Q: Is the vent on top of the battery sealed? For the installation of 7243-16, do I need to consider add a drain tube or vent pipe?

This is a sealed battery, per Gill, there is no need to run a vent.

Q: Is the Gill 7243-16 a suitable alternative for the Gill 7243-14? Battery will be installed in a 2003 Cessna T182T.

Yes the 7243-16 can be used in your aircraft.

Q: What is the CCA on the Gill 7243-16 sealed battery?

300 amps
