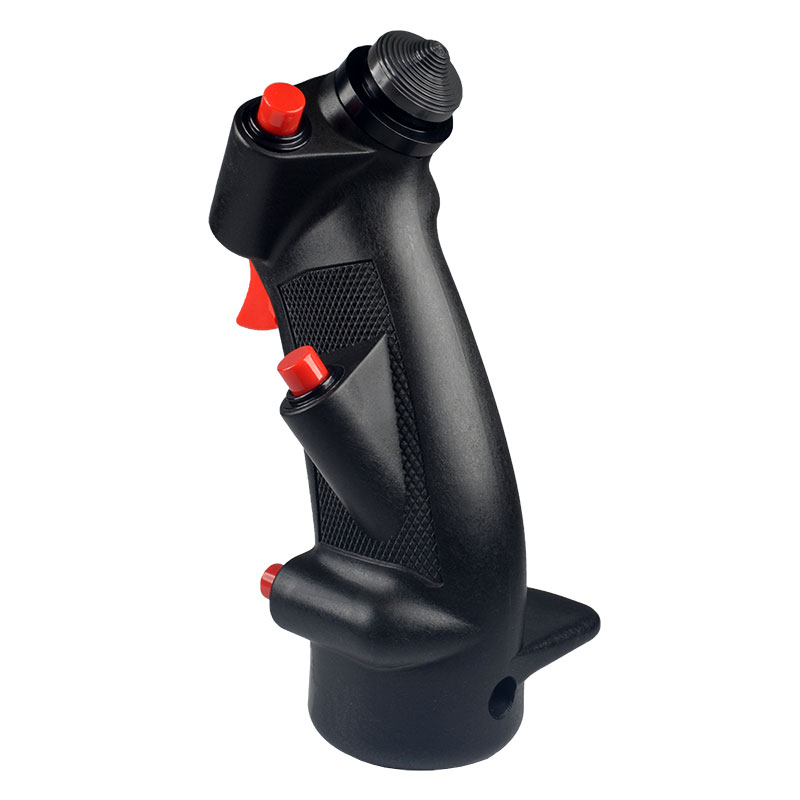

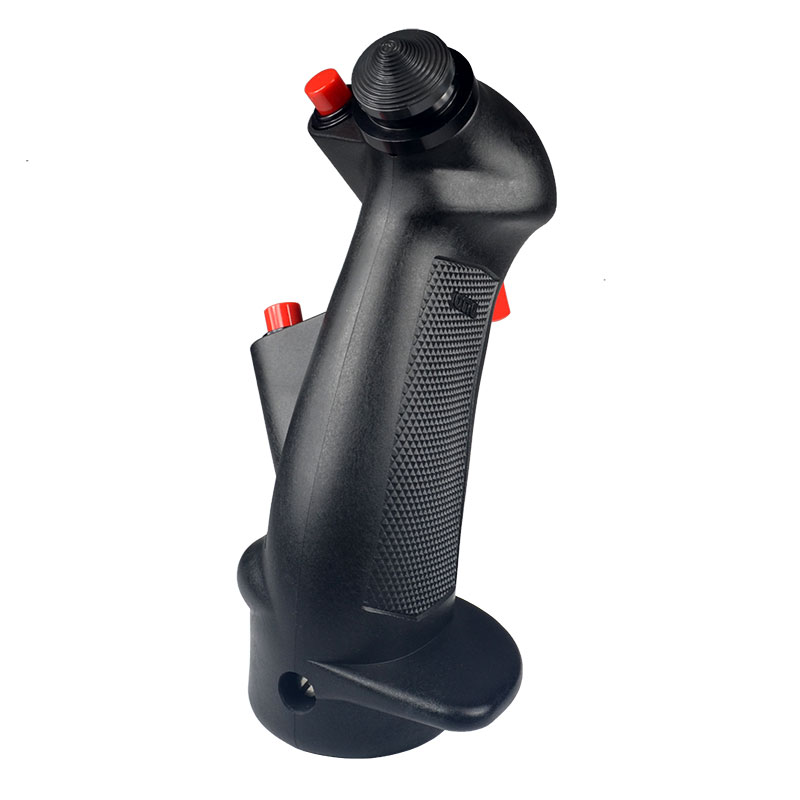

Otto Pistol Grip Kit

$867.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-00751
MFR Model# G2-0048

Overview

Otto Controls has been making the switches used in a majority of military and commercial flight grips manufactured for the last 40 years. Otto has evolved from a switch supplier into a major gri supplier with flight grips in numerous military and commercial aircraft. These rugged grips are the same as our military qualified grips but without the expensive threaded connector. Grips have a 1.15"ID which can be adapted to a 3/4" or 7/8" joystick with separate sleeves sold below.

Note: Made in accordance with MIL-DTL-25561.

Specifications

OTTO TDS

Reviews

Used to replace the existing Bell 206 cyclic grip. Easy installation with a great assortment of electrical switches for accessory operation.

David I
September 9, 2018

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there a left hand version of this?

Per the manufacturer, there is no left hand version available.

Q: Can you confirm if the trigger switch on grip 11-00751 has a double detent for ICS/Radio function?

Yes, the trigger switch on grip 11-00751 is a double detent.

Q: Does the Otto Pistol Grip Kit (part # 11-00751) come furnished with switches and trim hat?

Yes, all switches and trim hat are included.

Q: How long is the wiring coming out of the bottom of the stick for wiring into the airplane?

There is no wiring coming out the bottom of the grip. The buttons / triggers have terminals that will need to be wired into the aircraft. Wire must be purchased separately.

Q: YOU OFFER A PRESS FIT SWITCH PN 11-00745, IS THIS NORM OPEN OR NORM CLOSED?

It is normally open.

Q: Does this come with the mic and push button switches?

It comes with the buttons, switches, and hardware.
