Whelen Recognition Lights - 70346 Series

From $71.75 to $93.95
Prices below incude GST
Part No. Description Price Buy
70346-00
Recognition Light (14V No Lens)$78.93
Quantity
70346-01
Recognition Light (28V No Lens)$103.35
Quantity
70346-02
Recognition Light (14V Clear Lens)$103.13
Quantity
70346-03
Recognition LIght (28V Clear Lens)$102.03
Quantity
70346-04
Recognition Light (14V Optic Lens)$102.03
Quantity
70346-05
Recognition light (28V Optic Lens)$98.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

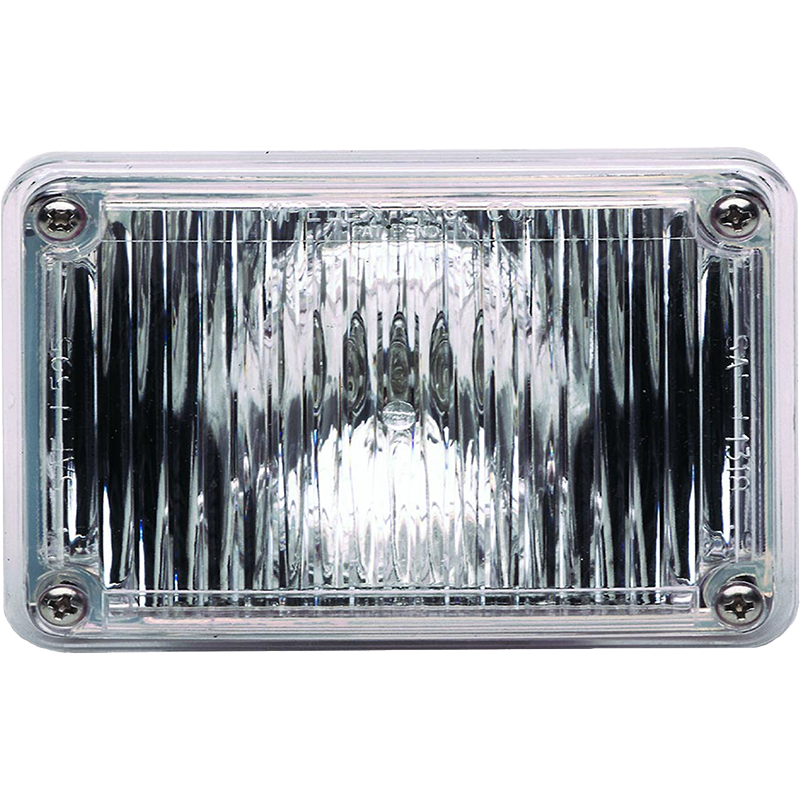

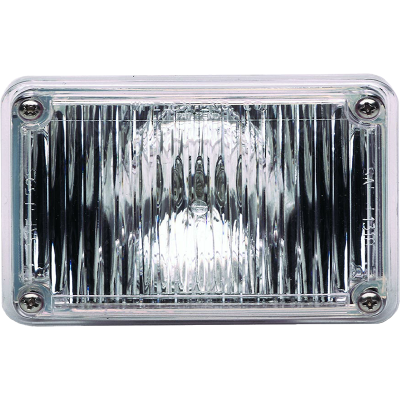

Recognition/Landing light assembly which produces up to 80,000 beam candle power using only a 35 watt lamp. Available with an optic spreader lens for taxiing, a clear lens for spot or without a lens for custom applications.

Specifications

  • Weight without Lens: 0.16 lbs.
  • Width: 4.25
  • Height: 3.0
  • Depth: 2.9h
  • Weight with Lens: 0.28 lbs.
  • Power Consumption: 2.5 amps @ 14 VDC, 1.25 amps @ 28 VDC
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you please tell me the difference in recognition lights 70346-00 and 70346-04? Specifically, is the -04 model brighter? Thank you

The -00 does not have a lens and the -04 has a lens. No other difference.

Q: Can you please tell me the difference in recognition light 70346-02 and 70546-04? which one is brighter?

One has a optic lens that spreads the beam for taxing, and the other clear lens is use for spot lights(landing.) The light, bulb and brightness will be the same for both units.

Q: Is the Whelen 70346 series an LED light?

No, these are not LED.

Q: Is there an LED replacement option for this light?

Whelen recommends our part number 11-11189 as a LED replacement.

Q: Is the bulb separate from the fixture? if so what is bulb P/N?

The bulb is potted in this assembly, it cannot be replaced.
